ID
1316869
$ 4,990.20
1-2 weeks delivery time
-
+
The Koshin SEH-100X is a robust ballast pump built for heavy-duty shipping and construction tasks, equipped with a strong 4-stroke HONDA petrol engine. It efficiently pumps slightly contaminated water with flow rates up to 72,000 litres per hour at 10 meters head and offers about 2.5 hours runtime on a 5.3-litre fuel tank. The pump has a 4" connection, weighs 59 kg, and a maximum discharge head of 28 meters.
- Description
- Ask a Question
-

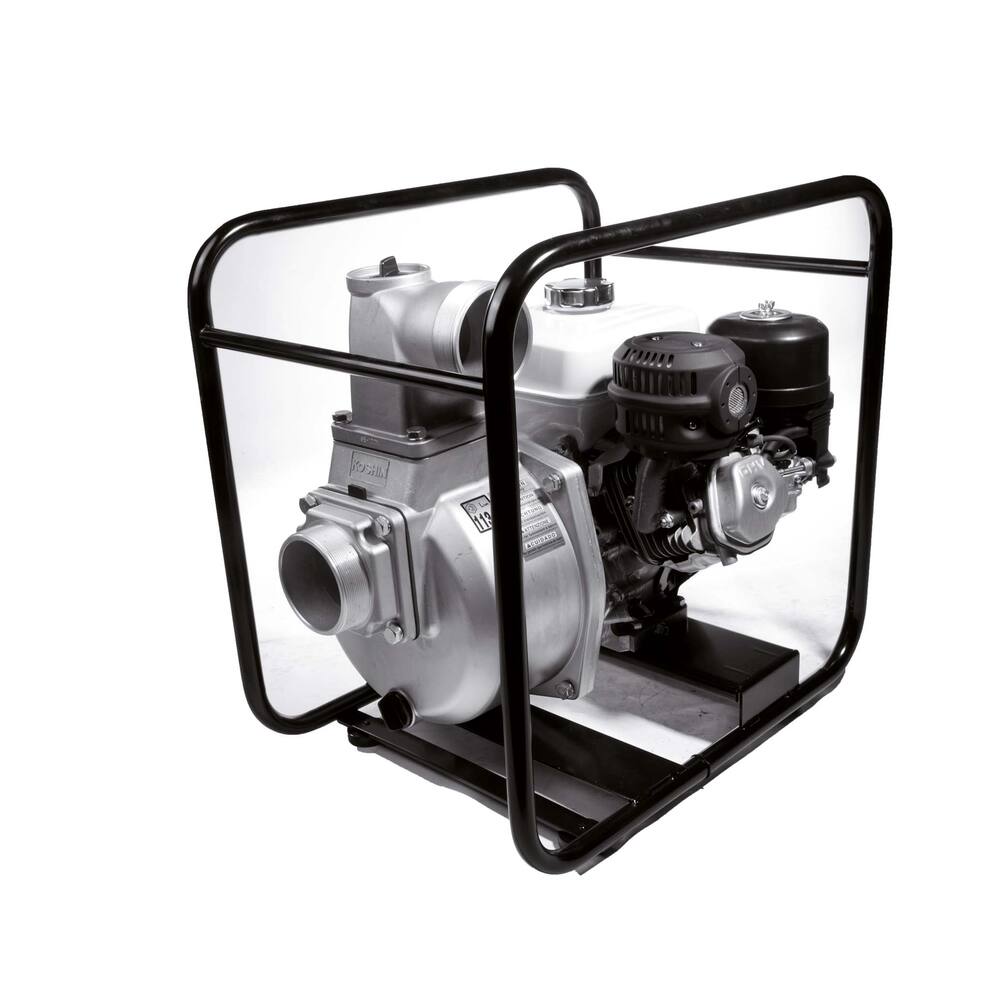

Koshin SEH-100X - 4-Stroke Honda Pump 4"
The Koshin SEH-100X is a robust ballast pump built for heavy-duty tasks in shipping and construction. Featuring a strong 4-stroke HONDA petrol engine, it efficiently pumps slightly contaminated water, ensuring high performance and durability.
- Type: SE
- Colour: black
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: 4 stroke HONDA petrol engine
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material impeller housing: cast iron
- Material pump housing: aluminium
- Material pump shaft: stainless steel
- Liquids: slightly contaminated water
- Performance at various heads:
- 10 metres head: 72,000 litres per hour
- 15 metres head: 63,000 litres per hour
- 20 metres head: 54,000 litres per hour
- 25 metres head: 27,000 litres per hour
- Dimensions (LxWxH): 680 x 487 x 684 mm
- Weight: 59 kg
- Motor type: HONDA, GX240, 4 stroke engine, E5 petrol
- Shaft power: 4.41 kW (6.0 hp) at 3600 rpm; 5.29 kW (7.2 hp) at 4000 rpm
- Tank volume: 5.3 litres, approx. 2.5 hours runtime
- Product code: 94.05.299
- Connection: 4" outer thread
- Suction head: 7.0 m
- Pipe diameter pressure: 4"
- Pipe diameter suction: 4"
- Pump type: Motor pump, Toothed wheel pump
- Medium: Water
- Particle size: 3 mm
- Max discharge head: 28.0 m
- Fuel: Petrol
- Free flow: 90,000 L/hour
- Capacity at 5 metres: 81,000 L/hour
-
