ID
1316864
$ 882.92
1-2 weeks delivery time
-
+
The Koshin SEV-25L is a sturdy ballast pump designed for shipping and construction, featuring a self-priming centrifugal pump with an open impeller powered by a 2-stroke KOSHIN petrol engine. It handles slightly contaminated water and delivers flow rates from 5,220 l/h at 10 m head to 750 l/h at 30 m head. The pump has cast iron impeller and housing, aluminium pump housing, and stainless steel shaft, weighs 6 kg, and runs approximately 50 minutes on a 0.6-litre fuel tank.
- Description
- Ask a Question
-

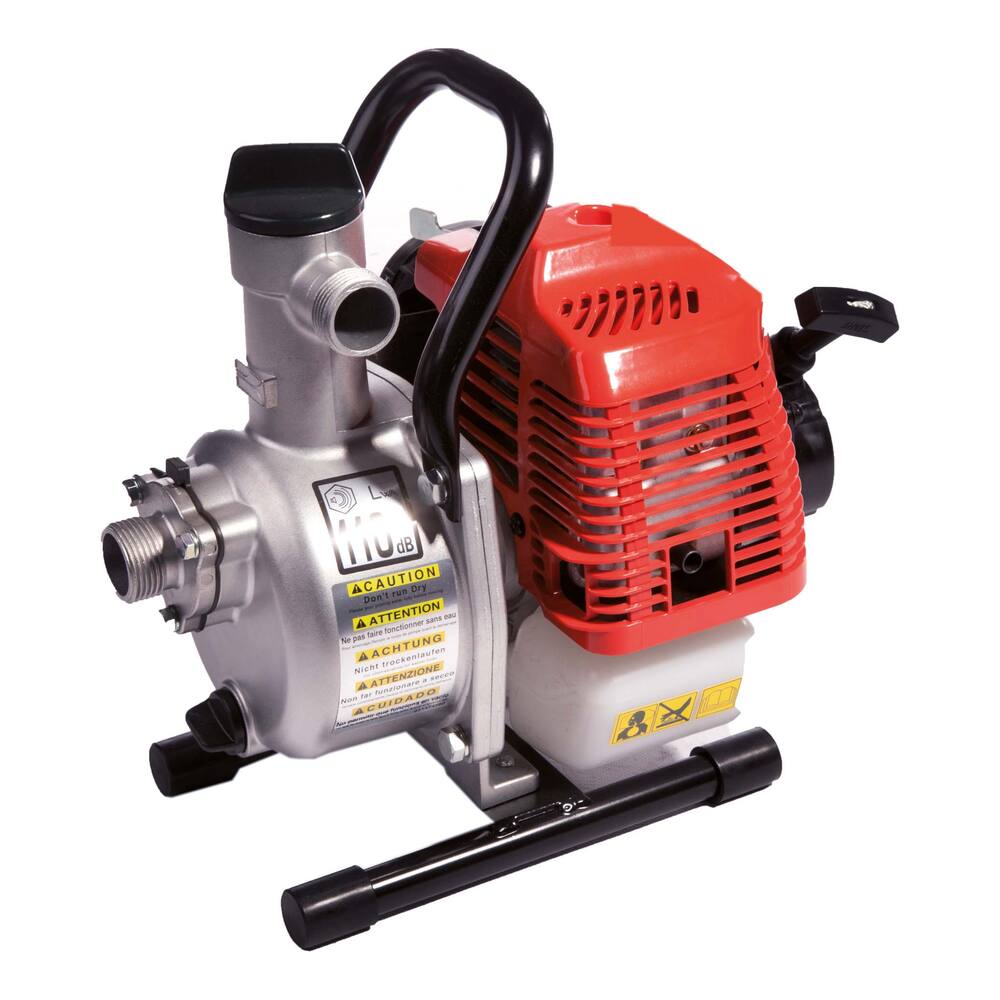

Koshin SEV-25L - 2-Stroke Koshin Pump 1"
This sturdy ballast pump is designed for use in shipping and construction environments. It features a self-priming centrifugal pump mechanism with an open impeller and is powered by a 2-stroke KOSHIN petrol engine. The pump handles slightly contaminated water efficiently.
- Type: SE
- Colour: orange
- Impeller type: open impeller
- Motor type: 2 stroke KOSHIN petrol engine (KC26, mixed lubrication 1:50)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller & housing: cast iron
- Pump housing: aluminium
- Pump shaft: stainless steel
- Liquids: slightly contaminated water
- Performance at head heights:
- 10 m: 5,220 l/h
- 15 m: 4,500 l/h
- 20 m: 3,600 l/h
- 25 m: 2,300 l/h
- 30 m: 750 l/h
- Dimensions (L×W×H): 330 × 280 × 330 mm
- Weight: 6 kg
- Tank capacity: 0.6 litres (approx. 50 minutes runtime)
- Shaft power: 0.68 kW (0.93 hp) at 7500 rpm
- Product code: 94.05.130
- Connection: 1" outer thread
- Suction head: 7.0 m
- Pipe diameter (pressure & suction): 1"
- Pump type: Motor pump, Toothed wheel pump
- Medium: Water with particle size up to 2 mm
- Maximum discharge head: 32.0 m
- Fuel: Petrol
- Free flow: 6600 L/hour
- Capacity at 5 meter head: 6600 L/hour
-
