ID
1316863
$ 9,416.01
1-2 weeks delivery time
-
+
The Koshin SERH-50BDHR 20 is a high-pressure diesel-powered engine pump ideal for jet washing, overhead irrigation, firefighting, and emergency use on passenger ships. It features a powerful 4-stroke Hatz diesel engine and a self-priming centrifugal pump that handles clean to slightly contaminated water with flow rates up to 20,400 litres per hour at 10 meters head. The pump has a 2" connection, weighs 55 kg, offers about 3 hours runtime on a 3.2-litre fuel tank, and a maximum discharge head of 45 meters.
- Description
- Ask a Question
-

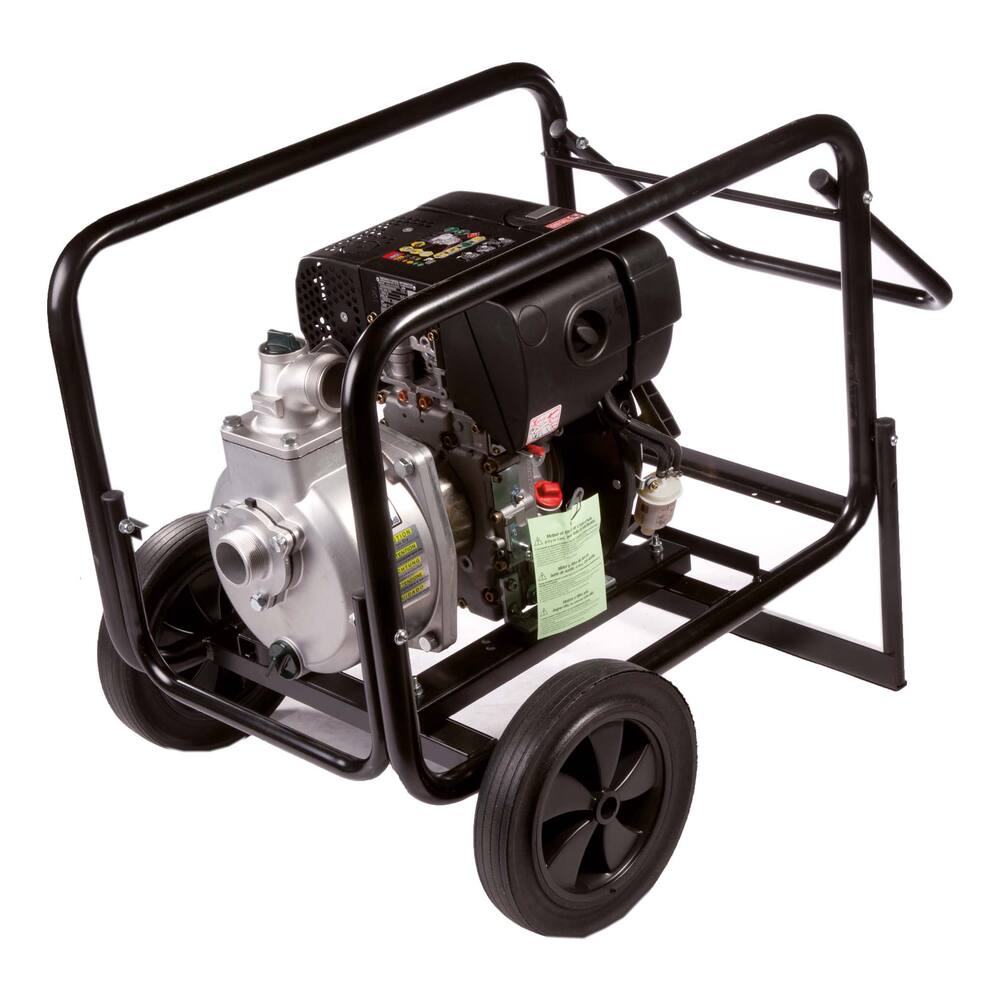

Koshin SERH-50BDHR 20 - High Pressure Diesel Powered Engine Pump
Ideal for high-pressure needs such as jet washing holds, overhead irrigation, firefighting services, and emergency use on passenger ships, this pump is equipped with a powerful 4-stroke Hatz diesel engine and a self-priming centrifugal pump designed to handle clean to slightly contaminated water efficiently.
- Type: SERH-50BDHR
- Colour: orange
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: 4 stroke Hatz diesel engine
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material impeller housing: cast iron
- Material pump housing: aluminium
- Material pump shaft: stainless steel
- Liquids: clean to slightly contaminated water
- Flow rates by head:
- 10 m head: 20,400 litres/hour
- 15 m head: 18,000 litres/hour
- 20 m head: 16,200 litres/hour
- 25 m head: 13,800 litres/hour
- 30 m head: 11,400 litres/hour
- 35 m head: 8,400 litres/hour
- 40 m head: 4,800 litres/hour
- Dimensions (LxWxH): 800 x 680 x 710 mm
- Weight: 55 kg
- Tank capacity: 3.2 litres, approx. 3.0 hours runtime
- Motor: HATZ 1B20, 4 stroke diesel engine
- Shaft power: 3.52 kW (4.8 hp) at 3600 rpm
- Product code: 94.21.050
- Connection: 2" outer thread
- Suction head: 7.0 m
- Pipe diameter (pressure & suction): 2"
- Pump type: Motor pump and toothed wheel pump
- Medium: Water
- Particle size: 3 mm
- Discharge head Max.: 45.0 m
- Fuel: Diesel
- Free flow: 22,800 L/hour
- Capacity at 5 m: 22,200 L/hour
-
