ID
1316868
$ 1,747.23
1-2 weeks delivery time
-
+
The Koshin SEH-80XF pump provides a sturdy and efficient solution for ballast pumping in shipping and construction, powered by a 4-stroke HONDA petrol engine. It manages slightly contaminated water with flow rates up to 42,000 litres per hour at 10 meters head and runs approximately 2 hours and 10 minutes on a 3.1-litre fuel tank. The pump features a 3" connection, weighs 34 kg, and has a maximum discharge head of 26 meters.
- Description
- Ask a Question
-

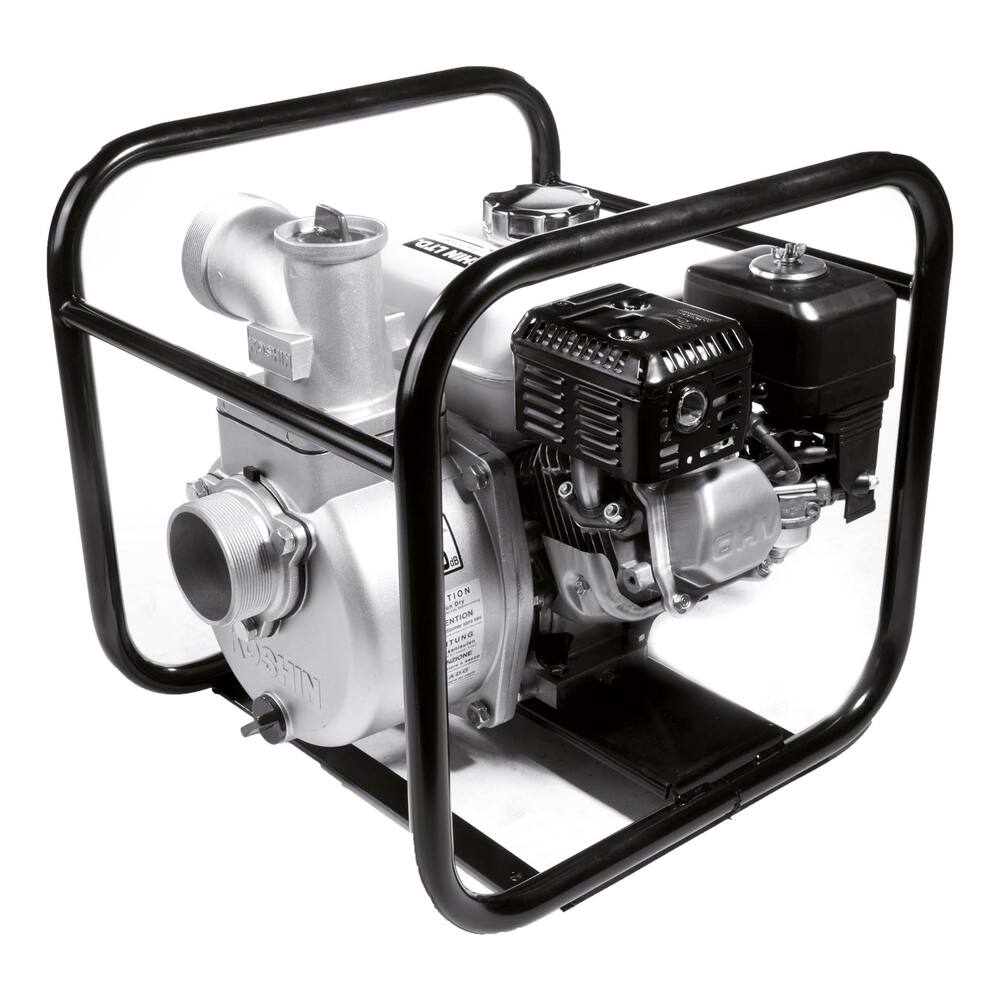

Koshin SEH-80XF - 4-Stroke Honda Pump 3"
The Koshin SEH-80XF pump provides a sturdy and efficient solution for ballast pumping in shipping and construction. Equipped with a powerful 4-stroke HONDA petrol engine, it handles slightly contaminated water with ease and reliability.
- Type: SE
- Colour: black
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: 4 stroke HONDA petrol engine
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material impeller housing: cast iron
- Material pump housing: aluminium
- Material pump shaft: stainless steel
- Liquids: slightly contaminated water
- Performance at various heads:
- 10 metres head: 42,000 litres per hour
- 15 metres head: 36,000 litres per hour
- 20 metres head: 27,000 litres per hour
- 25 metres head: 9,000 litres per hour
- Dimensions (LxWxH): 525 x 399 x 476 mm
- Weight: 34 kg
- Motor type: HONDA, GX160, 4 stroke engine, E5 petrol
- Shaft power: 2.79 kW (3.8 hp) at 3600 rpm; 4.04 kW (5.5 hp) at 4000 rpm
- Tank volume: 3.1 litres, approx. 2 hours and 10 minutes runtime
- Product code: 94.05.280
- Connection: 3" outer thread
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Motor pump, Toothed wheel pump
- Medium: Water
- Particle size: 3 mm
- Max discharge head: 26.0 m
- Fuel: Petrol
- Free flow: 54,000 L/hour
- Capacity at 5 metres: 49,500 L/hour
-
