ID
1316866
$ 1,849.68
1-2 weeks delivery time
-
+
The Koshin SEH-25H is a robust ballast pump ideal for shipping and construction, equipped with a self-priming centrifugal pump with an open impeller and powered by a 4-stroke HONDA petrol engine. It handles slightly contaminated water with high flow rates ranging from 7,900 l/h at 10 m head to 1,800 l/h at 40 m head. The pump has cast iron impeller and housing, aluminium pump housing, stainless steel shaft, weighs 12.5 kg, and runs approximately 50 minutes on a 0.77-litre fuel tank.
- Description
- Ask a Question
-

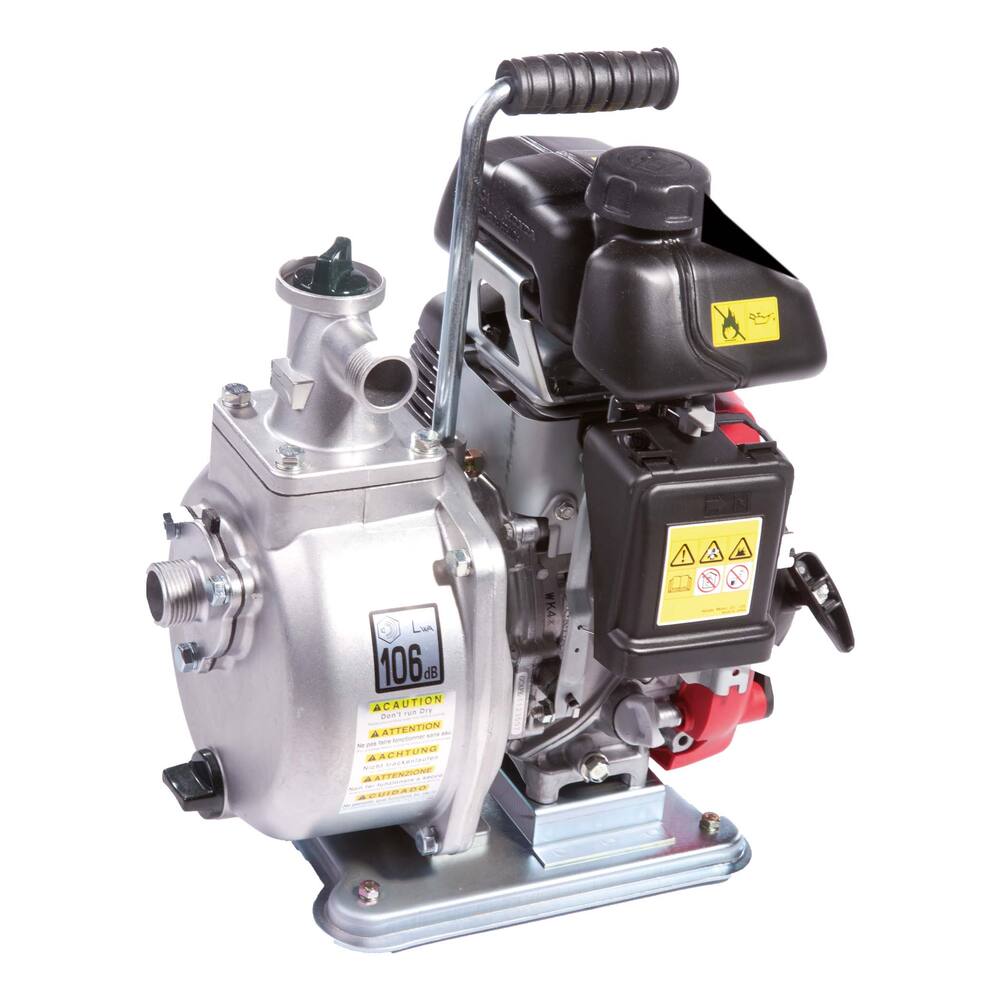

Koshin SEH-25H - 4-Stroke Honda Pump 1"
This robust ballast pump is ideal for shipping and construction, featuring a self-priming centrifugal pump with an open impeller and powered by a 4-stroke HONDA petrol engine. It offers high flow rates for slightly contaminated water applications.
- Type: SE
- Colour: black
- Impeller type: open impeller
- Motor type: 4 stroke HONDA petrol engine (GXH50, 49.4 cc, E5 petrol)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller & housing: cast iron
- Pump housing: aluminium
- Pump shaft: stainless steel
- Liquids: slightly contaminated water
- Performance at head heights:
- 10 m: 7,900 l/h
- 15 m: 7,800 l/h
- 20 m: 7,300 l/h
- 25 m: 6,400 l/h
- 30 m: 5,200 l/h
- 35 m: 3,600 l/h
- 40 m: 1,800 l/h
- Dimensions (L×W×H): 390 × 326 × 473 mm
- Weight: 12.5 kg
- Tank volume: 0.77 litres (approx. 50 minutes runtime)
- Shaft power: 1.76 kW (2.4 hp) at 7000 rpm
- Product code: 94.05.225
- Connection: 1" outer thread
- Suction head: 7.0 m
- Pipe diameter (pressure & suction): 1"
- Pump type: Motor pump, Toothed wheel pump
- Medium: Water with particle size up to 2 mm
- Maximum discharge head: 43.0 m
- Fuel: Petrol
- Free flow: 8100 L/hour
- Capacity at 5 meter head: 8100 L/hour
-
