ID
1316861
$ 2,039.67
1-2 weeks delivery time
-
+
The Koshin SEV-50D diesel pump is engineered for demanding environments like mining, shipboard operations, firefighting, and construction, featuring a self-priming centrifugal pump driven by a 4-stroke forced air cooled diesel engine. It handles clear water with flow rates up to 31,200 litres per hour at 10 meters head and runs about 2.3 hours on a 3-litre fuel tank. The pump has a 2" connection, weighs 46.1 kg, and a maximum discharge head of 32 meters.
- Description
- Ask a Question
-

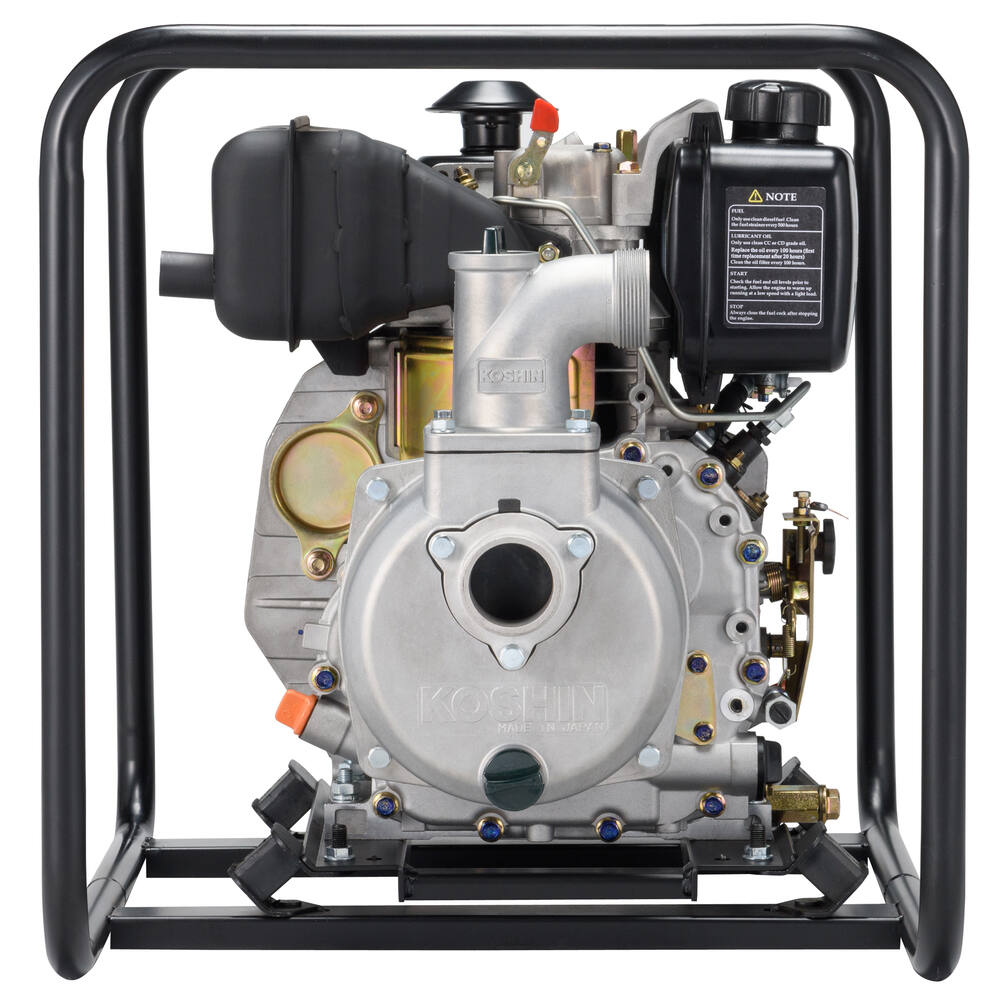

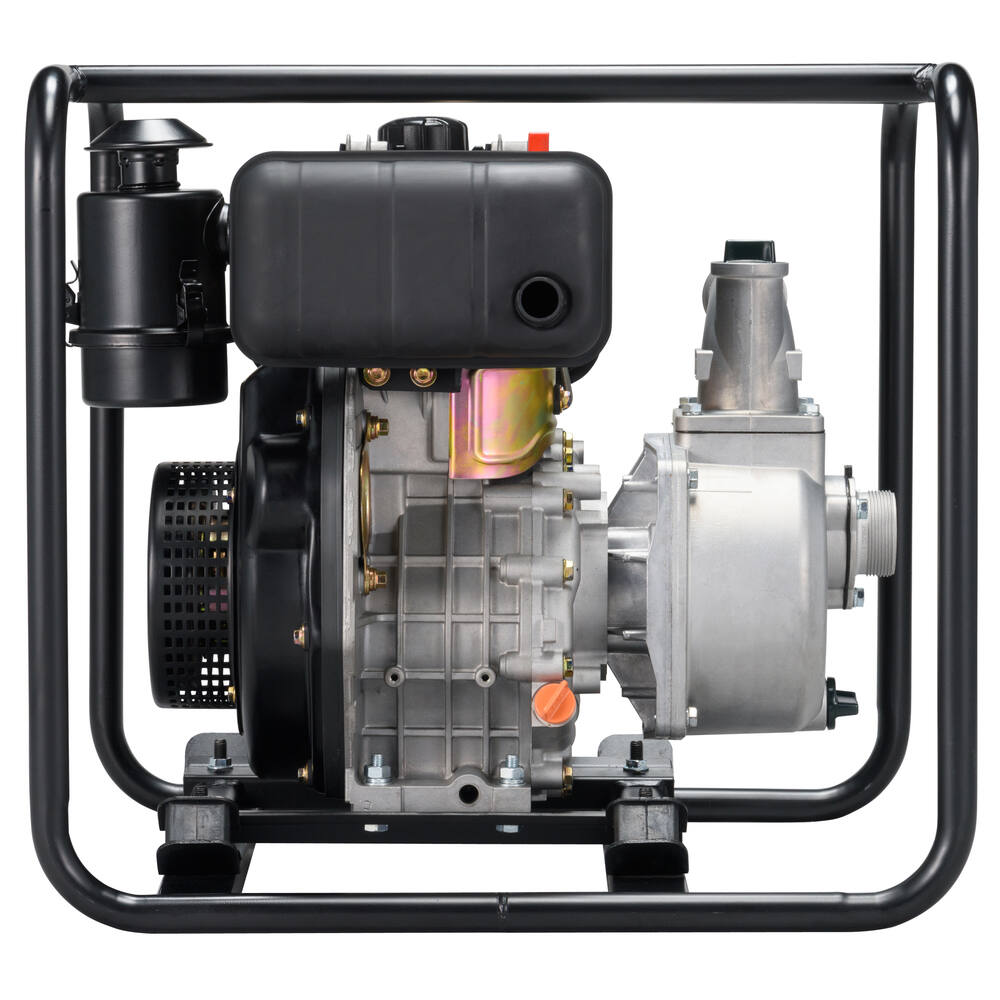

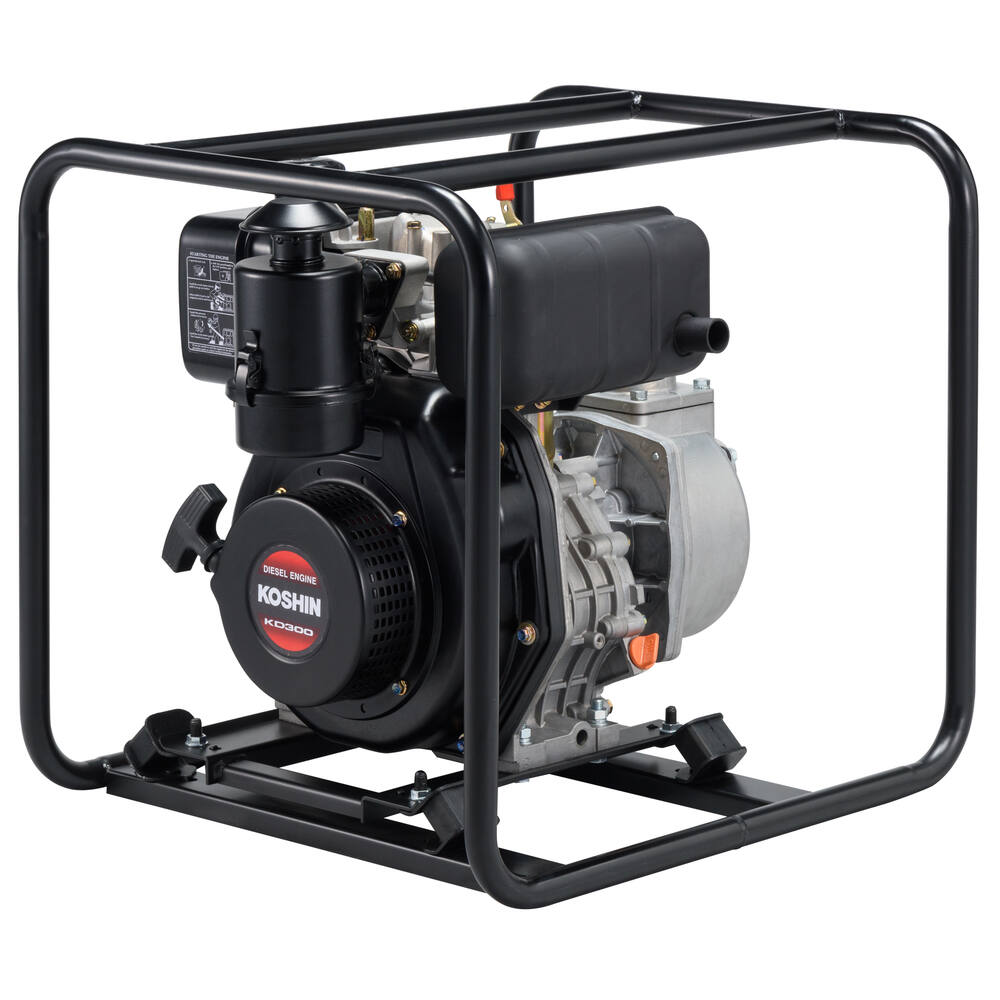

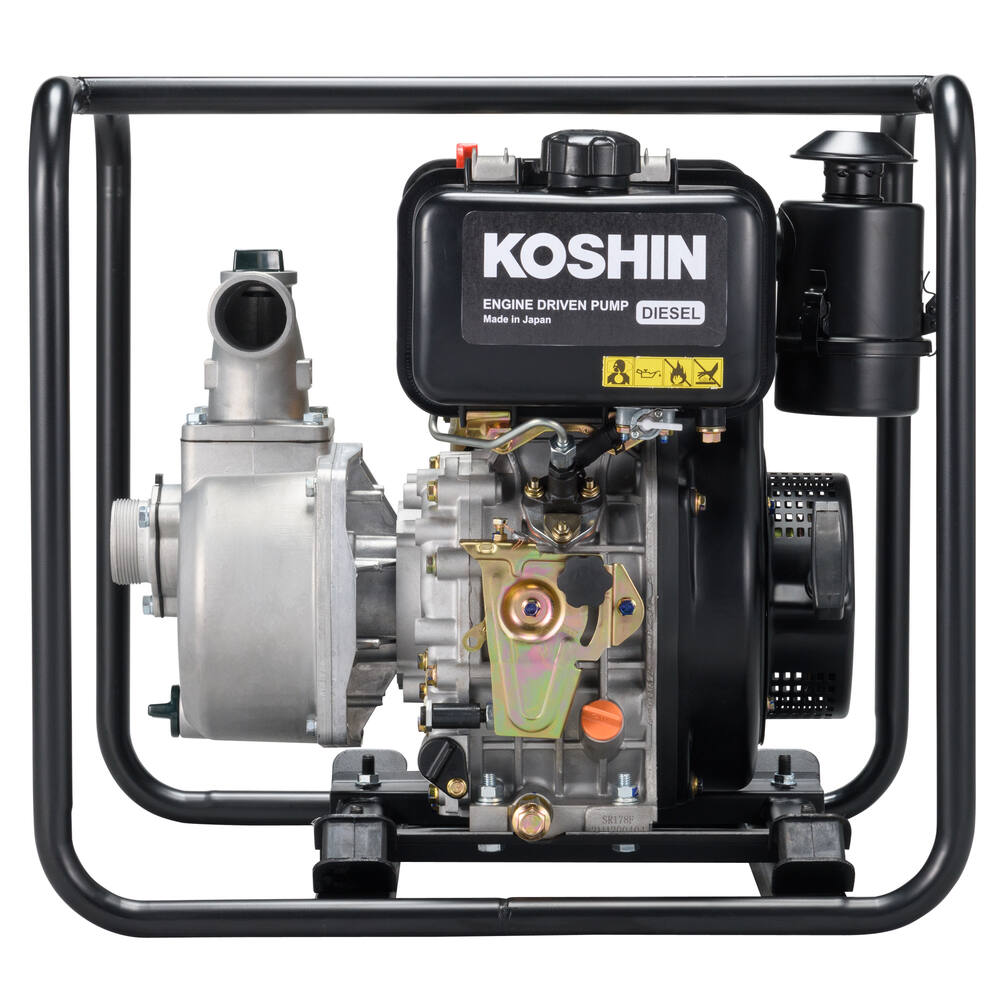

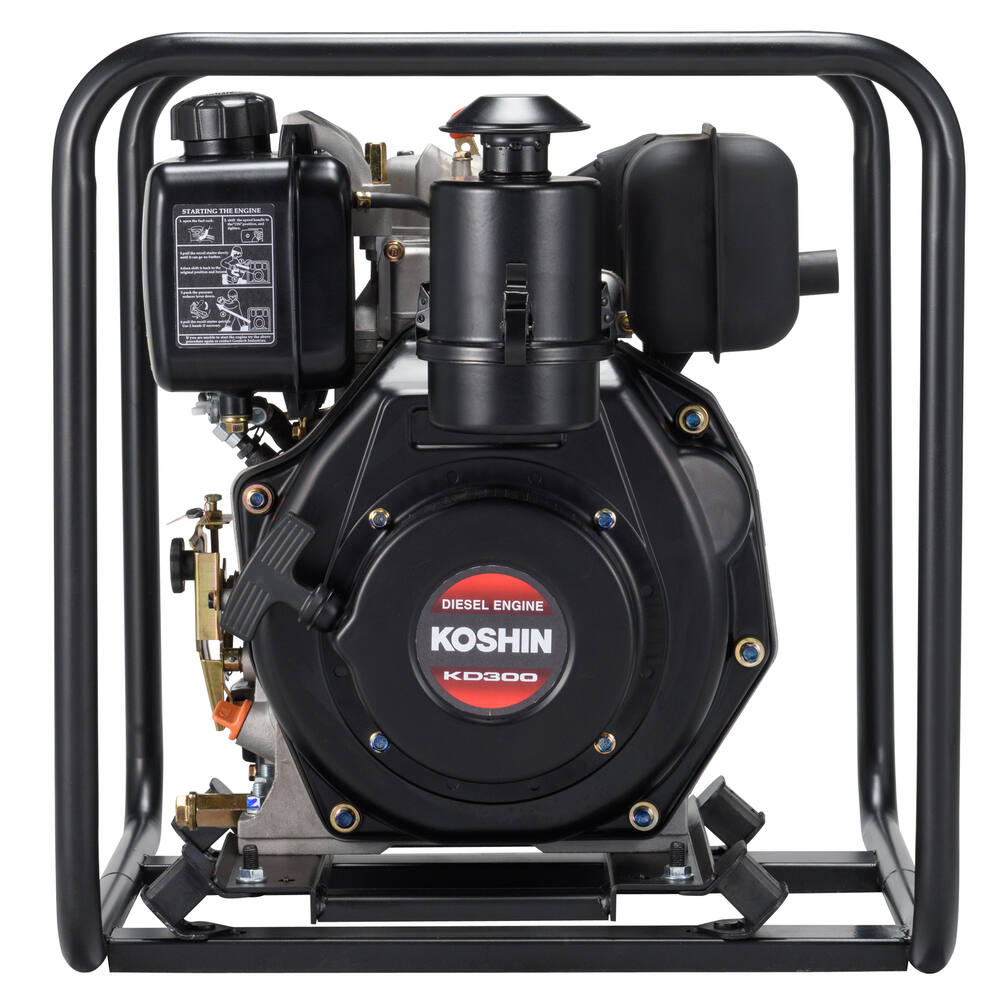

Koshin SEV-50D - Diesel Pump KD300 2"
This diesel pump is engineered for demanding environments such as mining, shipboard operations, fire-fighting, and construction sites. It features a robust self-priming centrifugal pump driven by a 4-stroke forced air cooled diesel engine, ensuring reliable performance with clear water.
- Type: SEV-50D
- Colour: black
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: 4 stroke forced air cooled diesel engine
- Shaft seal: SiC (Silicon Carbide) mechanical seal
- Material impeller: cast iron FC200
- Material impeller housing: cast iron FC200
- Material pump housing: aluminum-alloy die casting
- Material pump shaft: chromium steel
- Liquids: clear water
- Flow rates by head:
- 10 m head: 31,200 litres/hour
- 15 m head: 25,200 litres/hour
- 20 m head: 19,200 litres/hour
- 25 m head: 9,000 litres/hour
- 30 m head: 6,600 litres/hour
- Dimensions (LxWxH): 600 x 520 x 550 mm
- Weight: 46.1 kg
- Tank capacity: 3 litres, approx. 2.3 hours runtime
- Motor: Stage 5, Koshin KD300, 4 stroke diesel engine
- Shaft power: 4.0 kW (5.4 hp) at 3600 rpm
- Product code: 94.20.150
- Connection: 2" outer thread
- Suction head: 8.0 m
- Pipe diameter (pressure & suction): 2"
- Pump type: Motor pump and toothed wheel pump
- Medium: Water
- Discharge head Max.: 32.0 m
- Fuel: Diesel
- Free flow: 37,800 L/hour
- Capacity at 5 m: 36,600 L/hour
-
