The Koshin SEH-50X is a durable ballast pump designed for demanding shipping and construction applications, featuring a reliable 4-stroke HONDA petrol engine and robust cast iron and aluminium construction. It handles slightly contaminated water with flow rates up to 28,500 litres per hour at 10 meters head and offers a runtime of about 2 hours on a 2.0-litre fuel tank. The pump has a 2" connection, weighs 24 kg, and delivers a maximum discharge head of 30 meters.
- Description
- Ask a Question
-

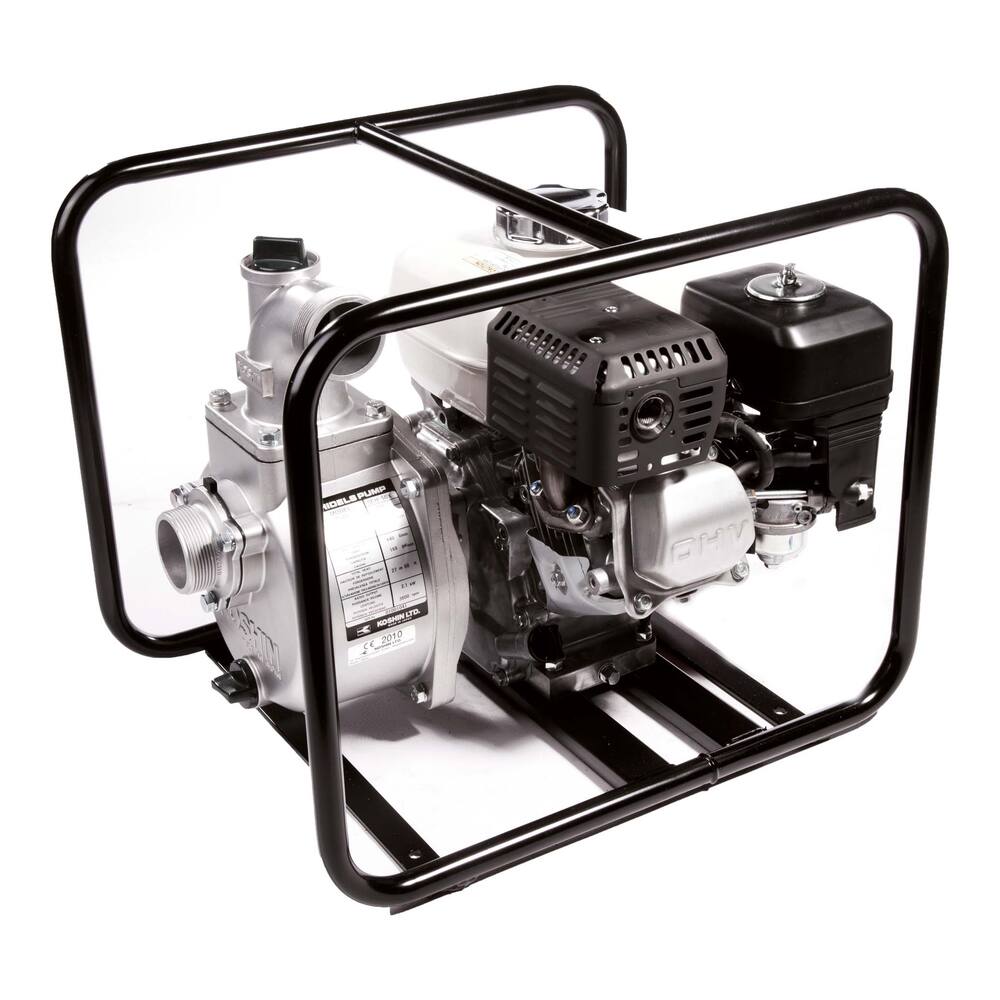

Koshin SEH-50X - 4-Stroke Honda Pump 2"
The Koshin SEH-50X is a durable ballast pump designed for demanding applications such as shipping and construction. It features a reliable 4-stroke HONDA petrol engine and robust materials to handle slightly contaminated water efficiently.
- Type: SE
- Colour: black
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: 4 stroke HONDA petrol engine
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material impeller housing: cast iron
- Material pump housing: aluminium
- Material pump shaft: stainless steel
- Liquids: slightly contaminated water
- Performance at various heads:
- 10 metres head: 28,500 litres per hour
- 15 metres head: 24,000 litres per hour
- 20 metres head: 18,000 litres per hour
- 25 metres head: 10,800 litres per hour
- Dimensions (LxWxH): 506 x 402 x 421 mm
- Weight: 24 kg
- Motor type: HONDA, GX120, 4 stroke engine, E5 petrol
- Shaft power: 2.06 kW (2.8 hp) at 3600 rpm; 2.94 kW (4.0 hp) at 5000 rpm
- Tank volume: 2.0 litres, approx. 2 hours runtime
- Product code: 94.05.250
- Connection: 2" outer thread
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Motor pump, Toothed wheel pump
- Medium: Water
- Particle size: 3 mm
- Max discharge head: 30.0 m
- Fuel: Petrol
- Free flow: 36,000 L/hour
- Capacity at 5 metres: 33,000 L/hour
-
