ID
1316871
$ 1,122.98
1-2 weeks delivery time
-
+
The Lowara Jet Pump BGM-5/A 230V is a compact stainless steel self-priming centrifugal pump with a jet system, designed for garden sprinkling, pressurization, and transporting mildly corrosive liquids in various environments including industry and healthcare. It has a closed stainless steel impeller, a 230 V induction motor with thermal safeguard, and delivers flow rates from 3,900 L/h at 10 m head to 120 L/h at 40 m head, with a maximum discharge head of 40.2 m and a suction head of 8 m.
- Description
- Ask a Question
-

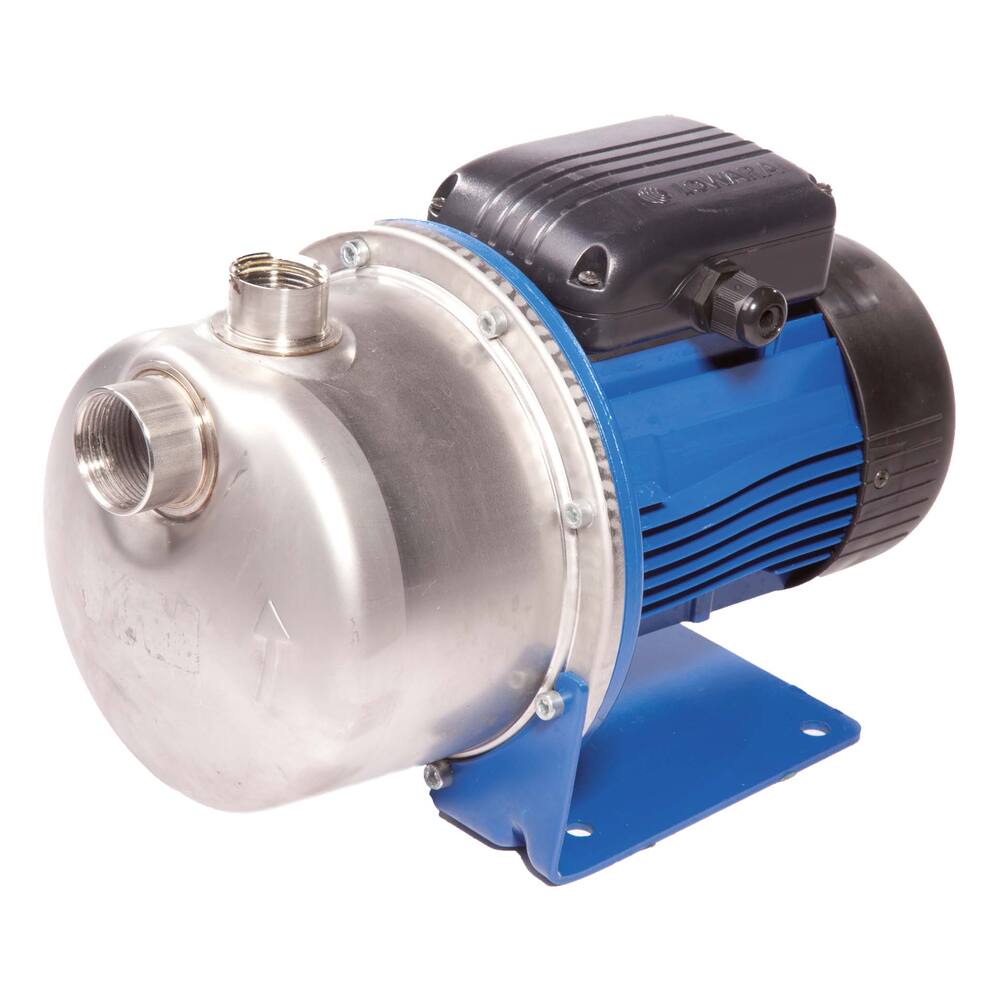

Lowara Jet Pump BGM-5/A 230V
The Lowara Jet Pump BGM-5/A 230V is a compact stainless steel self-priming centrifugal pump with jet system, suitable for garden sprinkling, pressurization, and transport of mildly corrosive liquids in various environments including industry and healthcare.
- Type: JET-BGM
- Colour: stainless steel
- Pump type: self-priming centrifugal pump with jet system
- Impeller type: closed impeller
- Motor type: induction motor with 230 V fuse and inbuilt thermal safeguard
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: stainless steel 304
- Material impeller chamber: stainless steel 304
- Material ejector: thermoplastic
- Material pump housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: clean low viscosity liquids without solids, max temperature 40°C
- Capacity at various heads:
- 10 m head: 3,900 L/h
- 15 m head: 3,900 L/h
- 20 m head: 3,240 L/h
- 25 m head: 2,400 L/h
- 30 m head: 1,560 L/h
- 35 m head: 840 L/h
- 40 m head: 120 L/h
- Connection discharge: 1" internal thread
- Connection suction: 1¼" internal thread
- Dimensions (L×W×H): 383 × 215 × 223 mm
- Weight: 12 kg
- Electrical amperage: 4.0 A
- Shaft power: 0.55 kW, 0.75 hp, 2800 rpm
- Used on Lowara BGM-5 pressurized water system (codes 97.37.010 and 97.37.020)
- Product code: 93.37.420
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1¼"
- Pump type: dry set-up, self-priming
- Medium: water
- Particle size max: 2 mm
- Max discharge head: 40.2 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 3,900 L/hour
- Capacity at 5 m: 3,900 L/hour
-
