The Grundfos KP 350.AV1 is a fully stainless steel submersible centrifugal pump designed for tough environments, featuring a vertical float switch for automatic operation. It handles slightly contaminated water with particles up to 10 mm, operates at 230V, and has a maximum submersion depth of 10 meters with a free flow rate of 13,380 liters per hour .
- Description
- Ask a Question
-

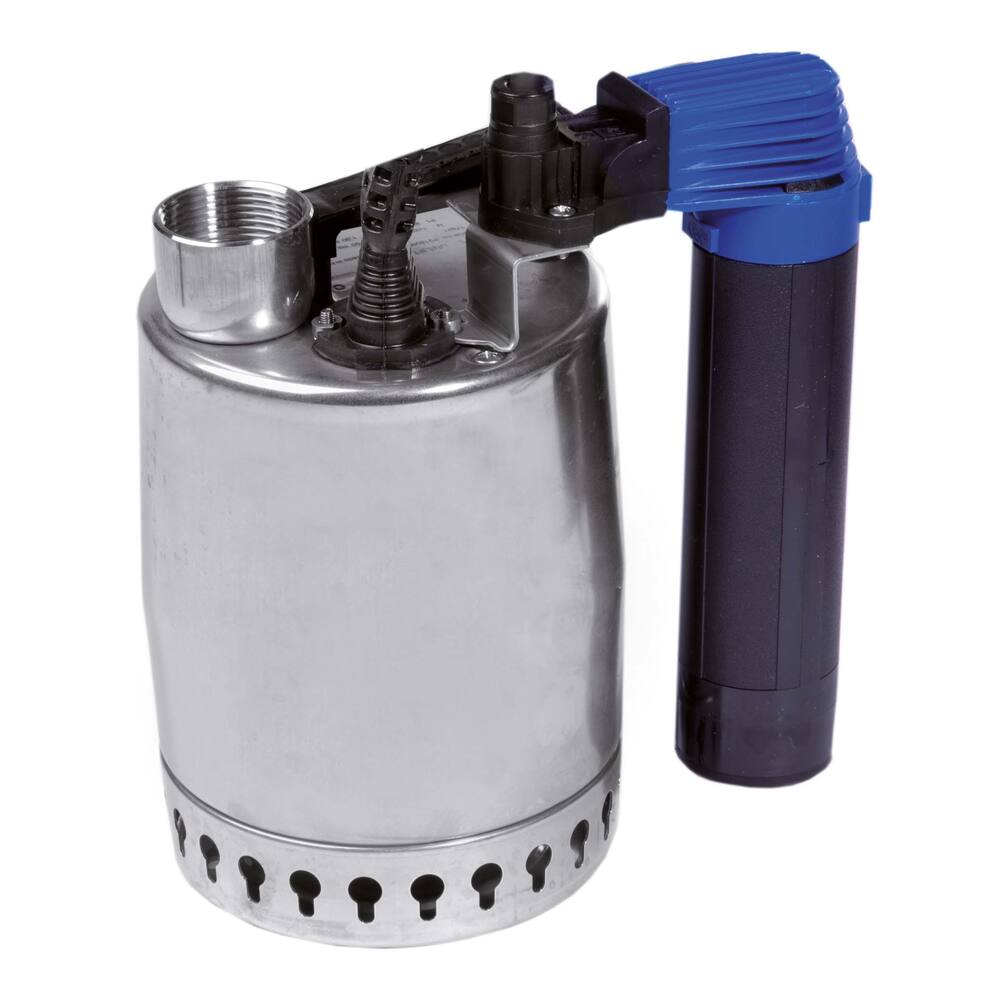

Grundfos KP 350.AV1 - Pump + Vertical Float 230V
This pump is a sturdy, fully stainless steel cylinder model designed for demanding environments such as shipping, construction, and industrial applications. It excels as a bilge and ballast pump, fully submersible and equipped with a vertical float switch for automatic operation.
- Type: KP
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: special liquid-filled motor
- Fuse: inbuilt thermal safeguard (230V version only)
- Shaft seal: NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, housing, motor housing: stainless steel 304
- Material pump shaft: steel
- Suitable liquids: slightly contaminated water and water with somewhat higher acidity, continuously at 50°C
- Minimum pumping level: 14 mm (without float)
- Maximum particle size: 10 mm (no sand or gravel)
- Connection: 1.1/4" internal thread
- Dimensions: diameter 149 mm, height 235 mm
- Weight: 7.5 kg
- Amperage: 4.0 A
- Shaft power: 0.37 kW, 0.5 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug and pump-side plug connection
- Switch levels with vertical float: start at 180 mm, stop at 110 mm
- Product code: 90.10.315
- EAN code: 5700393536548
- Pipe diameter pressure: 1.1/4"
- Discharge head max.: 9.0 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: Yes, vertical float
- Free flow: 13,380 L/hour
- Capacity at 5 meters: 9,000 L/hour
-
