ID
1316814
$ 1,533.01
1-2 weeks delivery time
-
+
The Grundfos KP 350.1 is a durable stainless steel submersible centrifugal pump ideal for shipping, construction, and industrial applications. It has a special liquid-filled motor, no float switch, and can pump slightly contaminated water with particles up to 10 mm. It operates at 230V with a maximum submersion depth of 10 meters and offers a free flow rate of 13,380 liters per hour .
- Description
- Ask a Question
-

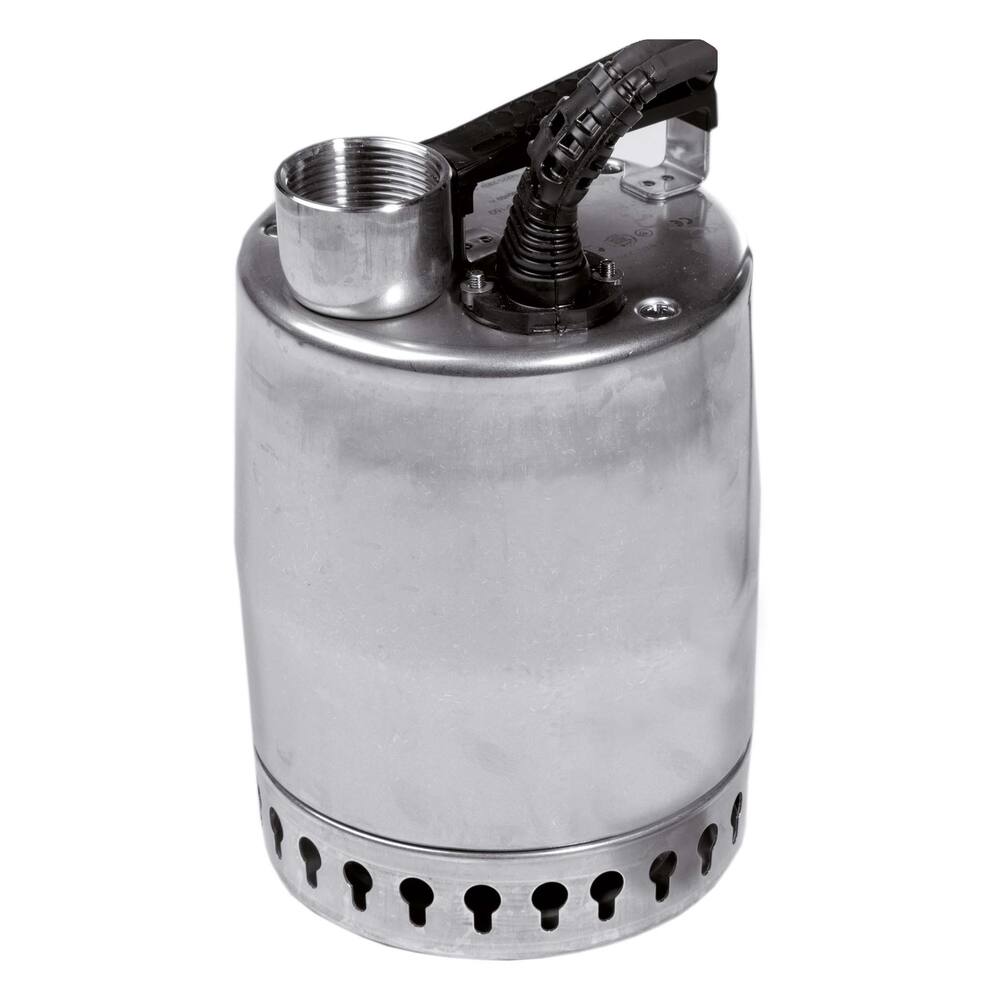

Grundfos KP 350.1 - Pump 230 Volt
This durable stainless steel cylinder pump is ideal for applications in shipping, construction, and industry. It features a completely submersible centrifugal design with a specialized liquid-filled motor for optimal bilge and ballast pumping.
- Type: KP
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: special liquid-filled motor
- Fuse: inbuilt thermal safeguard (230 V version only)
- Shaft seal: NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: steel
- Suitable liquids: slightly contaminated water, water with somewhat higher acidity, continuous temperature up to 50°C
- Minimum pumping size: 14 mm (without float)
- Maximum particle size: 10 mm, no sand or gravel
- Connection: 1.1/4" internal thread
- Dimensions: diameter 149 mm, height 235 mm
- Weight: 7.5 kg
- Amperage: 4.0 A
- Shaft power: 0.37 kW, 0.5 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug and plug connection on pump side
- Product code: 90.10.312
- EAN code: 5700393433182
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 9.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: No
- Free flow rate: 13,380 L/hour
- Capacity at 5 meter head: 9,000 L/hour
-
