ID
1316813
$ 1,328.12
1-2 weeks delivery time
-
+
The Grundfos KP 250.AV1 is a robust stainless steel submersible centrifugal pump designed for shipping, construction, and industrial use. It features a vertical float switch for automatic operation, a special liquid-filled motor, and can handle slightly contaminated water with particles up to 10 mm. It operates at 230V with a maximum submersion depth of 10 meters and delivers a free flow rate of 11,000 liters per hour .
- Description
- Ask a Question
-

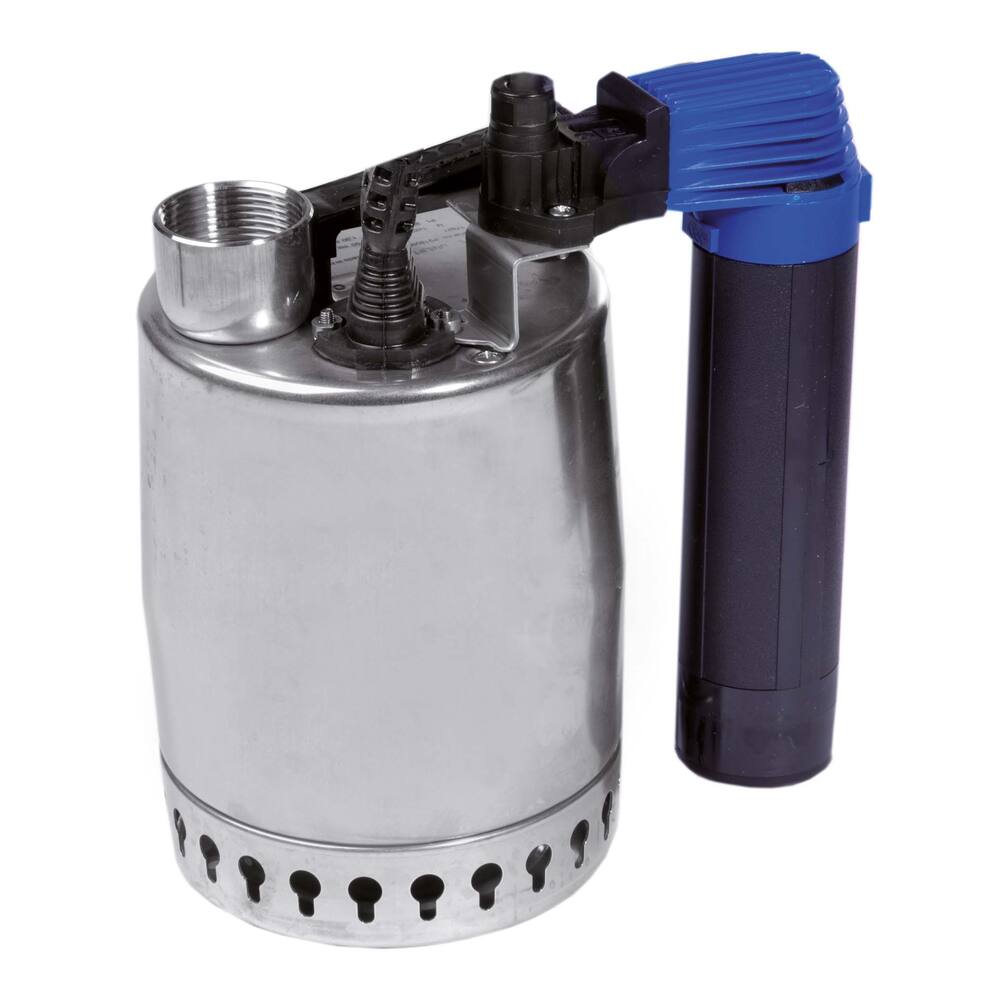

Grundfos KP 250.AV1 - Pump + Vertical Float 230V
This robust stainless steel cylinder pump is perfectly designed for shipping, construction, and industrial applications. It serves as an ideal bilge and ballast pump with a completely submersible centrifugal mechanism and specialized liquid-filled motor.
- Type: KP
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: special liquid-filled motor
- Fuse: inbuilt thermal safeguard (230 V version only)
- Shaft seal: NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: steel
- Suitable liquids: slightly contaminated water, water with somewhat higher acidity, continuous temperature up to 50°C
- Minimum pumping size: 14 mm (without float)
- Maximum particle size: 10 mm, no sand or gravel
- Connection: 1.1/4" internal thread
- Dimensions: diameter 149 mm, height 225 mm (diameter with float: 220 mm)
- Weight: 7.2 kg
- Amperage: 2.3 A
- Shaft power: 0.24 kW, 0.32 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug and plug connection on pump side
- Switch level with vertical float: start at minimum 180 mm, stop at minimum 100 mm
- Product code: 90.10.215
- EAN code: 5700391116650
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 7.5 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: Yes, vertical float
- Free flow rate: 11,000 L/hour
- Capacity at 5 meter head: 6,200 L/hour
-
