ID
1316812
$ 1,205.17
1-2 weeks delivery time
-
+
The Grundfos KP 250.1 Pump 230V is a robust all stainless steel cylinder pump suitable for shipping, construction, and industrial environments. It operates as a submersible centrifugal pump with a special liquid-filled motor, an open stainless steel impeller, and an NBR rubber lip seal. The pump handles slightly contaminated and mildly acidic water up to 50°C, pumps down to 14 mm, and delivers a free flow rate of 11,000 liters per hour with a maximum discharge head of 7.5 meters.
- Description
- Ask a Question
-

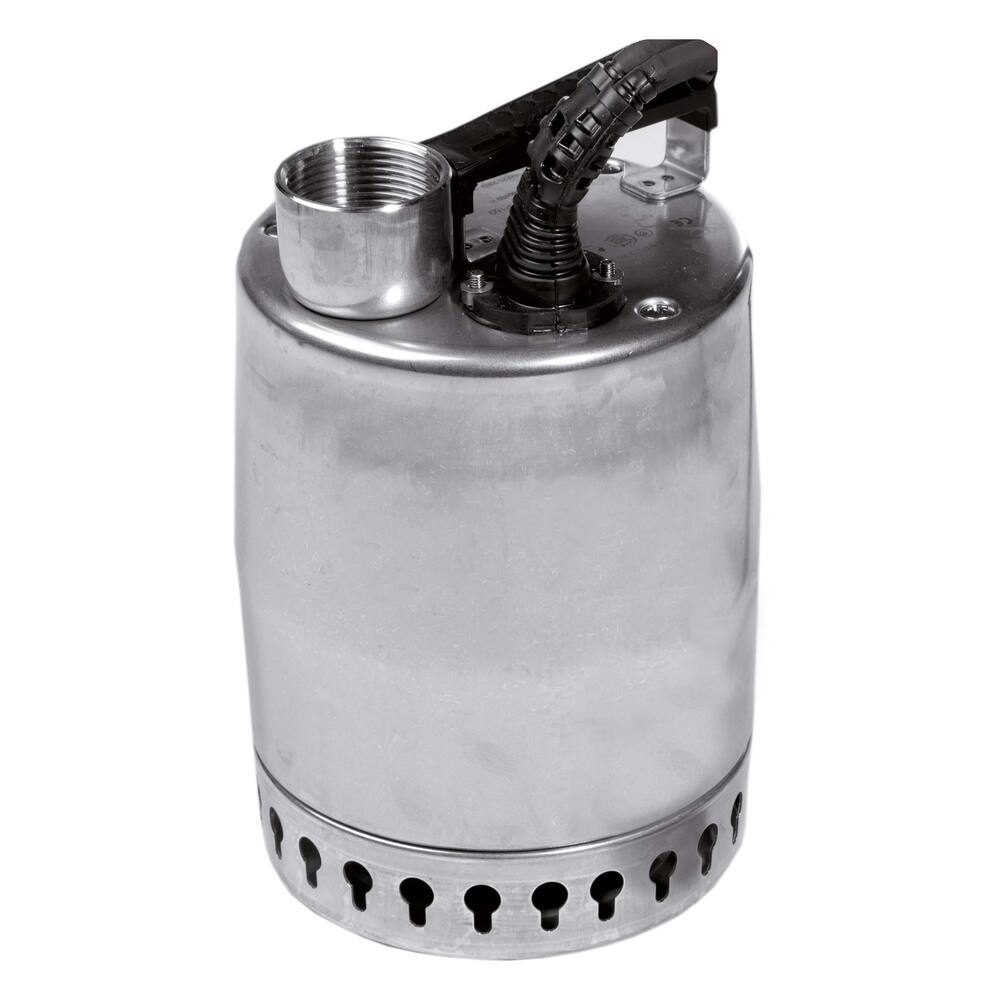

Grundfos KP 250.1 - Pump 230V
This all stainless steel cylinder pump is robust and well-suited for shipping, construction, and industrial environments. It operates as a submersible centrifugal pump without a float switch and is an excellent choice for bilge and ballast pumping.
- Type: KP
- Colour: Stainless steel
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Special liquid filled motor
- Fuse: Inbuilt thermal safeguard (only 230 V version)
- Shaft seal: NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller: Stainless steel 304
- Material impeller housing: Stainless steel 304
- Material motor housing: Stainless steel 304
- Material pump shaft: Steel
- Liquids handled: Slightly contaminated water, water with somewhat higher acidity, continuously at 50°C
- Pumps down to: 14 mm (only without float)
- Particle size: 10 mm, no sand or gravel
- Connection: 1.1/4" internal thread
- Dimensions: Diameter 149 mm, Height 225 mm (diameter plus float: 220 mm)
- Weight: 7.2 kg
- Amperage: 2.3 A
- Shaft power: 0.24 kW, 0.32 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug, also plug connection on pump side
- Product code: 90.10.212
- EAN code: 5700391116506
- Pipe diameter pressure: 1.1/4"
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Discharge head max.: 7.5 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 11000 L/Hour
- Capacity at 5 meter: 6200 L/hour
-
