ID
1316811
$ 1,125.07
1-2 weeks delivery time
-
+
The Grundfos KP 150.AV1 Pump with Vertical Float 230V is a rugged stainless steel cylinder pump designed for marine, construction, and industrial applications. It includes a special liquid-filled motor, an open stainless steel impeller, and an NBR rubber lip seal, with a vertical float switch for automatic operation. The pump handles slightly contaminated and mildly acidic water up to 50°C, pumps down to 14 mm, and delivers a free flow rate of 9,000 liters per hour with a maximum discharge head of 5.2 meters.
- Description
- Ask a Question
-

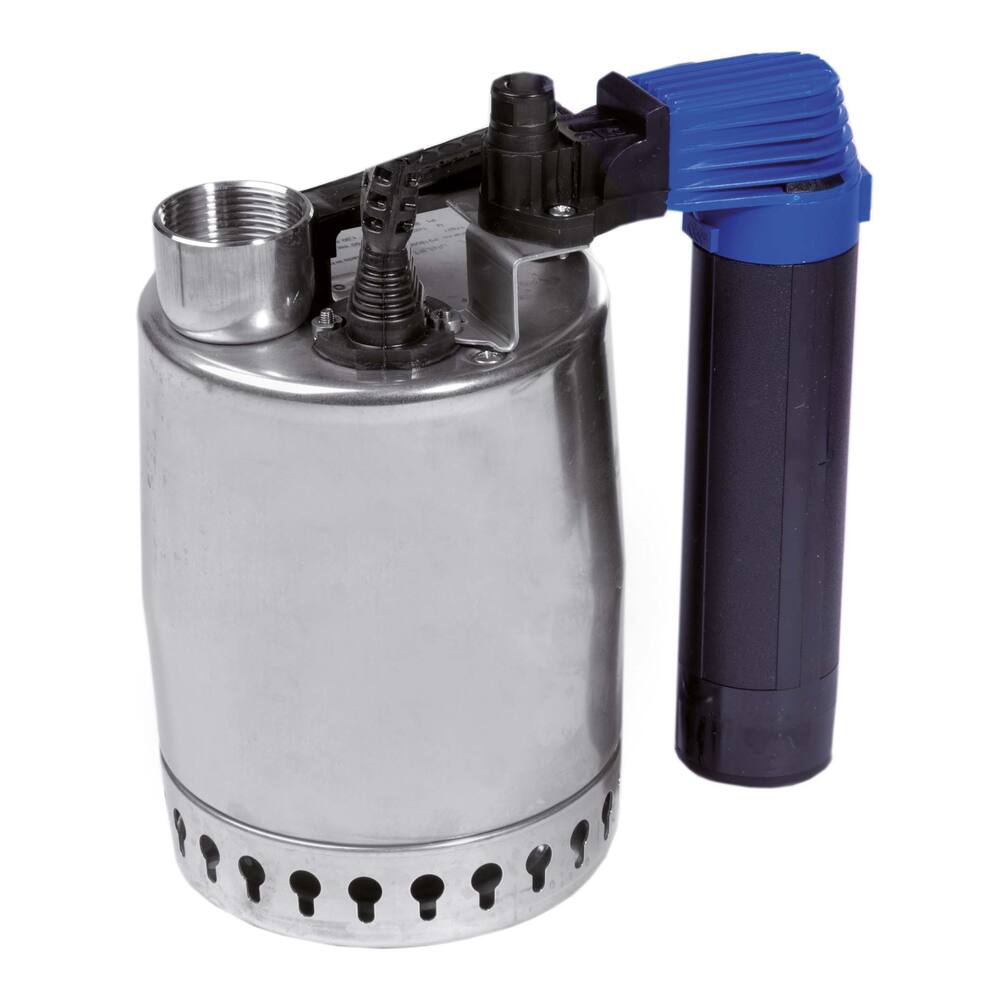

Grundfos KP 150.AV1 - Pump + Vertical Float 230V
This pump features a rugged stainless steel cylinder design, making it highly suitable for marine, construction, and industrial applications. It serves as an ideal bilge and ballast pump, equipped with a vertical float switch for automatic operation.
- Type: KP
- Colour: Stainless steel
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Special liquid filled motor
- Fuse: Inbuilt thermal safeguard (only 230 V version)
- Shaft seal: NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller: Stainless steel 304
- Material impeller housing: Stainless steel 304
- Material motor housing: Stainless steel 304
- Material pump shaft: Steel
- Liquids handled: Slightly contaminated water, water with somewhat higher acidity, continuously at 50°C
- Pumps down to: 14 mm (only without float)
- Particle size: 10 mm, no sand or gravel
- Connection: 1.1/4" internal thread
- Dimensions: Diameter 149 mm, Height 225 mm (diameter plus float: 220 mm)
- Weight: 6.3 kg
- Amperage: 1.3 A
- Shaft power: 0.15 kW, 0.2 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug, also plug connection on pump side
- Switch level with vertical float: start 180 mm minimum, stop 100 mm minimum
- Product code: 90.10.115
- EAN code: 5700391115561
- Pipe diameter pressure: 1.1/4"
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Discharge head max.: 5.2 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: Yes, vertical float
- Free flow: 9000 L/Hour
- Capacity at 5 meter: 250 L/hour
-
