ID
1316810
$ 1,004
1-2 weeks delivery time
-
+
The Grundfos KP 150-1 Pump 230 Volt is a sturdy all stainless steel cylinder pump suitable for shipping, construction, and industrial sectors, functioning effectively as a bilge and ballast pump. It features a special liquid-filled motor, an open stainless steel impeller, and an NBR rubber lip seal. The pump handles slightly contaminated and mildly acidic water up to 50°C, pumps down to 14 mm, and provides a free flow rate of 9,000 liters per hour with a maximum discharge head of 5.2 meters.
- Description
- Ask a Question
-

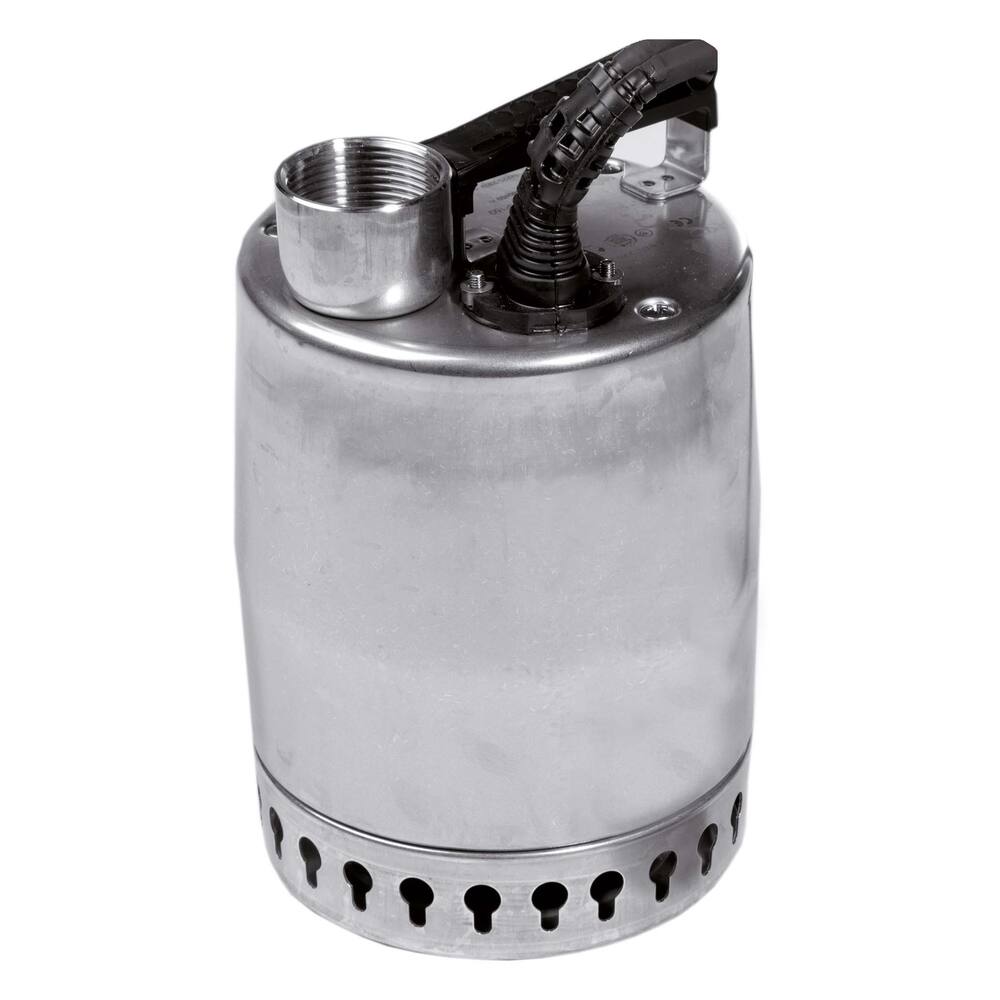

Grundfos KP 150-1 - Pump 230 Volt
This sturdy all stainless steel cylinder pump is well suited for shipping, construction, and industrial sectors, functioning effectively as a bilge and ballast pump.
- Type: KP
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: special liquid filled motor
- Fuse: inbuilt thermal safeguard (230 Volt version only)
- Shaft seal: NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: steel
- Suitable liquids: slightly contaminated water and water with somewhat higher acidity, continuous temperature 50°C
- Pumps down to 14 mm (only without float)
- Particle size: 10 mm, no sand or gravel
- Connection: 1.1/4" internal thread
- Dimensions: diameter 149 mm, height 225 mm (diameter with float: 220 mm)
- Weight: 6.3 kg
- Amperage: 1.3 A
- Shaft power: 0.15 kW, 0.2 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug and plug connection at pump side
- Product code: 90.10.112
- EAN code: 5700391115400
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Discharge head Max.: 5.2 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 9,000 L/hour
- Capacity at 5 meter: 250 L/hour
-
