ID
1316835
$ 5,029.32
1-2 weeks delivery time
-
+
The Hewa Pump 50/040 400V is a reliable self-priming centrifugal pump modeled after the classic K&R SAE series, designed for deck washing, bilge pumping, firefighting, and irrigation. It features a bronze impeller and wear plate, cast iron housing, and stainless steel shaft, handling clean and contaminated liquids with coarse particles up to 8 mm, delivering up to 33,750 liters per hour at 10 meters head with a 4.0 kW motor.
- Description
- Ask a Question
-

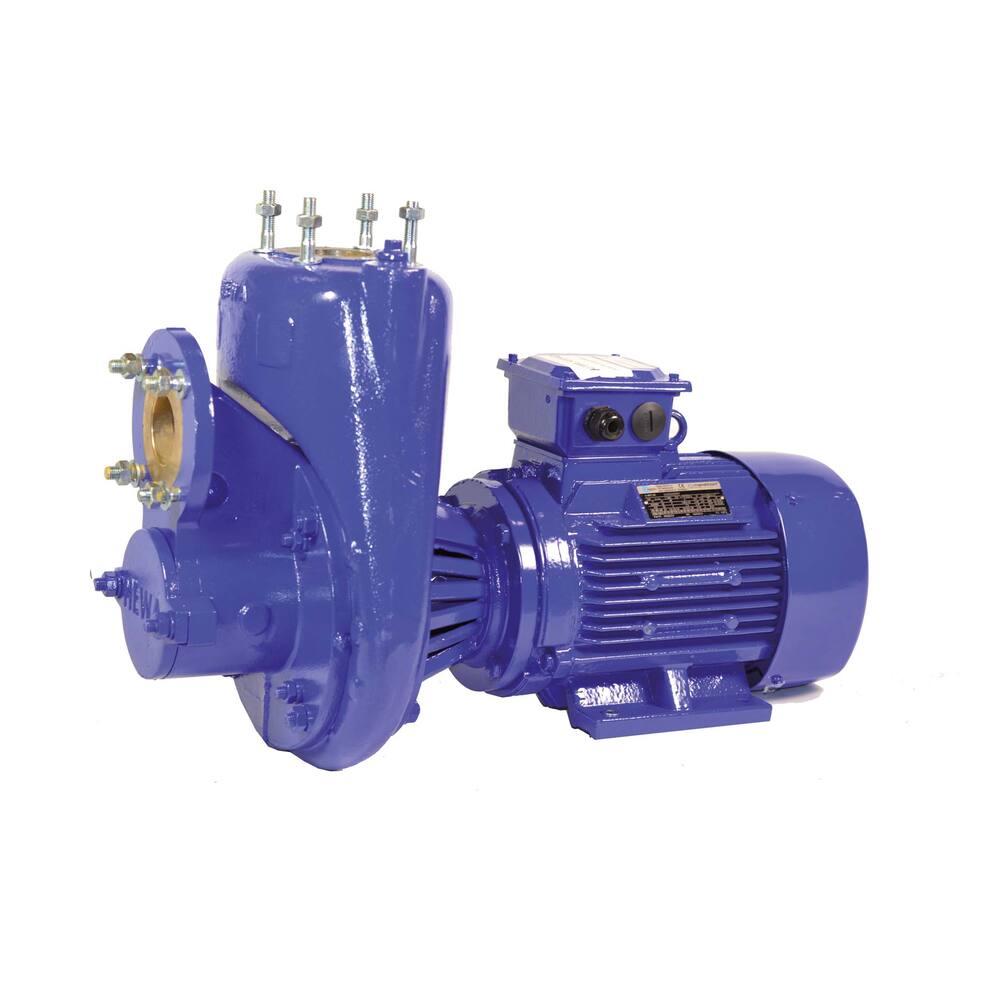

Hewa Pump 50/040 400V
The Hewa Pump 50/040 400V is a reliable deck wash and bilge pump modeled after the classic K&R SAE pump series. It delivers strong pressure and volume performance, suitable for deck washing, jet-washing holds, fire pumping, overhead irrigation, ballast water management, drainage, and general service use.
- Type: HEWA
- Colour: blue
- Type pump: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: squirrel-cage motor
- Fuse: NOT built-in
- Insulation class: IP55
- Seal: carbon on SiC mechanical seal with viton
- Material impeller: bronze
- Material wear plate: bronze
- Material pump housing: cast iron
- Material pump shaft: Stainless steel A4
- Liquids handled: clean and contaminated liquids with relatively coarse constituents, e.g. water, sea water
- Capacity at various heads:
- 10 m: 33,750 litres/hour
- 20 m: 16,500 litres/hour
- 25 m: 7,525 litres/hour
- Dimensions (LxWxH): 653 x 190 x 398 mm
- Weight: 98 kg
- Current: 8.0 amp
- Shaft power: 4.0 kW, 5.3 hp, 2900 rpm
- Product code: 92.07.611
- Suction head: 8.0 m
- Pipe diameter pressure: DN 50 Flange
- Pipe diameter suction: DN 50 Flange
- Pump type: Dry set-up pump, self-priming
- Medium: Water with coarse components
- Particle size: 8 mm
- Discharge head max: 28.0 m
- Voltage: 400 V, Current: AC, Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 44,500 L/hour
- Capacity at 5 meter: 40,500 L/hour
-
