ID
1316780
$ 2,487.18
1-2 weeks delivery time
-
+
The City Pumps Patrol 30/50 400V With MSS Without Float is a robust submersible centrifugal pump designed for removing cargo residues, sewage, and dirty water tanks, or as a ballast pump. It features a grey cast iron and cast steel construction, a single-channel impeller, and a dry motor with a motor protection switch. The pump handles contaminated water with solids and high acidity up to 40°C, pumps particles up to 50 mm, and delivers flow rates of 42,000 liters per hour at 10 meters head and 27,000 liters per hour at 15 meters head. It has a maximum discharge head of 22.0 meters, weighs 38.6 kg, and includes a 5-meter neoprene cable without a plug.
- Description
- Ask a Question
-

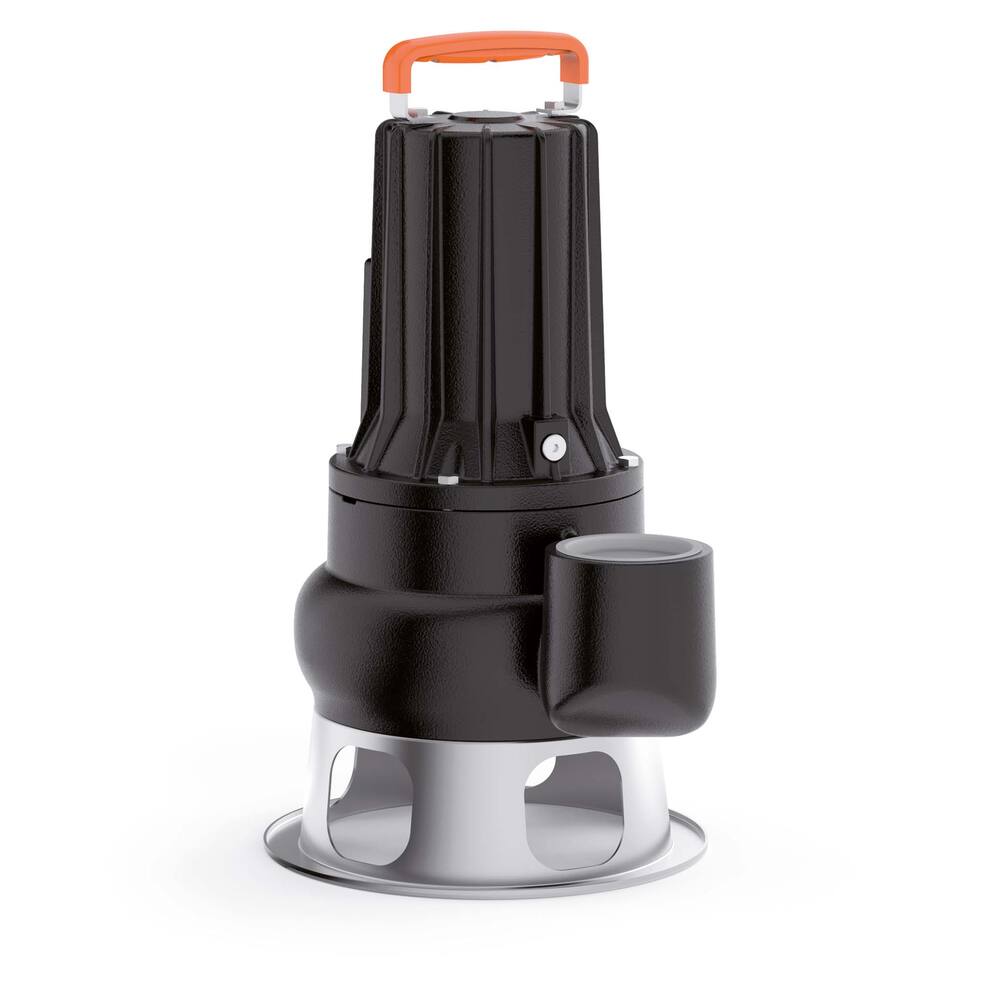

City Pumps Patrol 30/50 400V With MSS Without Float
This robust submersible centrifugal pump is designed for removing cargo residues from holds, sewage, dirty water tanks, or as a ballast pump. It features a grey cast iron and cast steel construction and operates reliably in contaminated water with solids and high acidity up to 40°C.
- Type: PATROL
- Colour: grey
- Pump type: completely submersible centrifugal pump
- Impeller type: single-channel impeller
- Motor type: dry motor
- Submersion depth: 10 metres
- Fuse: inbuilt thermal safeguard for 230 V; for 400 V a motor safeguarding switch in the cable is necessary
- Shaft seal: oil chamber with 2 shaft seals; lower seal is silicon carbide and Widia mechanical seal, plus a lip seal on motor side
- Material impeller: cast steel
- Material impeller housing: cast iron
- Material motor housing: cast iron
- Material pump shaft: stainless steel EN 10088-3 - 1.4057
- Liquids handled: contaminated water with solids and high acidity, max temperature 40°C
- Pumps down to 75 mm maximum
- Flow rates:
- 10 metres head: 42,000 litres/hour
- 15 metres head: 27,000 litres/hour
- Connection: 2.1/2" internal thread
- Dimensions: diameter 387 mm, height 509 mm
- Weight: 38.6 kg
- Amperage: 5.7 A
- Shaft power: 2.2 kW, 3.0 hp, 2900 rpm
- Cable: 5 metre neoprene H07RN-F without plug for 400 V
- Product code: 91.51.353
- Pipe diameter pressure: 2.1/2"
- Model: With motor protection switch (Guarantee)
- Medium: Water with coarse components
- Particle size: 50 mm
- Max discharge head: 22.0 m
- Voltage: 400 V
- Current: AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 66,000 L/hour
- Capacity at 5 meters: 57,000 L/hour
-
