ID
1316779
$ 2,309.53
1-2 weeks delivery time
-
+
The City Pumps Patrol 20/50 400V With MSS Without Float is a durable submersible centrifugal pump equipped with a motor protection switch, designed for removing cargo residues, sewage, and dirty water tanks, or functioning as a ballast pump with enhanced power. It features a single-channel impeller, dry motor, and handles contaminated water with solids and high acidity up to 40°C. The pump handles particles up to 50 mm, delivers a flow rate of 18,000 liters per hour at 10 meters head with a free flow of 54,000 liters per hour, and has a maximum discharge head of 16.0 meters. It weighs 43 kg and comes with a 5-meter neoprene cable without a plug.
- Description
- Ask a Question
-

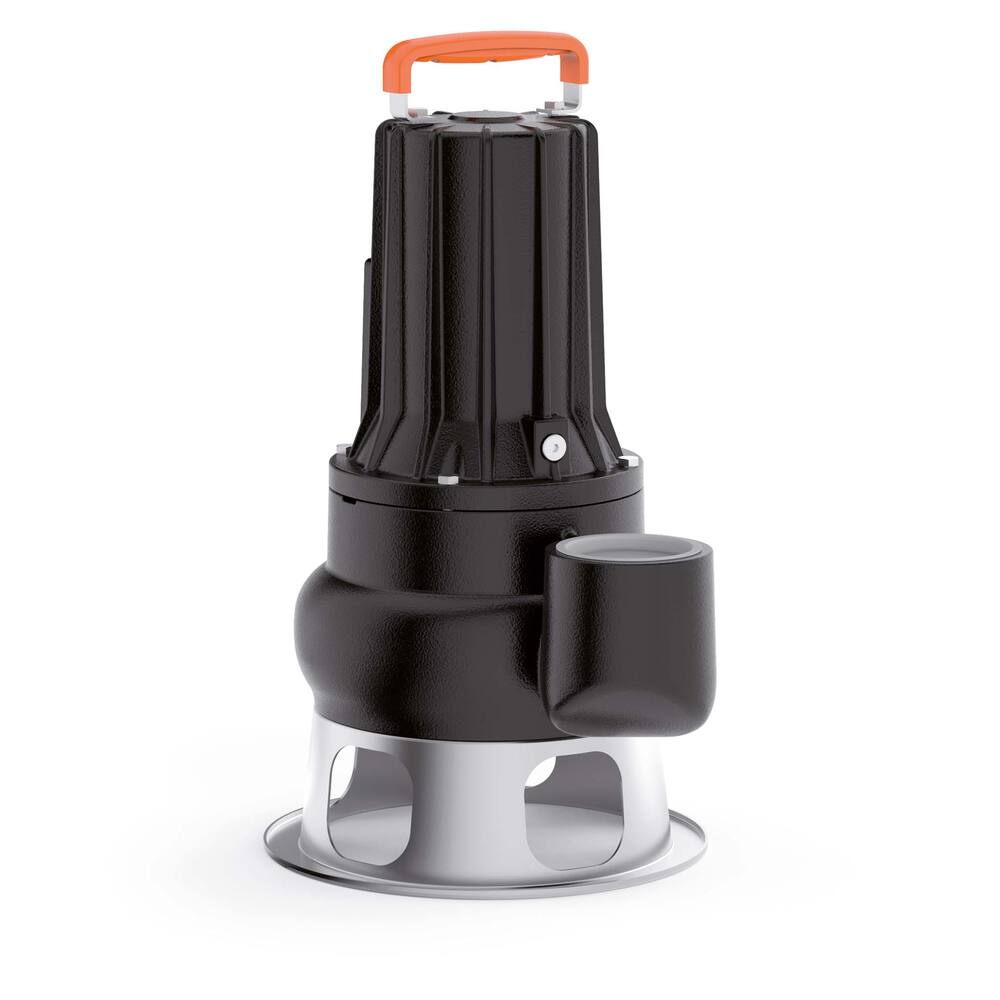

City Pumps Patrol 20/50 400V With MSS Without Float
This durable pump, equipped with a motor protection switch, is perfect for removing cargo residues, sewage, dirty water tanks, or functioning as a ballast pump with enhanced power.
- Type: PATROL
- Colour: grey
- Pump type: completely submersible centrifugal pump
- Impeller type: single-channel impeller
- Motor type: dry motor
- Submersion depth: 10 metres
- Fuse: inbuilt thermal safeguard for 230 volt; for 400 volt a motor safeguarding switch in the cable is necessary
- Shaft seal: oil chamber with 2 shaft seals; lower seal is silicon carbide and Widia mechanical, plus lip seal on motor side
- Material impeller: cast steel
- Material impeller housing: cast iron
- Material motor housing: cast iron
- Material pump shaft: stainless steel EN 10088-3 - 1.4057
- Liquids handled: contaminated water containing solids and high acidity, max temperature 40°C for fully submerged pump
- 10 metres head flow rate: 18,000 litres per hour
- Pumps down to: 55 mm maximum particle size
- Connection: 2.1/2" internal thread
- Dimensions: diameter 242 mm, height 487 mm
- Weight: 43 kg
- Amperage: 400 V, 3.4 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 5 metre neoprene H07RN-F without plug for 400 volt
- Product code: 91.51.253
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: -
- Model: With motor protection switch (Guarantee)
- Medium: Water and water with coarse components
- Particle size: 50 mm
- Max discharge head: 16.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IPX8
- ATEX: No
- Separate float switch: No
- Free flow: 54,000 L/hour
- Capacity at 5 meter: 39,000 L/hour
-
