ID
1316795
$ 430.29
1-2 weeks delivery time
-
+
The DAB Evosta 2 40-70/130 230V pump is designed for both large and small heating systems, efficiently transporting low-viscosity, solid-free media with high performance, low power consumption, and minimal noise. It features a non self-priming centrifugal design with a closed plastic impeller, cast iron housing, and oxide ceramic shaft, operating at variable speeds with built-in thermal protection and handling clean water from -10 °C to +110 °C. The pump has a flow rate of 3,400 to 3,600 liters per hour at 1 meter, a maximum discharge head of 6.9 meters, and operates on 230 V with IPX5 insulation and IP68 protection class.
- Description
- Ask a Question
-

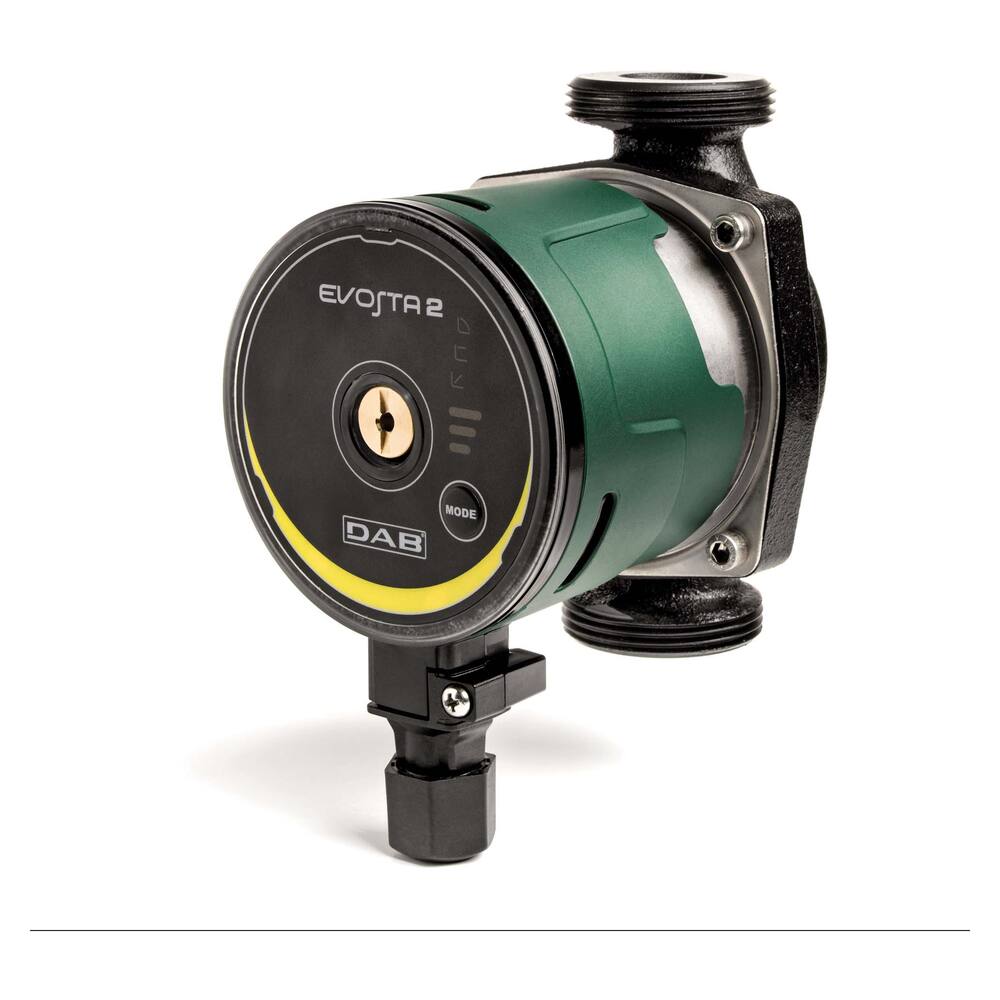

DAB Evosta 2 40-70/130 230V
Designed for both large and small heating systems, this pump efficiently transports low-viscosity media free of solids, offering high performance with low power use and minimal noise.
- Type: Evosta 2
- Colour: green
- Special feature: very low noise
- Pump type: non self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: “half wet” variable speed
- Fuse: built-in thermal protection
- Seal: non-sealed
- System pressure: up to 10 atmospheres
- Material impeller: plastic
- Material pump housing: cast iron
- Material pump shaft: oxide ceramic
- Liquids: clean water, temperature range -10 °C to +110 °C
- Flow at 1 meter: 3,400 litres/hour
- Suction head: zero
- Particle size: zero
- Connections: 1 1/2” outside thread (without coupling)
- Dimensions: installed length 130 mm (also available 180 mm)
- Weight: 2.19 kg
- Insulation class: IPX5
- Current: 0.043 to 0.32 A
- Power consumption: min. 4 watts, max. 35 watts
- Revolutions per minute: variable
- Product code: 93.75.423
- EAN code: 8059893168146
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Model: 130 mm construction length
- Pump type: Central-heating pumps
- Medium: Water
- Particle size: 2 mm
- Discharge head max.: 6.9 m
- Voltage: 230 V
- Current: AC
- Frequency: 50/60 Hz
- Protection class: IP68
- Free flow: 3,600 L/hour
- Capacity at 5 meter: 950 L/hour
-
