The City Pumps Deck Wash Hydro NHB 15 400V is a stainless steel submersible centrifugal pump designed for well point dewatering and high-pressure applications, including deck washing on ships. It features a dry motor, closed Noryl impeller, and durable shaft seals, handling clean water with a maximum particle size of 2 mm. Operating at 400 V, it delivers a free flow rate of 7,200 liters per hour and can reach a maximum discharge head of 56 meters.
- Description
- Ask a Question
-

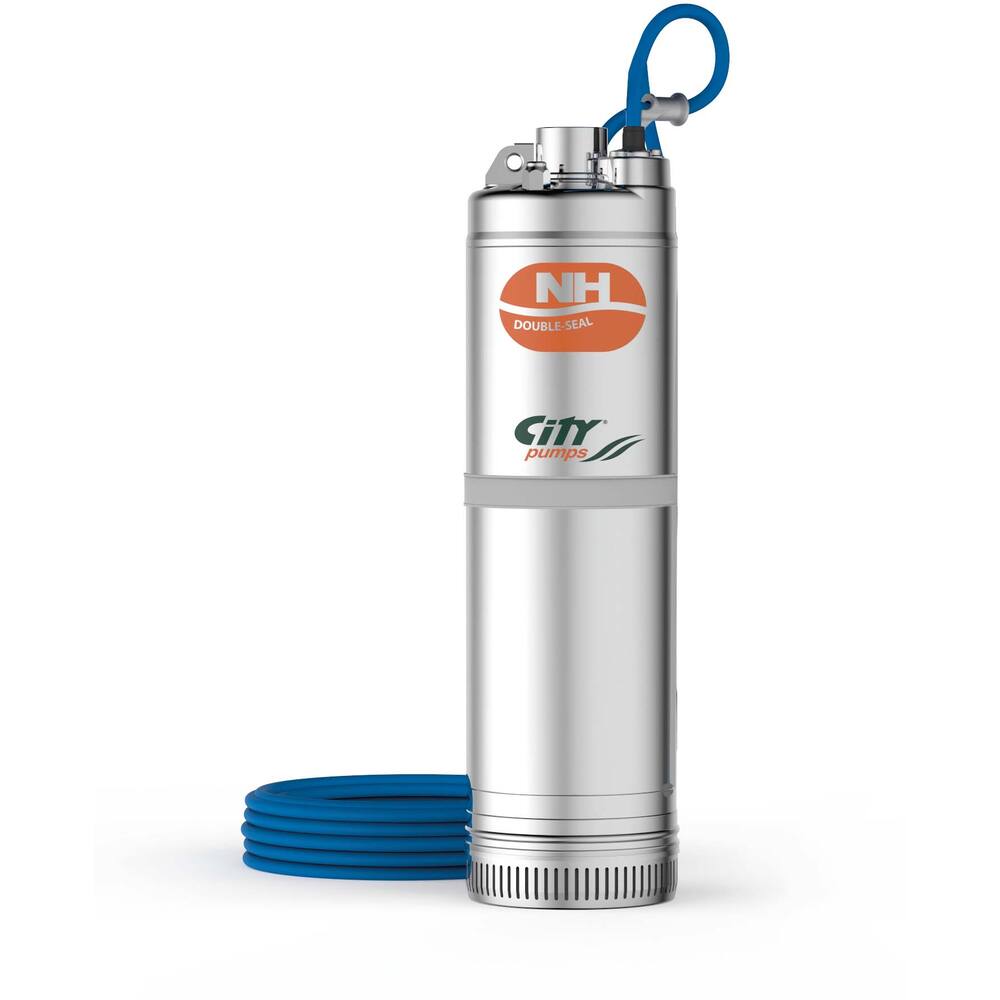

City Pumps Deck Wash Hydro NHB 15 400V
This stainless steel submersible pump is suitable for well point dewatering and other high-pressure applications, with use as a deck wash pump in maritime settings.
- Type: Hydro-NHB
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: closed impeller
- Motor type: dry motor
- Submersion depth: 5 metres
- Fuse: inbuilt thermal safeguard at 230 V; for 400 V a motor safeguarding switch in the cable is needed
- Shaft seal: oil chamber with 2 shaft seals; wear resistant silicon carbon on ceramic mechanical seal below, lip seal on motor side
- Material impeller: Noryl
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean water
- Performance at various heads:
- 25 m head: 7,080 litres/hour
- 30 m head: 6,720 litres/hour
- 35 m head: 6,300 litres/hour
- 40 m head: 5,400 litres/hour
- 45 m head: 4,560 litres/hour
- 50 m head: 3,120 litres/hour
- 55 m head: 1,800 litres/hour
- Minimum pumping depth: 35 mm maximum
- Connection: 1.1/4" internal thread
- Dimensions: diameter 135 mm, height 621 mm
- Weight: 17.5 kg (400 V)
- Amperage: 2.8 A (400 V)
- Shaft power: 1.1 kW, 1.5 hp, 2850 rpm
- Cable: 20 metre neoprene H07RN-F without plug
- Product code: 91.92.153
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 2 mm
- Maximum discharge head: 56.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 7200 L/hour
- Capacity at 5 m: 7200 L/hour
-
