ID
1316781
$ 958.36
1-2 weeks delivery time
-
+
The City Pumps Deck Wash Hydro NHB 7M 230V is a stainless steel submersible centrifugal pump ideal for well point dewatering and high-pressure applications like deck washing on ships. It has a dry motor, closed Noryl impeller, and silicon carbon on ceramic mechanical shaft seals. Designed for clean water, it operates at 230 V and delivers 7,200 liters per hour free flow with a maximum discharge head of 37 meters.
- Description
- Ask a Question
-

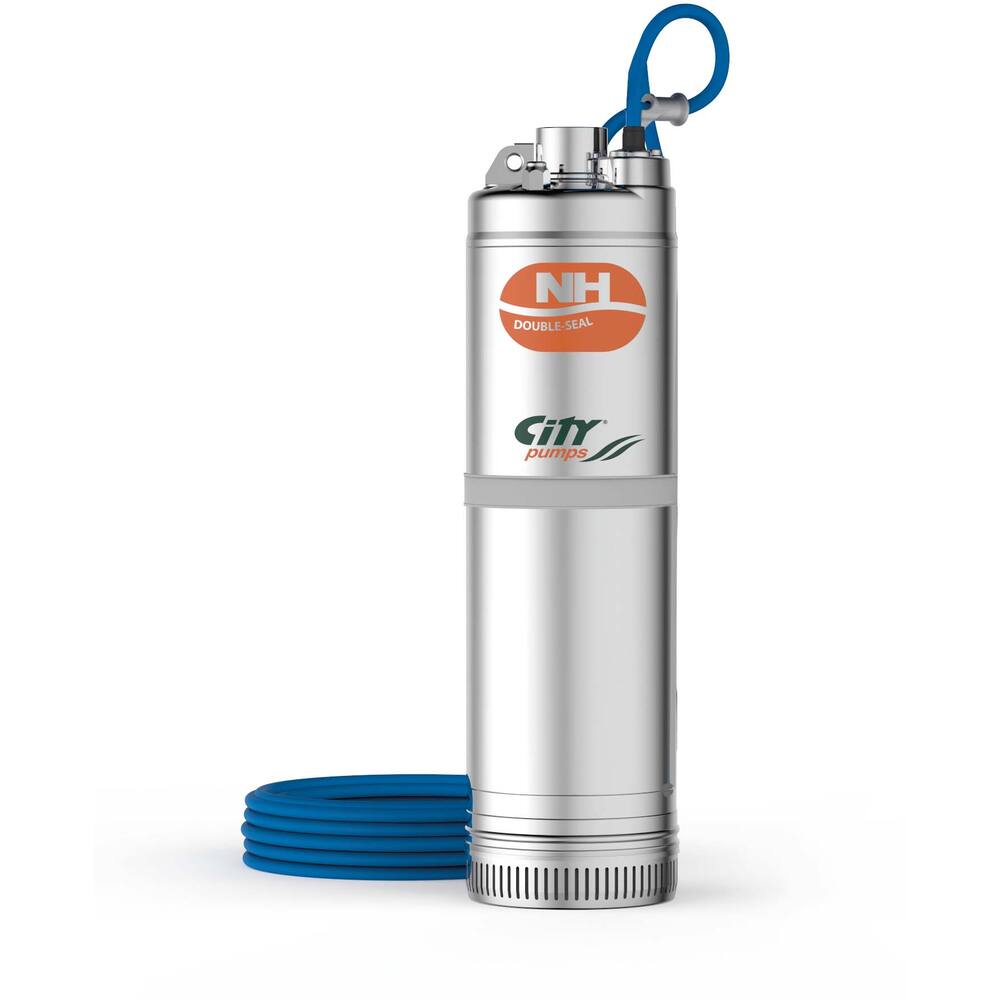

City Pumps Deck Wash Hydro NHB 7M 230V
This stainless steel submersible pump is ideal for well point dewatering or high pressure applications such as deck washing on ships.
- Type: Hydro-NHB
- Colour: Stainless steel
- Pump type: Fully submersible centrifugal pump
- Impeller type: Closed impeller
- Motor type: Dry motor
- Maximum submersion depth: 5 metres
- Fuse: Inbuilt thermal safeguard at 230 V; motor safeguarding switch needed for 400 V
- Shaft seal: Oil chamber with two shaft seals; lower is silicon carbon on ceramic mechanical seal plus lip seal on motor side
- Impeller material: Noryl
- Impeller housing material: Stainless steel 304
- Motor housing material: Stainless steel 304
- Pump shaft material: Stainless steel EN 10088-3, 1.4104
- Suitable liquids: Clean water
- Performance:
- At 10 metres head: 7,200 litres/hour
- At 15 metres head: 6,480 litres/hour
- At 20 metres head: 5,760 litres/hour
- At 25 metres head: 4,800 litres/hour
- At 30 metres head: 3,720 litres/hour
- At 35 metres head: 2,400 litres/hour
- Minimum pumping level: 35 mm
- Maximum particle size: 2 mm
- Connection: 1.1/4" internal thread
- Dimensions: Diameter 135 mm, Height 519 mm
- Weight: 14.8 kg
- Electrical specs:
- Amperage: 5.0 A
- Shaft power: 0.55 kW (0.75 hp), 2850 rpm
- Cable: 20 metre neoprene H07RN-F without plug
- Voltage: 230 V, AC, 50 Hz
- Product code: 91.92.071
- Pipe diameter pressure: 1.1/4"
- Pump type: Submersible pump
- Medium handled: Water
- Discharge head max: 37.0 m
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 7,200 L/hour
- Capacity at 5 meters: 7,200 L/hour
-
