ID
1316778
$ 2,021.04
1-2 weeks delivery time
-
+
The City Pumps Patrol 20/50M 230V Without Float is a robust submersible centrifugal pump ideal for clearing cargo residues, sewage, and dirty water tanks, or serving as a ballast pump with increased capacity. It has a single-channel impeller, dry motor, and an inbuilt thermal safeguard for 230V. The pump handles contaminated water with solids and high acidity up to 40°C, pumps particles up to 50 mm, and provides a flow rate of 18,000 liters per hour at 10 meters head with a free flow of 42,000 liters per hour. It weighs 43 kg and includes a 10-meter neoprene cable with an earthed plug.
- Description
- Ask a Question
-

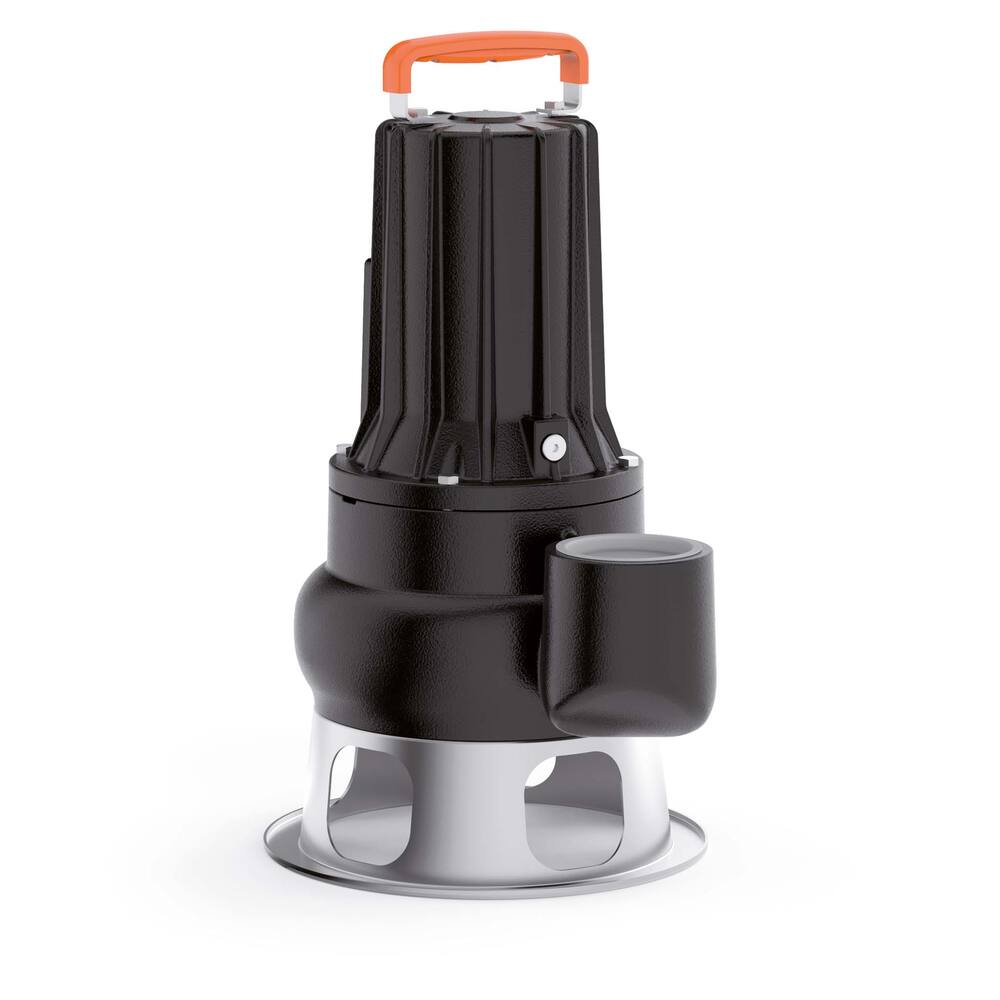

City Pumps Patrol 20/50M 230V Without Float
This robust pump is ideal for clearing cargo residues from holds, sewage handling, pumping out dirty water tanks, or serving as a ballast pump with increased capacity.
- Type: PATROL
- Colour: grey
- Pump type: completely submersible centrifugal pump
- Impeller type: single-channel impeller
- Motor type: dry motor
- Submersion depth: 10 metres
- Fuse: inbuilt thermal safeguard for 230 volt; for 400 volt a motor safeguarding switch in the cable is necessary
- Shaft seal: oil chamber with 2 shaft seals; lower seal is silicon carbide and Widia mechanical, plus lip seal on the motor side
- Material impeller: cast steel
- Material impeller housing: cast iron
- Material motor housing: cast iron
- Material pump shaft: stainless steel EN 10088-3 - 1.4057
- Liquids handled: contaminated water with solids and high acidity, max 40°C for submerged use
- 10 metres head flow rate: 18,000 litres per hour
- Pumps down to: 55 mm maximum particle size
- Connection: 2.1/2" internal thread
- Dimensions: diameter 242 mm, height 487 mm
- Weight: 43 kg
- Amperage: 230 V, 9.0 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug for 230 volt
- Product code: 91.51.251
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water and water with coarse components
- Particle size: 50 mm
- Max discharge head: 12.5 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IPX8
- ATEX: No
- Separate float switch: No
- Free flow: 42,000 L/hour
- Capacity at 5 meter: 36,000 L/hour
-
