ID
1316782
$ 1,007.26
1-2 weeks delivery time
-
+
The City Pumps Deck Wash Hydro NHB 10M 230V is a stainless steel submersible centrifugal pump designed for well point dewatering and high-pressure tasks, including deck washing. It features a dry motor, closed Noryl impeller, and durable shaft seals. Suitable for clean water, it operates at 230 V and provides a free flow rate of 7,200 liters per hour with a maximum discharge head of 48 meters.
- Description
- Ask a Question
-

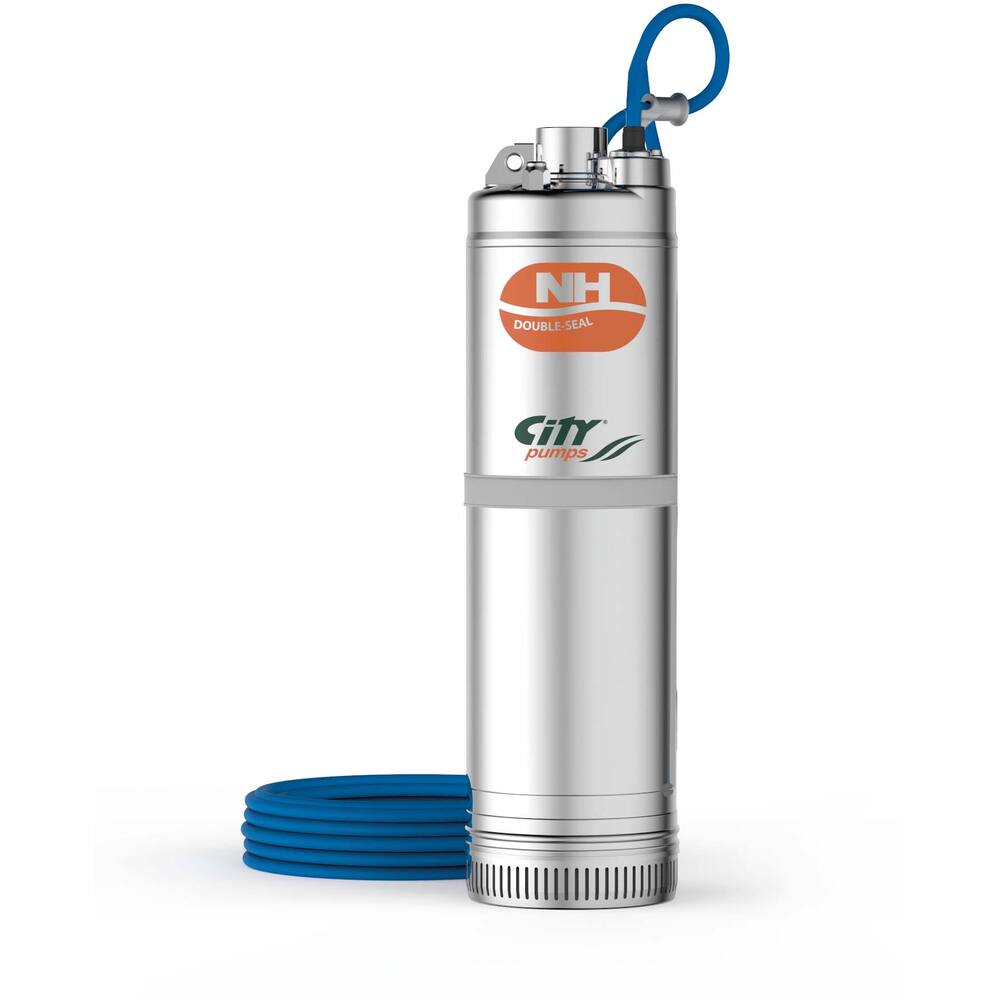

City Pumps Deck Wash Hydro NHB 10M 230V
This stainless steel submersible pump is designed for well point dewatering and other applications requiring high pressure. It is also suitable for use as a deck wash pump in shipping environments.
- Type: Hydro-NHB
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: closed impeller
- Motor type: dry motor
- Submersion depth: 5 metres
- Fuse: inbuilt thermal safeguard at 230 V; for 400 V a motor safeguarding switch in the cable is required
- Shaft seal: oil chamber with 2 shaft seals; lower seal is wear resistant silicon carbon on ceramic mechanical seal, plus a lip seal on motor side
- Material impeller: Noryl
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean water
- Performance at various heads:
- 15 m head: 7,080 litres/hour
- 20 m head: 6,480 litres/hour
- 25 m head: 5,760 litres/hour
- 30 m head: 5,160 litres/hour
- 35 m head: 4,200 litres/hour
- 40 m head: 3,360 litres/hour
- 45 m head: 2,160 litres/hour
- Minimum pumping depth: 35 mm maximum
- Connection: 1.1/4" internal thread
- Dimensions: diameter 135 mm, height 573 mm
- Weight: 16.7 kg
- Amperage: 6.2 A
- Shaft power: 0.75 kW, 1.0 hp, 2850 rpm
- Cable: 20 metre neoprene H07RN-F without plug
- Product code: 91.92.101
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 2 mm
- Maximum discharge head: 48.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 7200 L/hour
- Capacity at 5 m: 7200 L/hour
-
