ID
1316785
$ 1,155.58
1-2 weeks delivery time
-
+
The City Pumps Deck Wash Hydro NHB 20 400V is a stainless steel submersible centrifugal pump suitable for well point dewatering and high-pressure tasks, also used as a deck wash pump on ships. It has a dry motor, closed Noryl impeller, and wear-resistant shaft seals, pumping clean water with particles up to 2 mm. It operates at 400 V, providing a free flow rate of 7,200 liters per hour and a maximum discharge head of 72 meters.
- Description
- Ask a Question
-

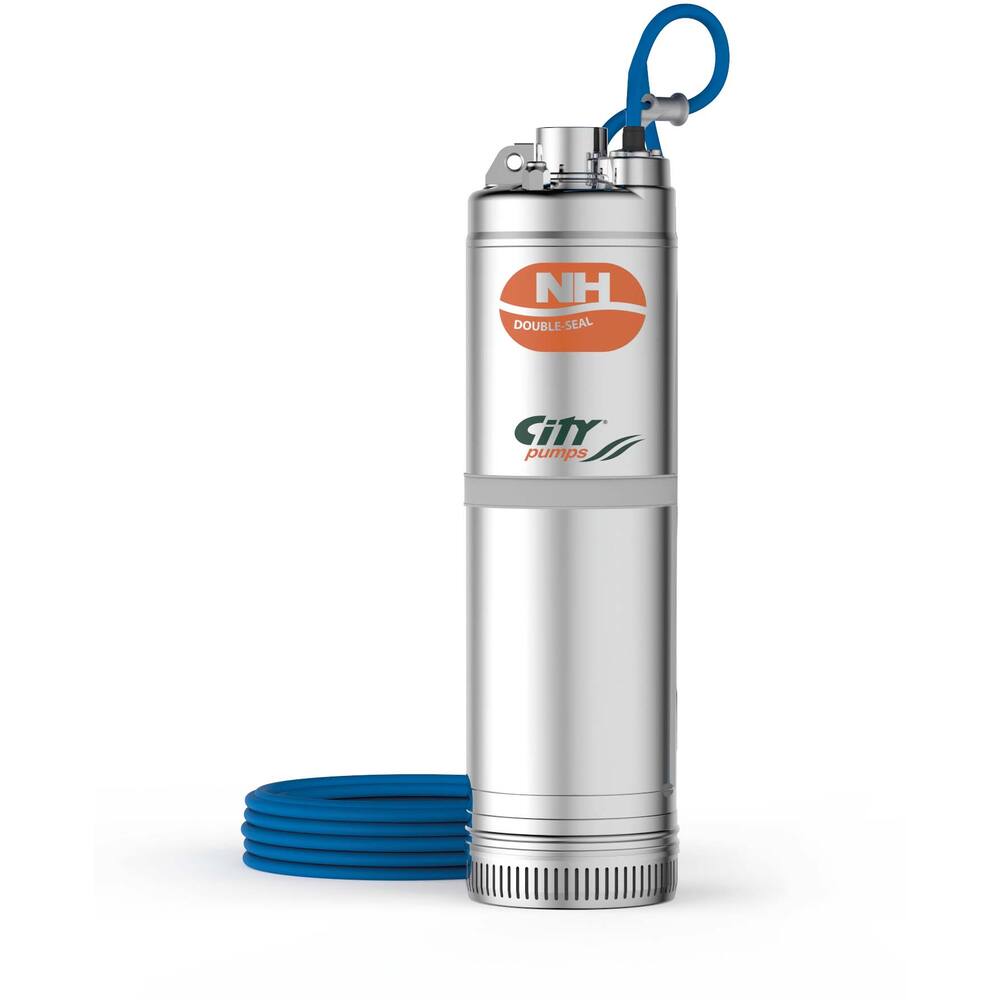

City Pumps Deck Wash Hydro NHB 20 400V
This stainless steel submersible pump is designed for well point dewatering and other applications requiring high pressure. It is also suitable for use on ships as a deck wash pump.
- Type: Hydro-NHB
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: closed impeller
- Motor type: dry motor
- Submersion depth: 5 metres
- Fuse: inbuilt thermal safeguard at 230 V; for 400 V a motor safeguarding switch in the cable is necessary
- Shaft seal: oil chamber with 2 shaft seals, lower is wear-resistant silicon carbon on ceramic mechanical seal, lip seal on motor side
- Material impeller: Noryl
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean water
- Performance at various heads:
- 35 m head: 7,020 L/h
- 40 m head: 6,480 L/h
- 45 m head: 5,880 L/h
- 50 m head: 5,940 L/h
- 55 m head: 4,440 L/h
- 60 m head: 3,780 L/h
- 65 m head: 2,640 L/h
- 70 m head: 1,560 L/h
- Pumps down to 35 mm maximum
- Connection: 1.1/4" internal thread
- Dimensions: diameter 153 mm, height 543 mm
- Weight: 22.8 kg
- Amperage: 3.2 A
- Shaft power: 1.5 kW, 2.0 hp, 2850 rpm
- Cable: 20 metre neoprene H07RN-F without plug
- Product code: 91.92.203
- Pipe diameter pressure: 1.1/4"
- Pump type: Submersible pump
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 72.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 7200
- Capacity at 5 meter (L/hour): 7200
-
