ID
1316796
$ 430.29
1-2 weeks delivery time
-
+
The DAB Evosta 2 40-70/180 230V pump is suitable for both large and small heating systems and the transfer of various low-viscosity fluids free of solids, combining high efficiency with low energy use and quiet operation. It shares many features with the 130 mm model, including a non self-priming centrifugal pump type, closed plastic impeller, cast iron housing, oxide ceramic shaft, and variable speed motor with thermal protection. It handles clean water from -10 °C to +110 °C, delivers 3,400 liters per hour at 1 meter, and has a maximum discharge head of 6.9 meters, operating at 230 V with IPX5 insulation and IP68 protection class.
- Description
- Ask a Question
-

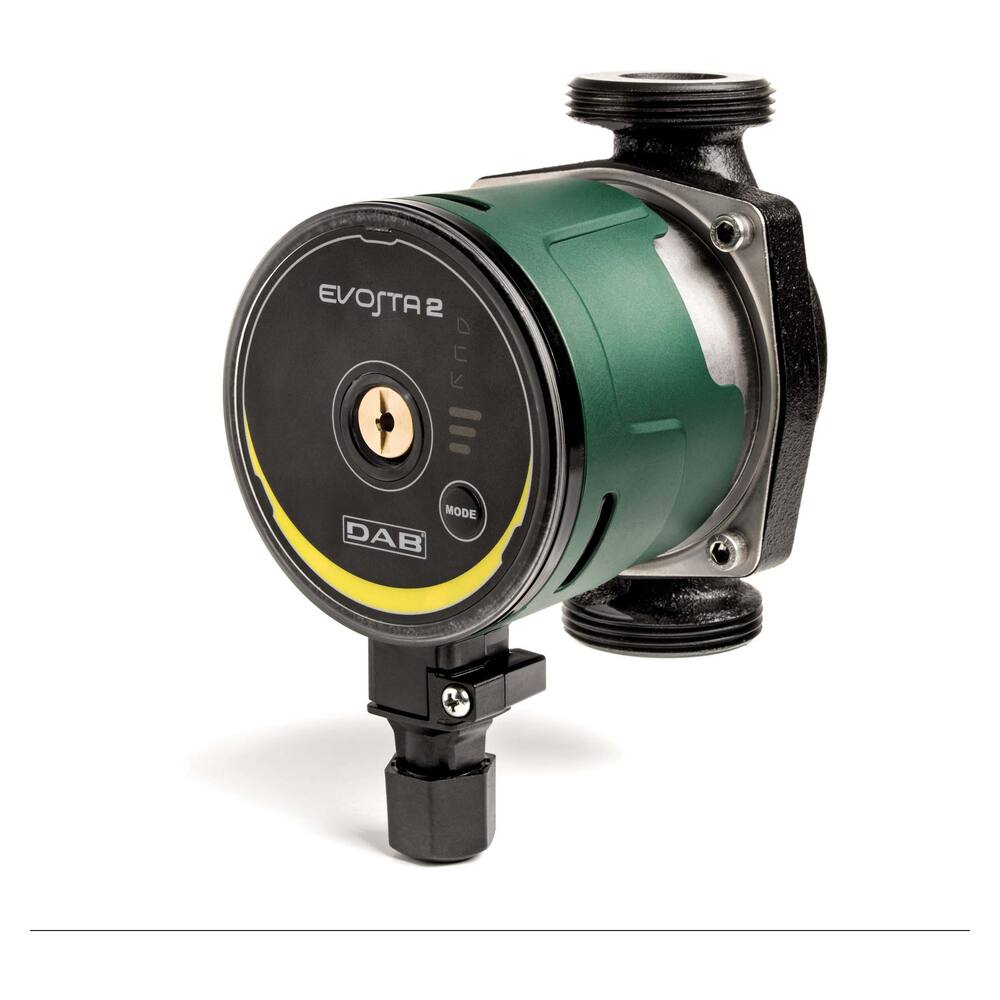

DAB Evosta 2 40-70/180 230V
Designed for both large and small heating systems as well as the transfer of various low-viscosity fluids free of solids, this pump combines high efficiency with low energy use and operates with minimal noise.
- Type: Evosta 2
- Colour: green
- Special feature: very low noise
- Pump type: non self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: “half wet” variable speed
- Fuse: built-in thermal protection
- Seal: non-sealed
- System pressure: up to 10 atmospheres
- Material impeller: plastic
- Material pump housing: cast iron
- Material pump shaft: oxide ceramic
- Liquids: clean water with a temperature from -10 °C to +110 °C
- Flow at 1 meter: 3,400 litres per hour
- Suction head: zero
- Particle size: zero
- Connections: 1 1/2” outside thread (supplied without coupling)
- Dimensions: installed length 130 or 180 mm
- Weight: 2.19 kg
- Insulation class: IPX5
- Current: 0.043 to 0.32 A
- Power consumption: minimum 4 watts, maximum 35 watts
- Revolutions per minute: variable
- Product code: 93.75.428
- EAN code: 8059893165589
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Model: 180 mm construction length
- Pump type: Central-heating pumps
- Medium: Water
- Particle size: 2 mm
- Maximum discharge head: 6.9 m
- Voltage: 230 V
- Current type: AC
- Frequency: 50/60 Hz
- Protection class: IP68
- ATEX certification: No
- Free flow (L/hour): 3600
- Capacity at 5 meters (L/hour): 950
-
