ID
1316738
$ 165.90
1-2 weeks delivery time
-
+
The City Pumps Gas Oil Pump Not Self-Priming IQ 05M 230V is a cast iron liquid ring pump specialized for transporting clean water and thin oil products like gas oil and petrol, commonly used as a fuel trim pump in shipping. It operates on 230 V AC with an induction motor and features a ceramic on carbon mechanical seal with viton. The pump is non self-priming, supports a maximum discharge head of 38 meters, and has a flow rate of up to 2400 liters per hour.
- Description
- Ask a Question
-

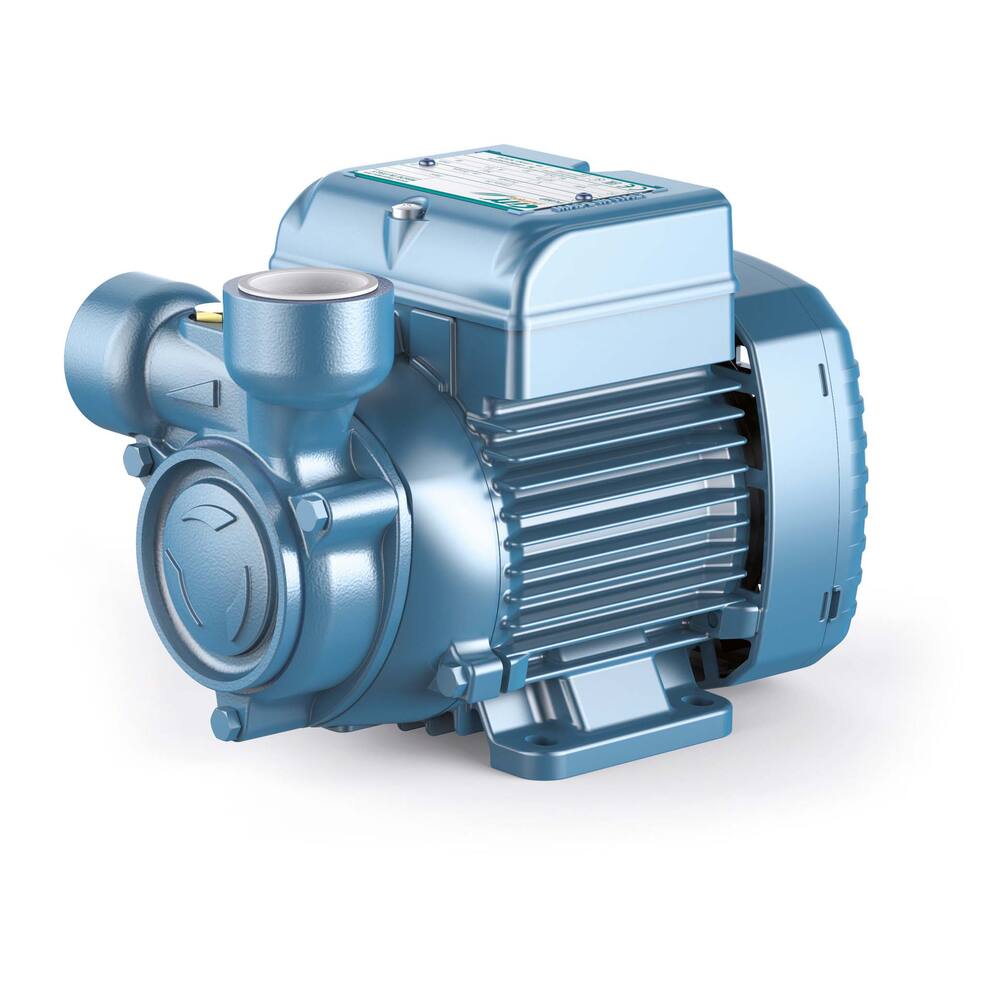

City Pumps Gas Oil Pump Not Self-Priming IQ 05M 230V
This cast iron pump specializes in transporting clean water and thin clean oil products, including gas oil and petrol. It is commonly used in shipping as a fuel trim pump.
- Type: IQ/IP 05
- Colour: blue
- Pump type: liquid ring pump, NOT a centrifugal pump
- Impeller type: peripherale impeller
- Motor type: 230 volt, induction motor
- Fuse: inbuilt thermal safeguard for 230 volt
- Shaft seal: ceramic on carbon mechanical seal + viton
- Material impeller: brass
- Material impeller housing: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: max temperature 90°C continuous water, gas oil, and other clean liquids without abrasive particles
- Flow rates by head:
- 10 m head: 2,040 L/h
- 15 m head: 1,710 L/h
- 20 m head: 1,410 L/h
- 25 m head: 1,080 L/h
- 30 m head: 780 L/h
- 35 m head: 480 L/h
- Suction head: 7.0 m (with foot valve)
- Particle size: zero
- Dimensions (LxWxH): approx. 223 x 120 x 152 mm
- Weight: 5.3 kg
- Amperage: 230 V: 2.6 A
- Shaft power: 0.37 kW, 0.55 hp, 2800 rpm
- Cable: none
- Product code: 93.25.061
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Dry set-up pump, non self-priming
- Medium: Gasoil
- Particle size allowed: 2 mm
- Discharge head Max.: 38.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 2400 L/hour
- Capacity at 5 meter: 2400 L/hour
-
