ID
1316745
$ 366.73
1-2 weeks delivery time
-
+
The City Jet Pump JS 12MX 230V is a self-priming centrifugal pump with integrated ejector, suitable for garden sprinkling, pressurizing, and clean water transport up to 40°C. It includes thermal protection for 230 V operation, technopolymer components, cast iron housing, and stainless steel shaft, offering a maximum discharge head of 64 m and flow rates up to 3,000 L/h at 35 m head.
- Description
- Ask a Question
-

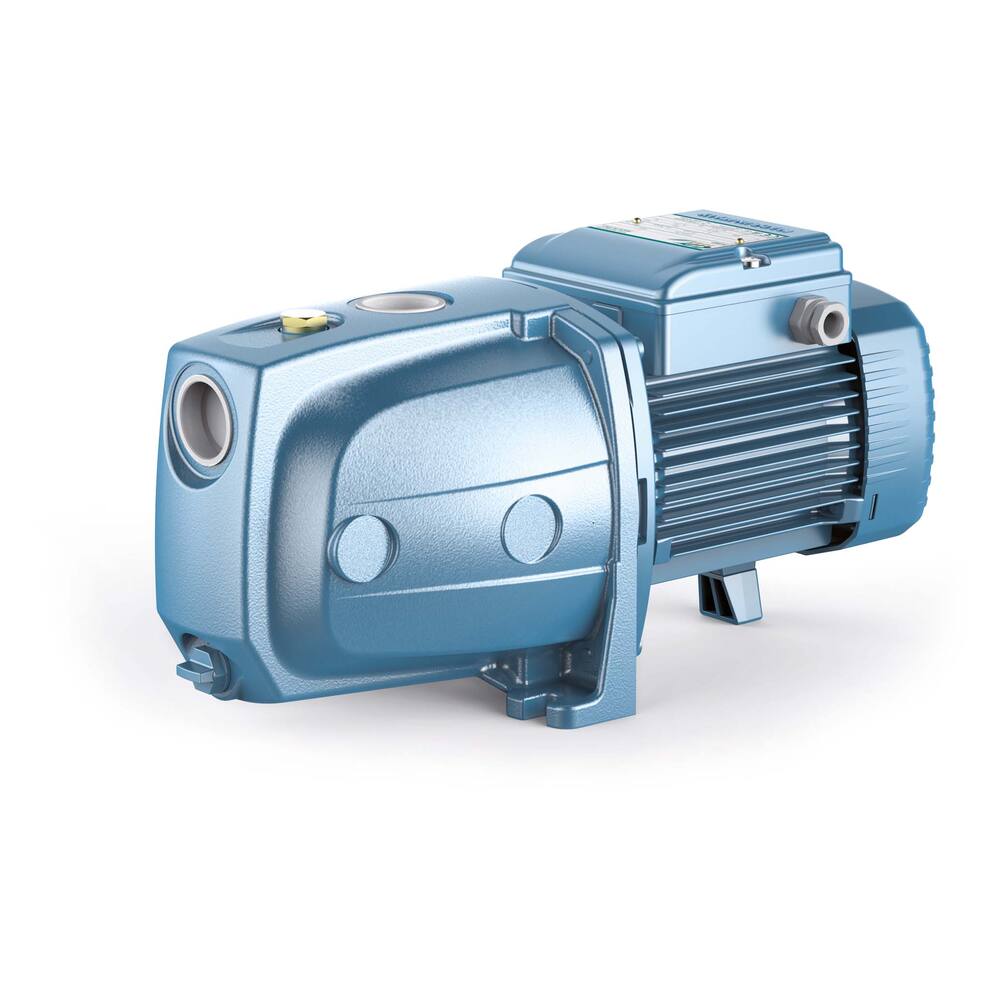

City Jet Pump JS 12MX 230V
This self-priming centrifugal pump with integrated ejector is ideal for garden sprinkling, pressurizing, and clean water transport up to 40°C, featuring thermal protection for 230 V operation.
- Type: JS
- Colour: blue
- Pump type: limited self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: induction motor, 230 volt
- Motor insulation class: F, IP44
- Fuse: inbuilt thermal safeguard (230 V only)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: technopolymer
- Material impeller housing: technopolymer
- Material ejector: technopolymer
- Material pump housing: cast iron
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean water with max temperature 40°C
- Performance:
- 35 m head: 3,000 L/h
- 40 m head: 2,700 L/h
- 45 m head: 1,620 L/h
- 50 m head: 960 L/h
- 55 m head: 510 L/h
- 60 m head: 240 L/h
- Connections: 1" internal thread
- Dimensions (LxWxH): 402 x 180 x 201 mm
- Weight: 15.0 kg
- Electrical specs: 230 V, 5.8 A
- Shaft power: 0.9 kW, 1.25 hp, 2900 rpm
- Product code: 93.34.050
- Suction head: 9.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Maximum particle size: 2 mm
- Maximum discharge head: 64.0 m
- Voltage: 230 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 3000 L/h
- Capacity at 5 meter head: 3000 L/h
-
