The Alpha Pompe 06RA-6" Right-Hand Rotation Pump is a versatile self-priming centrifugal pump designed for shipping tasks like bilge and deck washing, as well as sprinkling, dewatering, and use in industry, construction, and agriculture. It features a cast iron open impeller and housing, stainless steel shaft, and a ceramic on carbon mechanical seal, handling contaminated water, sea water, and gas oil up to 90°C. It delivers a maximum flow of 324,000 litres per hour at 10 metres head, with a 6" flange connection, weighs 253 kg, and operates at 1500 to 2000 rpm with 17 kW power.
- Description
- Ask a Question
-

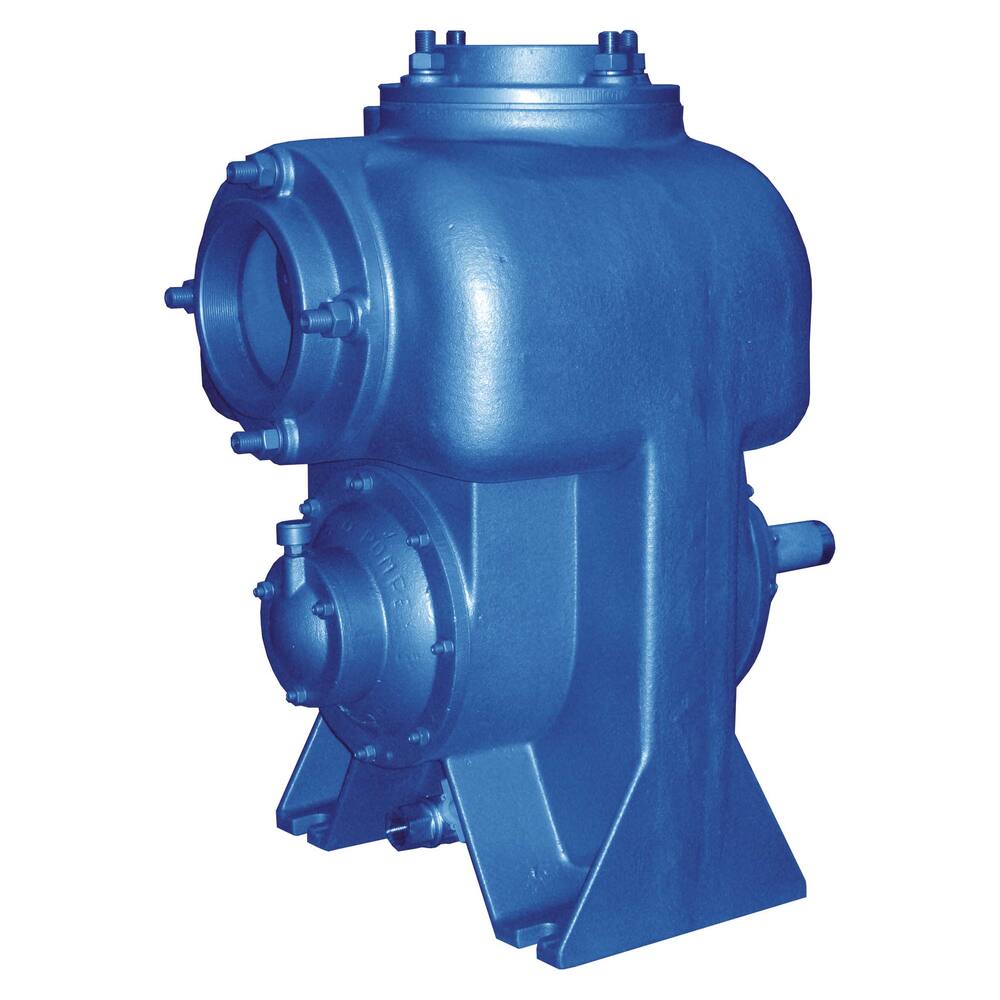

Alpha Pompe 06RA-6" Right-Hand Rotation Pump
This pump is designed for versatile use in shipping for bilge and deck washing, as well as sprinkling, dewatering, and applications in industry, construction, and agriculture.
- Type: 06RA
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: contaminated water, sea water, gas oil, etc., max temperature 90°C
- Performance:
- 10 metres head: 324,000 litres/hour
- 15 metres head: 300,000 litres/hour
- 20 metres head: 276,000 litres/hour
- 25 metres head: 215,000 litres/hour
- 30 metres head: 60,000 litres/hour
- Connections: 6" flange connection
- Dimensions (LxWxH): 675 x 500 x 865 mm
- Weight: 253 kg
- Shaft diameter: 48 mm
- Shaft power: 17 kW, 23 hp at 1800 rpm
- Speed range: 1500 through 2000 rpm
- Product code: 95.35.060
- Suction head: 7.0 m
- Pipe diameter pressure: 6" flange
- Pipe diameter suction: 6" flange
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 25 mm
- Discharge head max.: 30.5 m
- Free flow: 324,000 L/hour
- Capacity at 5 meters: 324,000 L/hour
-
