The City Jet Pump JS 10X 400V is an efficient self-priming centrifugal pump with a built-in ejector, designed for pressurizing, garden sprinkling, and transferring clean water up to 40°C. It features technopolymer impeller and housing, cast iron pump housing, and stainless steel shaft, operating at 400 V with a maximum discharge head of 56 m and flow rates up to 3,000 L/h at 30 m head.
- Description
- Ask a Question
-

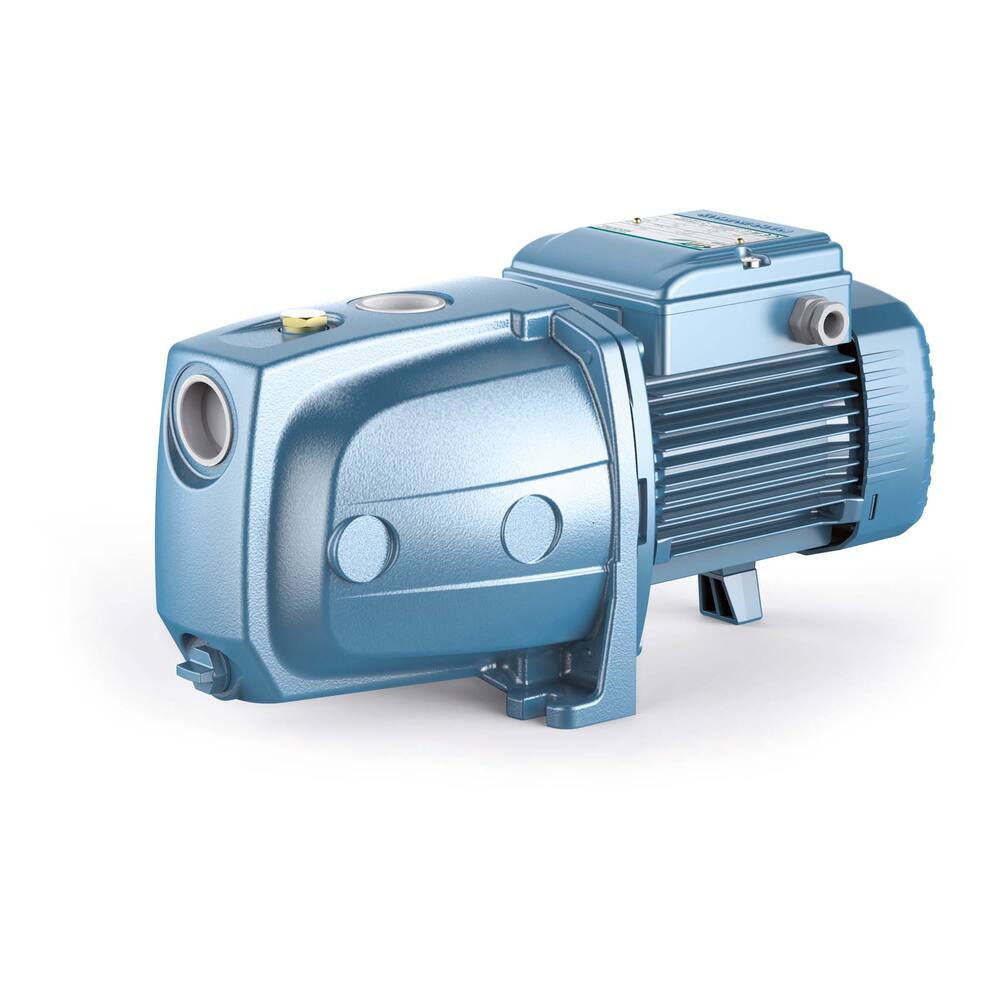

City Jet Pump JS 10X 400V
An efficient self-priming centrifugal pump with built-in ejector, designed for pressurizing, garden sprinkling, and transferring clean water up to 40°C.
- Type: JS
- Colour: blue
- Pump type: limited self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor, 400 volt
- Motor insulation class: F, IP44
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: technopolymer
- Material impeller housing: technopolymer
- Material ejector: technopolymer
- Material pump housing: cast iron
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean water with a maximum temperature of 40°C
- Performance:
- 30 m head: 3,000 L/h
- 35 m head: 2,010 L/h
- 40 m head: 1,320 L/h
- 45 m head: 780 L/h
- 50 m head: 360 L/h
- 55 m head: 60 L/h
- Connections: 1" internal thread
- Dimensions (LxWxH): 402 x 180 x 201 mm
- Weight: 13.8 kg
- Electrical specs: 400 V, 2.0 A
- Shaft power: 0.75 kW, 1.0 hp, 2900 rpm
- Product code: 93.34.046
- Suction head: 9.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Maximum particle size: 2 mm
- Maximum discharge head: 56.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 3000 L/h
- Capacity at 5 meter head: 3000 L/h
-
