The Alpha Pompe 08RA-8" Right-Hand Rotation Pump is a larger self-priming centrifugal pump suitable for similar applications in shipping, industry, construction, and agriculture. It has a cast iron open impeller and housing, stainless steel shaft, and ceramic on carbon mechanical seal, handling contaminated water, sea water, and gas oil up to 90°C. It achieves a maximum flow of 492,000 litres per hour at 10 metres head, with 8" flange connections, weighs 261 kg, and runs at 1500 to 2000 rpm with 28 kW power.
- Description
- Ask a Question
-

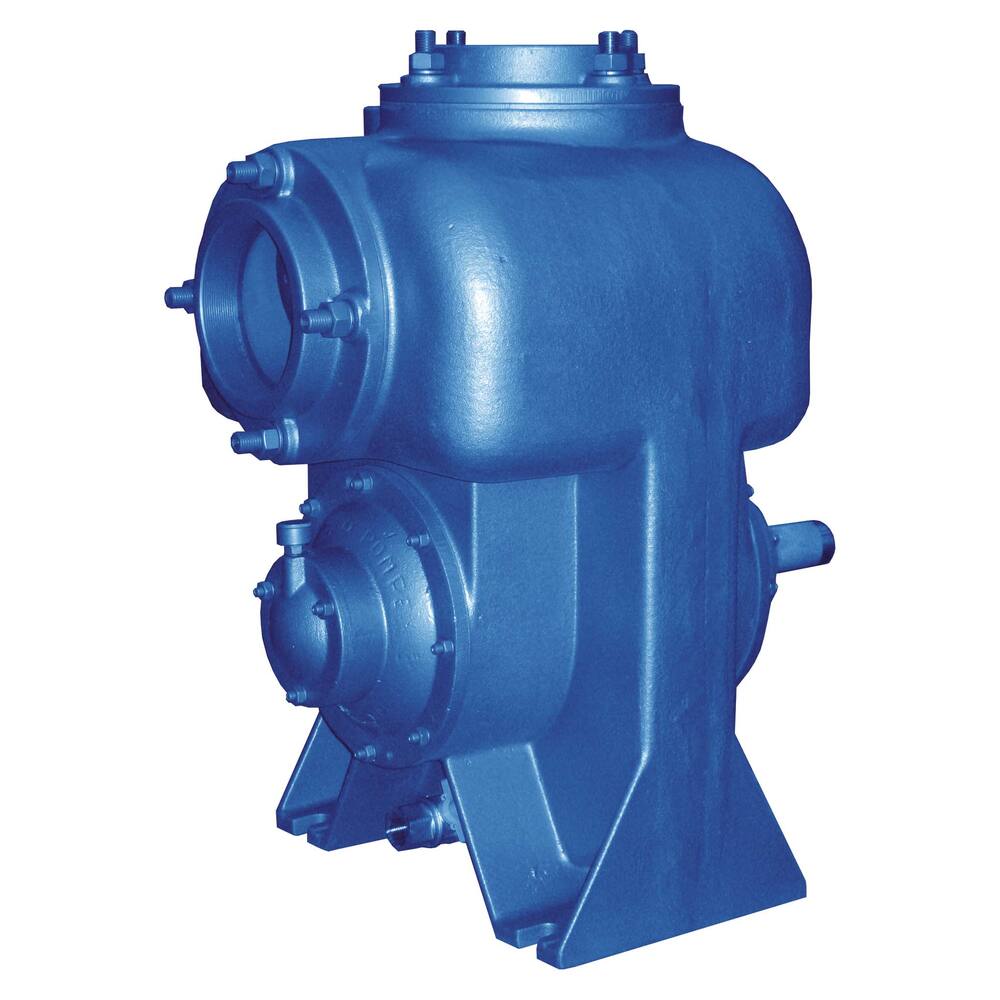

Alpha Pompe 08RA-8" Right-Hand Rotation Pump
This pump is suitable for shipping tasks such as bilge and deck washing, along with sprinkling and dewatering, and is also used in various industrial, construction, and agricultural fields.
- Type: 08RA
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: contaminated water, sea water, gas oil, etc., max temperature 90°C
- Performance:
- 10 metres head: 492,000 litres/hour
- 15 metres head: 463,000 litres/hour
- 20 metres head: 410,000 litres/hour
- 25 metres head: 330,000 litres/hour
- 30 metres head: 132,000 litres/hour
- Connections: 8" flange connection
- Dimensions (LxWxH): 747 x 500 x 864 mm
- Weight: 261 kg
- Shaft diameter: 48 mm
- Shaft power: 28 kW, 38 hp at 1800 rpm
- Speed range: 1500 through 2000 rpm
- Product code: 95.35.080
- Suction head: 7.0 m
- Pipe diameter pressure: 8" flange
- Pipe diameter suction: 8" flange
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 33 mm
- Discharge head max.: 31.5 m
- Free flow: 492,000 L/hour
- Capacity at 5 meters: 492,000 L/hour
-
