The City Jet Pump JS 08MX 230V is a self-priming centrifugal pump with an integrated ejector, designed for pressurizing, garden sprinkling, and transferring clean water up to 40°C. It features a blue technopolymer impeller and housing components, a cast iron pump housing, and a stainless steel shaft, offering durability and reliable performance with a flow rate up to 3,120 L/h at 15 m head and a maximum discharge head of 42 m.
- Description
- Ask a Question
-

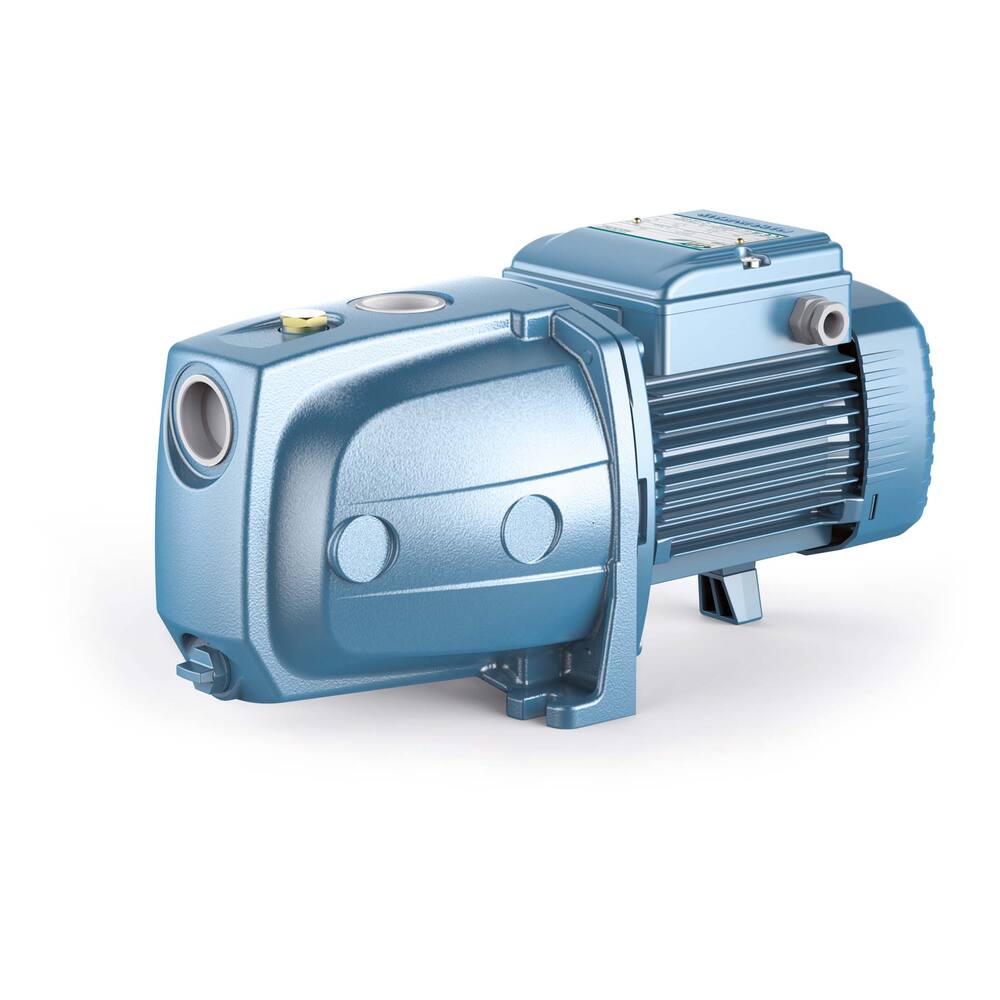

City Jet Pump JS 08MX 230V
The City Jet Pump JS 08MX is a self-priming centrifugal pump with an integrated ejector, designed for pressurizing, garden sprinkling, and transferring clean liquids up to 40°C. It features a blue technopolymer impeller and housing components combined with a cast iron pump housing and stainless steel shaft, ensuring durability and reliable performance.
- Type: JS
- Colour: blue
- Pump type: limited self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: induction motor, 230 volt
- Motor insulation class: F, IP44
- Fuse: inbuilt thermal safeguard, only with 230 volt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller, impeller housing, ejector: technopolymer
- Material pump housing: cast iron
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean water up to 40°C
- Flow rates by head:
- 15 m head: 3,120 L/h
- 20 m head: 2,760 L/h
- 25 m head: 1,920 L/h
- 30 m head: 1,320 L/h
- 35 m head: 840 L/h
- 40 m head: 420 L/h
- Connections: 1" internal thread
- Dimensions (LxWxH): 379 x 160 x 171 mm
- Weight: 10.2 kg
- Amperage: 230 V, 3.9 A
- Shaft power: 0.55 kW, 0.75 hp, 2900 rpm
- Used on Jet pump pressurized water system (97.34.650)
- Product code: 93.34.020
- Suction head: 9.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 42.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow: 3120 L/hour
- Capacity at 5 m: 3120 L/hour
-
