ID
1316740
$ 359.74
1-2 weeks delivery time
-
+
The City Pumps Gas Oil Pump Self-Priming ILM 50 230V is a blue cast iron liquid ring pump designed for clean water and thin oil products like gas oil and petrol, featuring a self-priming design ideal for shipping fuel trim applications. It uses an induction motor at 230 V AC and has a ceramic on carbon mechanical seal with viton. The pump can handle a maximum discharge head of 31.5 meters and provides flow rates up to 2400 liters per hour.
- Description
- Ask a Question
-

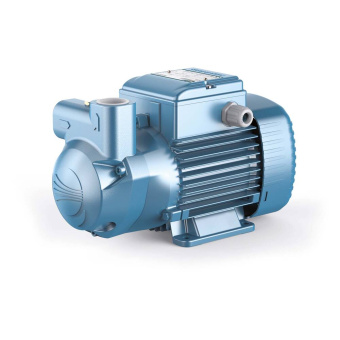

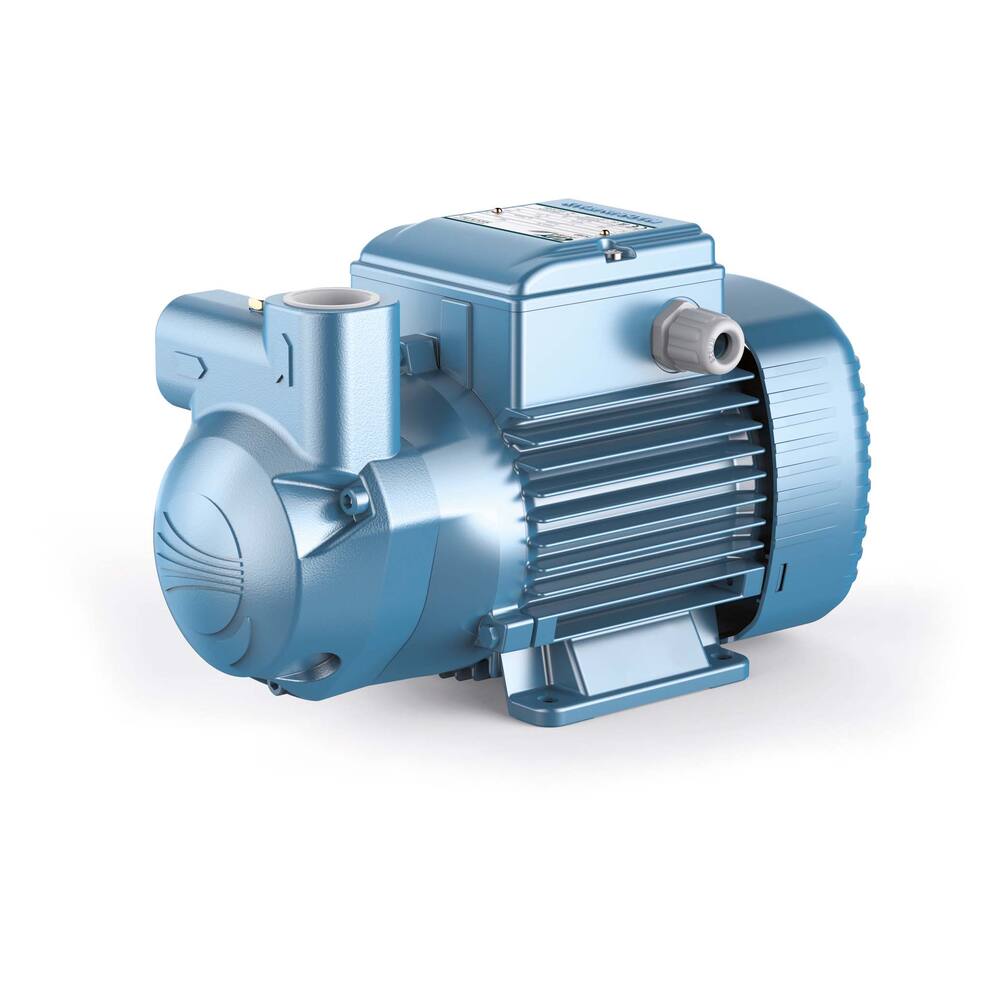

City Pumps Gas Oil Pump Self-Priming ILM 50 230V
This blue cast iron pump is engineered to transport clean water and thin clean oil products such as gas oil and petrol, serving as a fuel trim pump in shipping environments. It features a self-priming design.
- Type: IL
- Colour: blue
- Pump type: liquid ring pump, NOT a centrifugal pump
- Impeller type: turbine impeller, star impeller
- Motor type: induction motor
- Fuse: inbuilt thermal safeguard for 230 volt
- Shaft seal: ceramic on carbon mechanical seal + viton
- Material impeller: brass
- Material impeller housing: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: water, gas oil, and other clean liquids without abrasive particles
- Flow rates by head:
- 10 m head: 2,000 L/h
- 15 m head: 1,590 L/h
- 20 m head: 1,200 L/h
- 25 m head: 780 L/h
- 30 m head: 360 L/h
- Particle size: zero
- Dimensions (LxWxH): approx. 260 x 120 x 159 mm
- Weight: 7.3 kg
- Amperage: 230 V, 3.0 A
- Shaft power: 0.375 kW, 0.5 hp, 2800 rpm
- Cable: none
- Product code: 93.25.071
- Suction head: 4.0 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 3/4"
- Pump type: Dry set-up pump, self-priming
- Medium: Gasoil
- Particle size allowed: 2 mm
- Discharge head Max.: 31.5 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 2400 L/hour
- Capacity at 5 meter: 2400 L/hour
-
