The City Pumps Gas Oil Pump Self-Priming IL 50 400V is a cast iron liquid ring pump for transferring clean water and thin oil products such as gas oil and petrol, commonly used in shipping as a fuel trim pump. It operates on 400 V AC with an induction motor and features a ceramic on carbon mechanical seal with viton. This self-priming pump supports a maximum discharge head of 31.5 meters and delivers flow rates up to 2400 liters per hour.
- Description
- Ask a Question
-

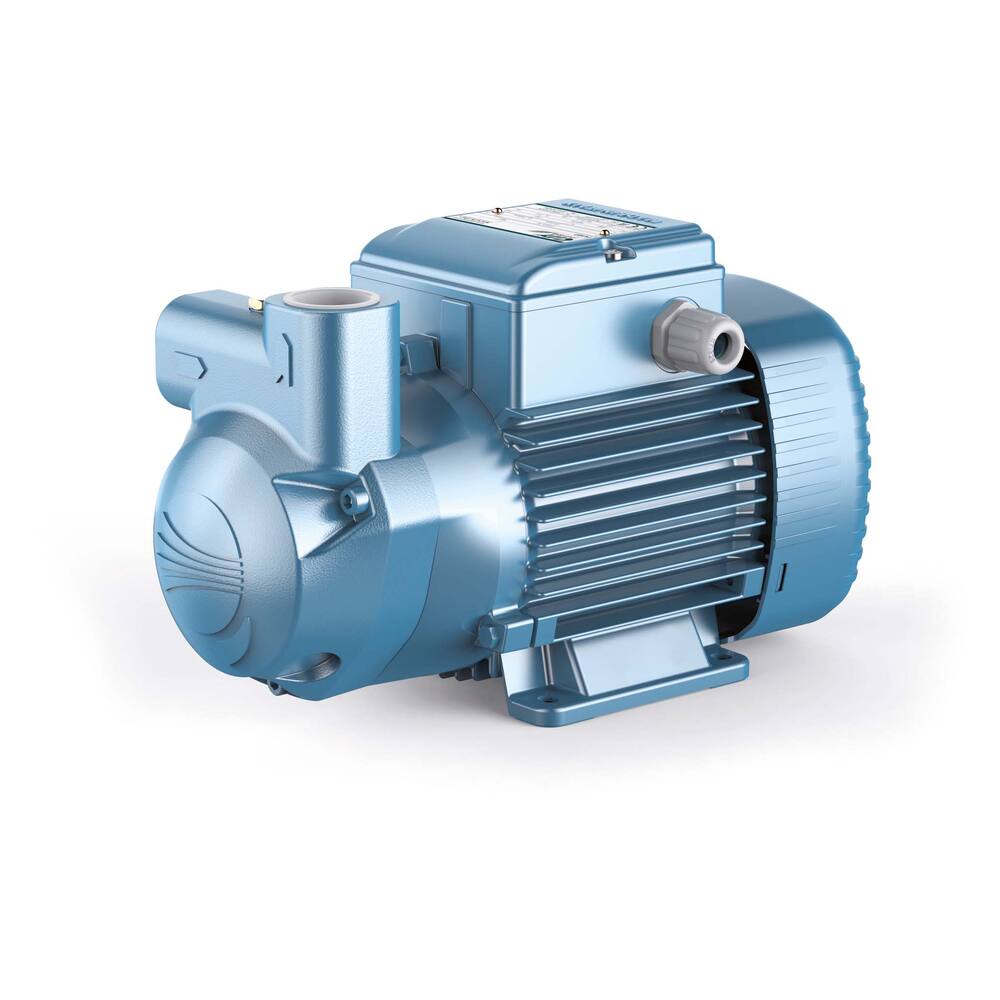

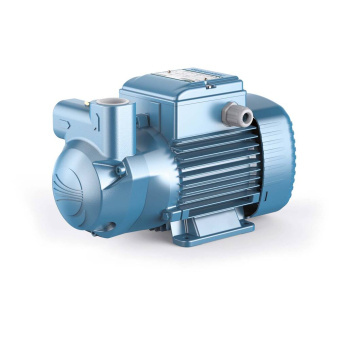

City Pumps Gas Oil Pump Self-Priming IL 50 400V
This cast iron pump is designed for transferring clean water and thin clean oil products like gas oil and petrol. It is commonly utilized in shipping as a fuel trim pump.
- Type: IL
- Colour: blue
- Pump type: liquid ring pump, NOT a centrifugal pump
- Impeller type: turbine impeller, star impeller
- Motor type: induction motor
- Fuse: inbuilt thermal safeguard for 230 volt
- Shaft seal: ceramic on carbon mechanical seal + viton
- Material impeller: brass
- Material impeller housing: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Suitable liquids: water, gas oil and other clean liquids without abrasive particles
- Performance at various heads:
- 10 metres head: 2,000 litres per hour
- 15 metres head: 1,590 litres per hour
- 20 metres head: 1,200 litres per hour
- 25 metres head: 780 litres per hour
- 30 metres head: 360 litres per hour
- Particle size: zero
- Dimensions (LxWxH): approx. 260 x 120 x 159 mm
- Weight: 7.3 kg
- Electrical specs: 400 V, 1.2 A amperage
- Shaft power: 0.375 kW, 0.5 hp, 2800 rpm
- Cable: none
- Product code: 93.25.073
- Suction head: 4.0 m
- Pipe diameter (pressure and suction): 3/4"
- Pump type: Dry set-up pump, self-priming
- Medium: Gasoil
- Particle size: 2 mm
- Maximum discharge head: 31.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 2400 L/hour
- Capacity at 5 meters: 2400 L/hour
-
