ID
1316743
$ 365.10
1-2 weeks delivery time
-
+
The City Jet Pump JS 10MX 230V is a powerful self-priming centrifugal pump with an integrated ejector, ideal for garden sprinkling, pressurizing, and moving clean water up to 40°C. It combines technopolymer parts with a cast iron housing and stainless steel shaft, delivering enhanced power and flow capacity with a maximum discharge head of 56 m and flow rates up to 3,000 L/h at 30 m head.
- Description
- Ask a Question
-

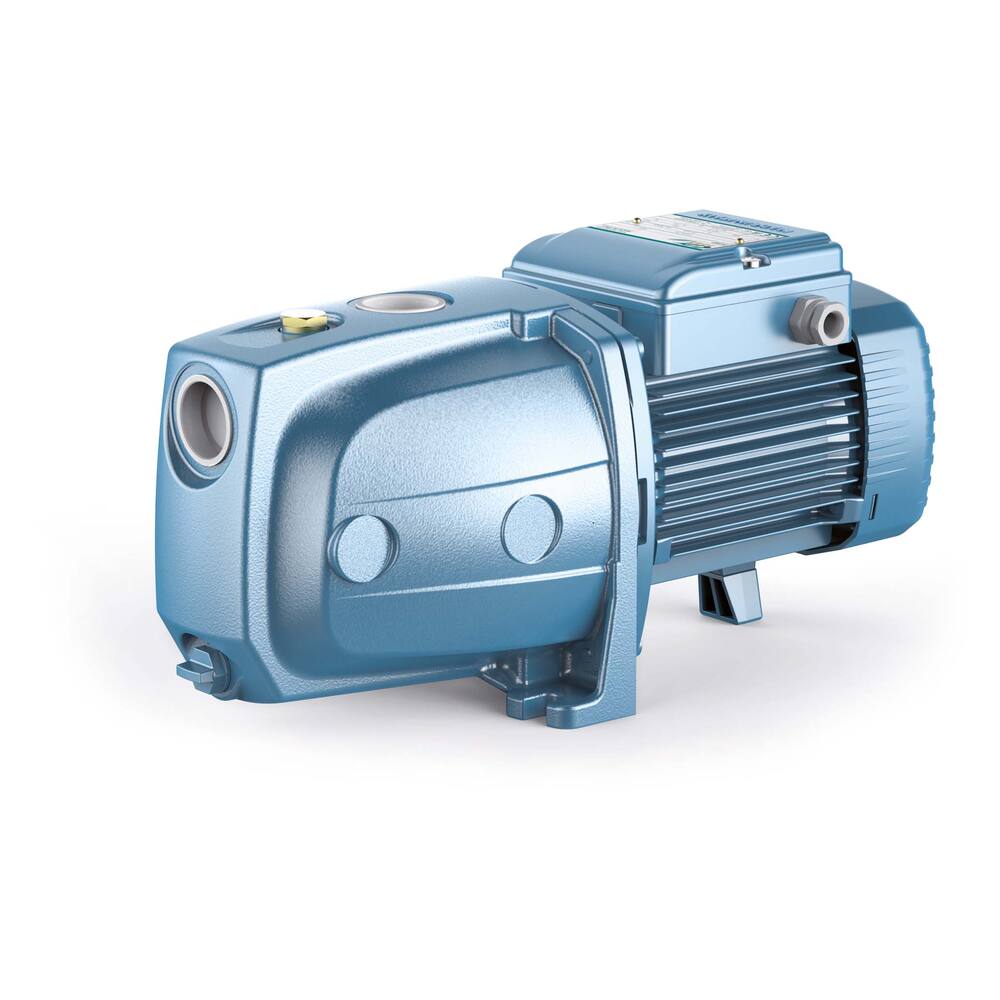

City Jet Pump JS 10MX 230V
The City Jet Pump JS 10MX is a powerful self-priming centrifugal pump with an integrated ejector, ideal for garden sprinkling, pressurizing, and moving clean liquids up to 40°C. With enhanced power and flow capacity, it features technopolymer components and a cast iron housing combined with a stainless steel shaft for extended durability and efficient operation.
- Type: JS
- Colour: blue
- Pump type: limited self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: induction motor, 230 volt
- Motor insulation class: F, IP44
- Fuse: inbuilt thermal safeguard, only with 230 volt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller, impeller housing, ejector: technopolymer
- Material pump housing: cast iron
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean water up to 40°C
- Flow rates by head:
- 30 m head: 3,000 L/h
- 35 m head: 2,010 L/h
- 40 m head: 1,320 L/h
- 45 m head: 780 L/h
- 50 m head: 360 L/h
- 55 m head: 60 L/h
- Connections: 1" internal thread
- Dimensions (LxWxH): 402 x 180 x 201 mm
- Weight: 13.8 kg
- Amperage: 230 V, 4.7 A
- Shaft power: 0.75 kW, 1.0 hp, 2900 rpm
- Product code: 93.34.041
- Suction head: 9.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 56.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow: 3000 L/hour
- Capacity at 5 m: 3000 L/hour
-
