The DAB E.SYBOX Mini represents modern pressurized water technology with integrated frequency regulation and smartphone connectivity via the H2D app. Operating at 4,500 L/h free flow with 230V AC power, its brushless motor and programmable pressure settings (1.0-6.0 bar) deliver energy-efficient, quiet operation for up to six tapping points.
- Description
- Ask a Question
-

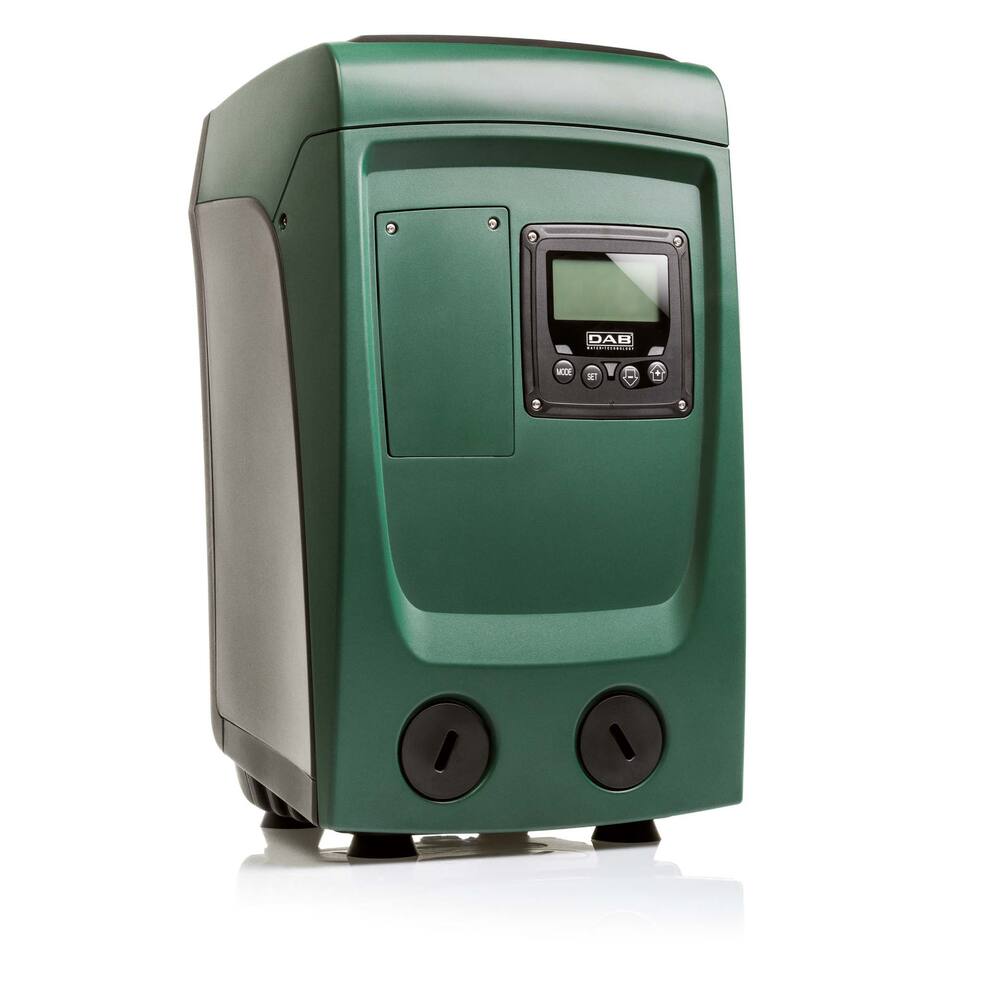

DAB Sensor Pressurized Water System E.Sybox Mini 230V
The E.SYBOX Mini is a modern pressurized water system designed with quiet operation and compact installation in mind, eliminating the need for a pressure tank. It features a fully integrated hydraulic system controlled by a programmable frequency regulator, optimizing performance and energy efficiency. The system’s Italian-designed housing is hermetically sealed, and the frequency regulator maintains constant pressure while minimizing noise, vibration, and energy use.
- Type: E.SYBOX
- Colour: dark green
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Motor type: brushless motor
- Fuse: built-in thermal protection
- Seal: mechanical seal (ceramic on carbon)
- Material impeller: plastic
- Material pump housing: plastic
- Material pump shaft: stainless steel
- Liquids: clean water
- Suction head: 8.0 meters when using foot valve
- Pressure tank type: built-in 1-litre membrane tank
- Switch-on pressure: 2.7 bar: 3,300 litres per hour (default)
- Switch-off pressure: Adjustable 1.0 to 6.0 bar via display
- Switch-off pressure at 1.0 bar: 4,500 litres per hour
- Switch-off pressure at 5.5 bar: 1,300 litres per hour
- Dimensions: LxWxH = 236 x 263 x 439 mm
- Weight: 14.6 kg
- Insulation class: IPX4
- Current: 4.8 A (depending on setting)
- Shaft power: 0.85 kW, 1.2 hp, 3000 rpm
- Product code: 97.33.608
- EAN code: 8059893148124
- Number of tapping points: Geyser and 6 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 27.0 m
- Voltage: 230 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 4500
- Capacity at 5 meter (L/hour): 3300
-
