ID
1316798
$ 2,358.20
1-2 weeks delivery time
-
+
The redesigned DAB E.SYBOX enhances the compact design with improved navigation display and reduced power consumption while maintaining smart connectivity. Operating at 6,600 L/h maximum capacity with 230V AC power, its integrated frequency regulator provides adjustable pressure control from 1.0-6.0 bar for demanding water supply applications.
- Description
- Ask a Question
-

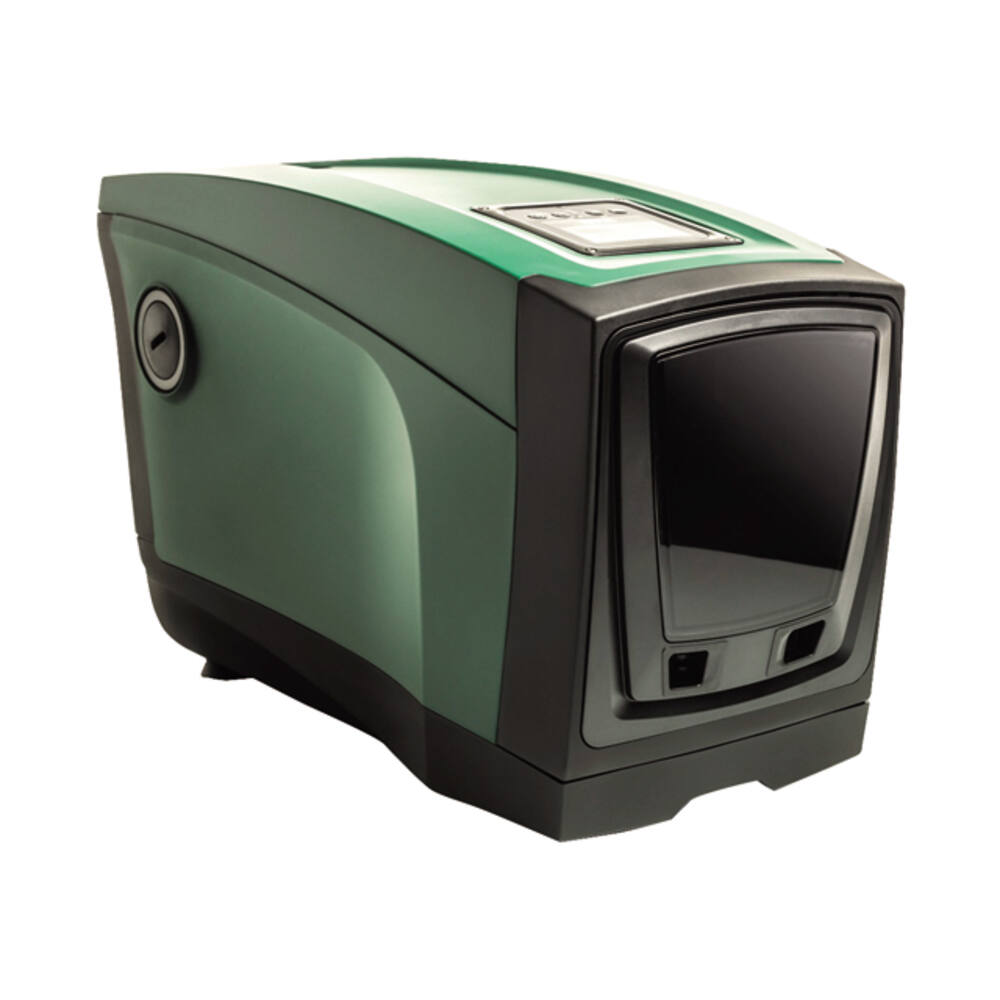

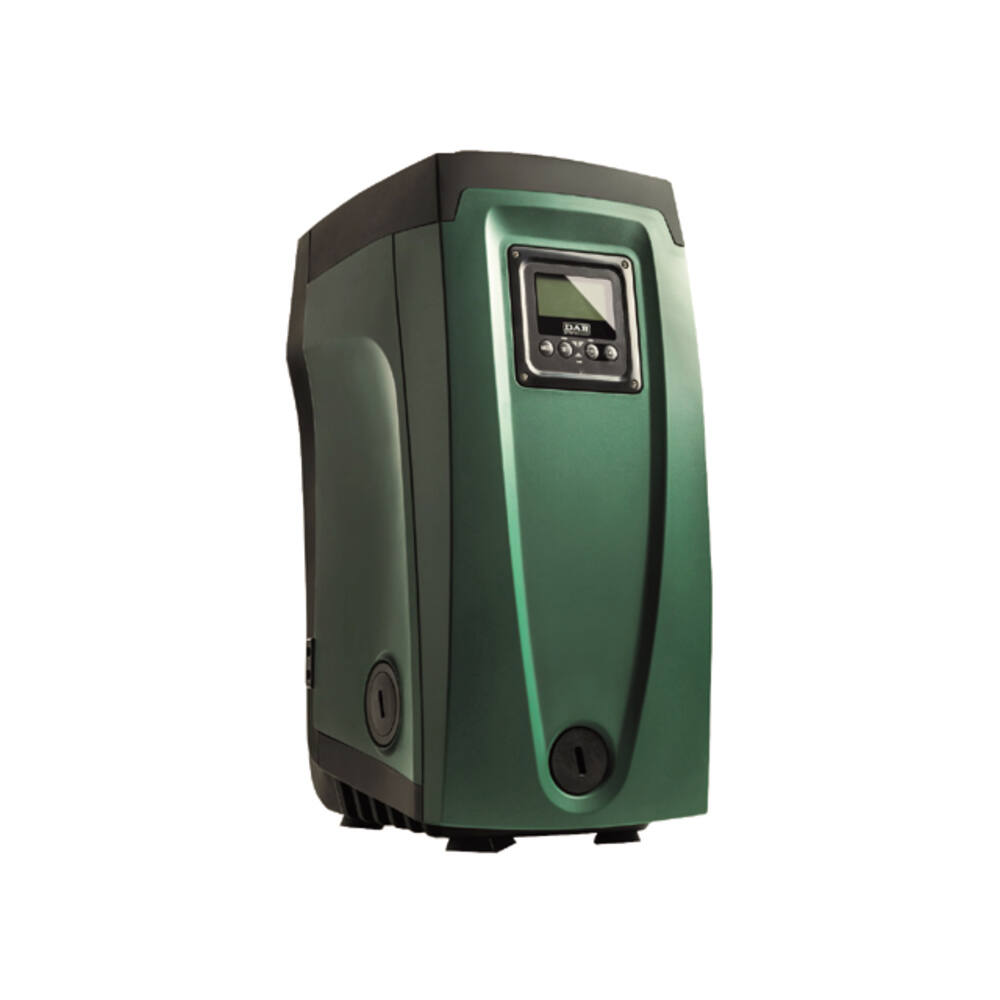

DAB Compact Sensor Pressurized Water System E.Sybox 230V
The redesigned E.SYBOX offers enhanced navigation with a new display, reduced power consumption, and integrated connectivity via the H2D application. This modern pressurized water system maintains quiet operation and compact design without a pressure tank. Its fully integrated hydraulic system uses a programmable frequency regulator to deliver consistent pressure, reducing noise, vibration, and energy use, while housed in a sleek Italian-style casing.
- Type: E.SYBOX
- Colour: dark green
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Motor type: brushless motor
- Fuse: built-in thermal protection
- Seal: mechanical seal (ceramic on carbon)
- Material impeller: plastic
- Material pump housing: plastic
- Material pump shaft: stainless steel
- Liquids: clean water
- Suction head: 8.0 meters when using foot valve
- Pressure tank type: built-in 2-litre membrane tank
- Switch-on pressure: 3.0 bar: 5,100 litres per hour (default)
- Switch-off pressure: Adjustable 1.0 to 6.0 bar via display
- Switch-off pressure at 1.0 bar: 6,600 litres per hour
- Switch-off pressure at 6.0 bar: 1,600 litres per hour
- Dimensions: LxWxH = 355 x 265 x 580 mm
- Weight: 27.0 kg
- Insulation class: IPX4
- Current: 10.0 A (depending on setting)
- Shaft power: 1.55 kW, 2.1 hp, 3000 rpm
- Product code: 97.33.615
- EAN code: 8059893312273
- Number of tapping points: Geyser and 6 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 30.0 m
- Voltage: 230 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 6600
- Capacity at 5 meter (L/hour): 5100
-
