ID
1315021
$ 2,851.82
1-2 weeks delivery time
-
+
The CEM Elettromeccanica Gearwheel Pump Gear 3000/50L-10BM is suitable for moving low viscosity lubricating liquids without solids or abrasives, including diesel and spindle oils. This blue gearwheel pump has a non-adjusted built-in overflow valve (max 10 bar), limited self-priming, and a 230 V induction motor. It features steel gearwheels, cast steel housing, and toughened steel shaft, supports liquids up to 140°C, and provides a free flow rate of 3000 L/hour with a suction head of 4.0 m. The pump weighs 24 kg and has a shaft power of 1.5 kW at 1400 rpm.
- Description
- Ask a Question
-

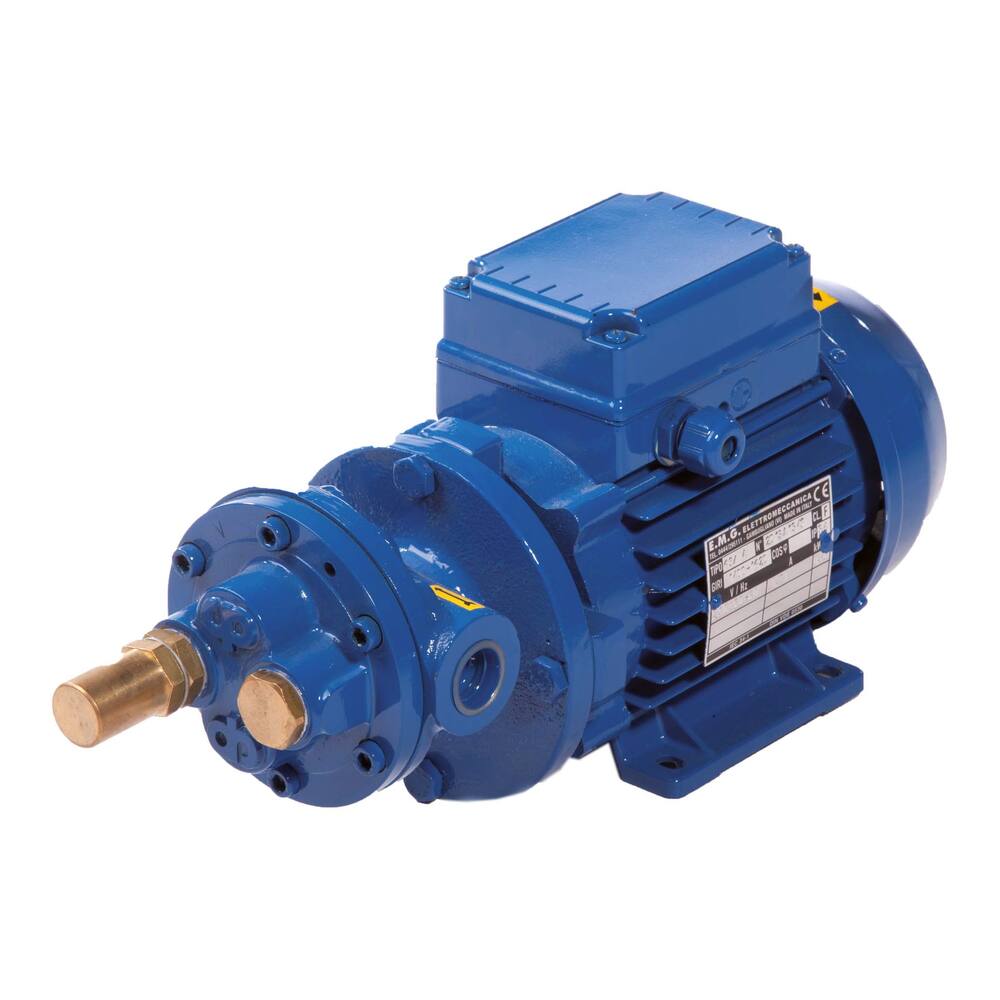

CEM Elettromeccanica Gearwheel Pump Gear 3000/50L-10BM
This gearwheel pump is suitable for moving low viscosity lubricating liquids without solids or abrasive materials, including diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil. It incorporates a non-adjusted inbuilt overflow valve (max 10 bar) and uses a limited self-priming gearwheel impeller. The motor is a 230 volt induction type.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), NOT ADJUSTED
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 230 volt induction motor
- Fuse: NOT inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (also available in bronze or stainless steel for food industry)
- Material pump housing: cast steel* (also available in bronze or stainless steel for food industry)
- Material pump shaft: toughened steel* (also available in bronze or stainless steel for food industry)
- Liquids handled: clean lubricating oil and neutral low viscosity liquids up to 140°C
- Viscosity: max 20 Engler, significantly influences capacity
- Capacities measured with water
- Suction head: depends on viscosity
- Particle size: zero
- Dimensions (LxWxH): 525 x 200 x 260 mm
- Weight: 24 kg
- Amperage: 230 V, 9.3 A
- Shaft power: 1.5 kW, 2 hp, 1400 rpm
- Product code: 93.90.550
- Suction head: 4.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Toothed wheel pump
- Medium: Lubricating oil
- Particle size: 2 mm
- Max discharge head: 100.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 3000 L/hour
- Capacity at 5 meters: 3000 L/hour
-
