ID
1315028
$ 1,447.32
1-2 weeks delivery time
-
+
The CEM Elettromeccanica J-Mini 230M/20X is designed for modern water pressure needs on 230V AC. This very quiet system features a brushless motor ideal for drinking water installations, with a compact design that fits small spaces. It includes a 20-litre stainless steel vessel and provides 3,300 L/h capacity with 2.0-3.0 bar pressure control.
- Description
- Ask a Question
-

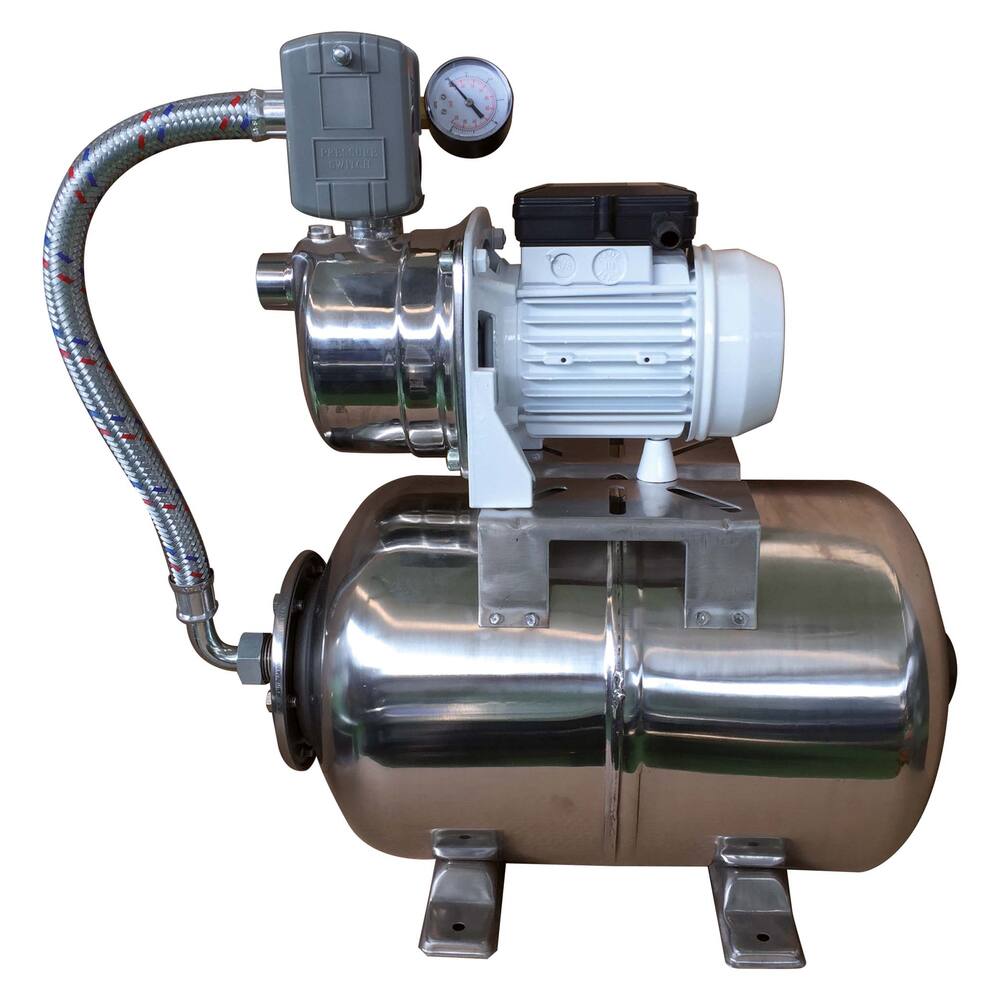

CEM Elettromeccanica Pressurized Water System J-Mini 230M/20X 230V
Designed for modern water pressure needs, this system features a very quiet pump ideal for drinking water installations. It fits perfectly in small spaces due to its compact design without a large pressure vessel, although versions with 2 or 20 litre stainless steel vessels are available. The pump operates automatically with tap usage and includes a non-return valve for safety.
- Type: J-Mini
- Colour: blue, white and stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Fuse: built-in thermal fuse at 230 V (not at 24 V)
- Shaft seal: carbon ceramic mechanical seal and NBR
- Material impeller: Noryl
- Material pump housing: Stainless steel 304
- Material pump shaft: Stainless steel 316
- Liquids handled: clean water, max 40 °C
- 12-volt version available on request
- Suction height: 8.0 metres using foot valve
- Cut-in pressure: 2.0 bar (3,300 L/h, standard setup)
- Cut-out pressure: 3.0 bar
- Dimensions (l x w x h): 380 x 160 x 331 mm (without boiler)
- Weight: 8.5 kg (without boiler)
- Insulation class: IP55
- Motor type: brushless motor
- Amperage: 3.6 A
- Shaft power: 0.55 kW, 0.75 hp, 2,800 rpm
- Product code: 97.34.233
- Number of tapping points: geyser and 3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Model: 20 Litre stainless steel container
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max.: 35.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP55
- ATEX certified: No
- Separate float switch: not included
- Free flow: 3,300 L/hour
- Capacity at 5 metres: 3,300 L/hour
-
