The CEM Elettromeccanica J-Mini 230M/EPC operates on 230V AC mains voltage. This advanced system features a low-noise brushless motor optimized for drinking water applications, providing 3,300 L/h capacity. It operates with 2.0-3.0 bar pressure control and includes automatic start/stop functionality with a non-return valve.
- Description
- Ask a Question
-

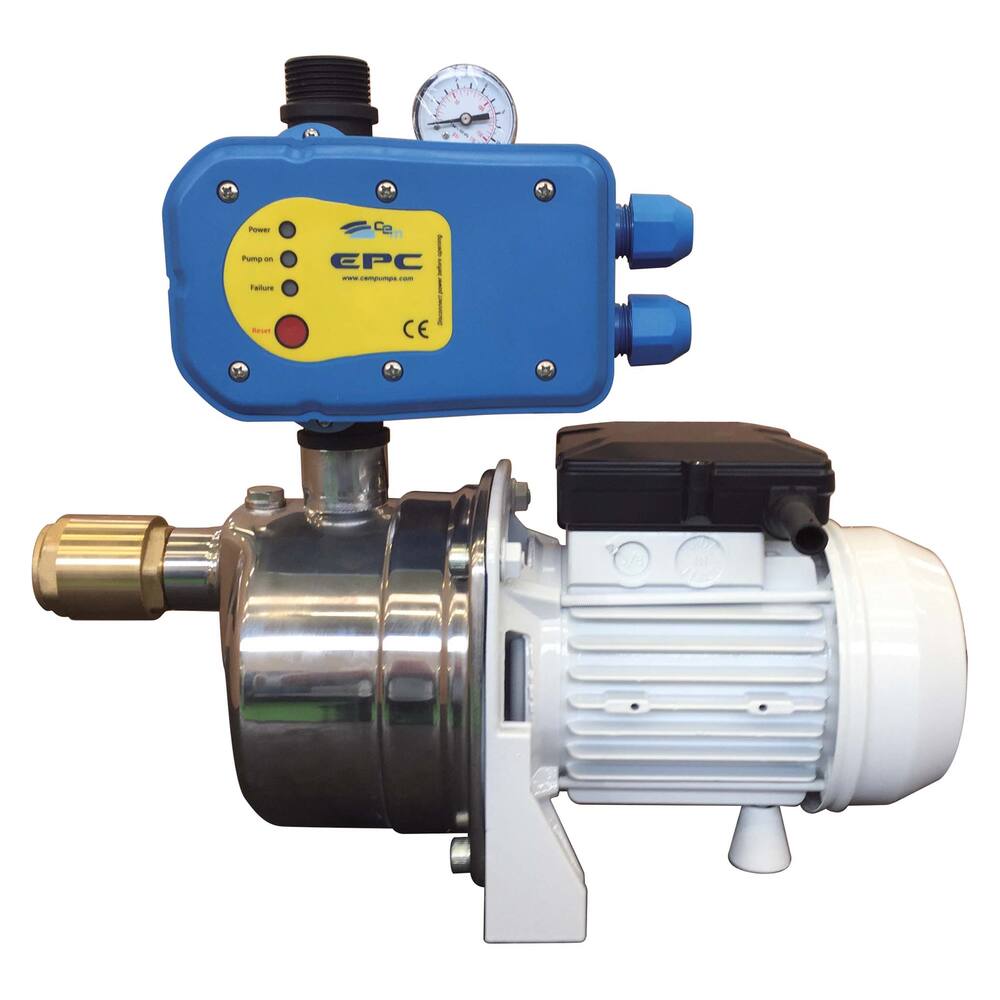

CEM Elettromeccanica Pressurized Water System J-Mini 230M/EPC 230V
This advanced water pressure system features a low-noise pump optimized for drinking water. Its design without a large pressure vessel makes it perfect for confined spaces, with optional 2 or 20 litre stainless steel vessels. The pump runs only when the tap is open and stops afterward, and it includes a non-return valve.
- Type: J-Mini
- Colour: blue, white and stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Fuse: built-in thermal fuse at 230 volt, not at 24 volt
- Shaft seal: carbon ceramic mechanical seal and NBR
- Material impeller: Noryl
- Material pump housing: Stainless steel 304
- Material pump shaft: Stainless steel 316
- Liquids: clean water, maximum 40 °C
- 12-volt version available on request
- Suction height: 8.0 metre using foot valve
- Cut-in pressure: 2.0 bar; 3,300 L/h (standard setup)
- Cut-out pressure: 3.0 bar
- Dimensions (l x w x h): 380 x 160 x 331 mm (without boiler)
- Weight: 8.5 kg (without boiler)
- Insulation class: IP55
- Motor type: brushless motor
- Amperage: 3.6 A
- Shaft power: 0.55 kW, 0.75 hp, 2,800 tpm
- Product code: 97.34.231
- Number of tapping points: Geyser and 3 tapping points
- Suction head: 8.0 m
- Pipe diameter (pressure and suction): 1"
- Model: No container
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head max.: 35.0 m
- Voltage: 230 V AC
- Frequency: 50 Hz
- Protection class: IP55
- ATEX: No
- Free flow: 3300 L/hour
- Capacity at 5 meter: 3300 L/hour
-
