ID
1315023
$ 1,576.08
1-2 weeks delivery time
-
+
The CEM J-Mini 24/EPC delivers ultra-quiet operation for drinking water systems in compact installations. Operating at 3,300 L/h with 24V DC power, its self-priming centrifugal pump with permanent magnet motor provides automatic pressure control between 2.0-3.0 bar without requiring large pressure vessels.
- Description
- Ask a Question
-

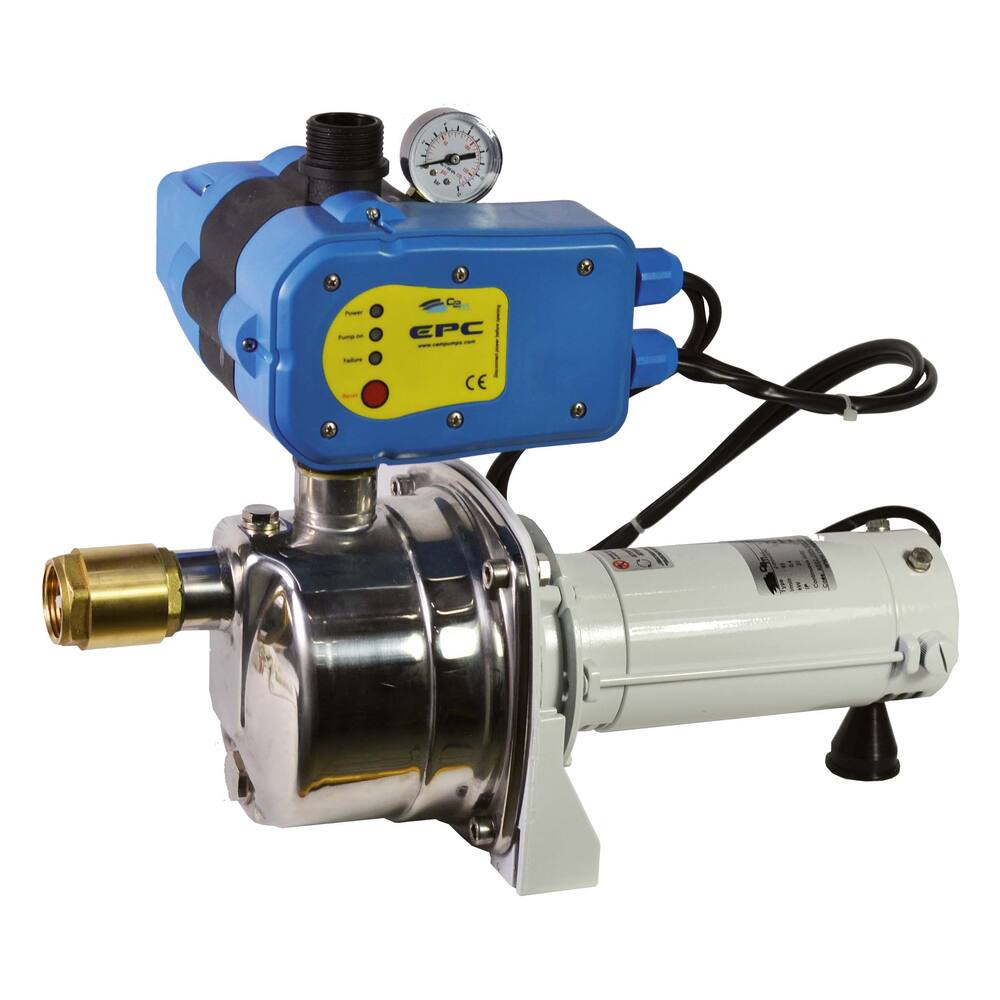

CEM Elettromeccanica Pressurized Water System J-Mini 24/EPC 24V
This modern water pressure installation is equipped with a very low-noise pump suitable for drinking water systems. It is especially convenient for small spaces due to the absence of a large pressure vessel, though optional 2 or 20 litre stainless steel pressure vessels are available. The pump activates when the tap opens and stops when it closes, and includes a non-return valve for safety.
- Type: J-Mini
- Colour: blue, white and stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Fuse: built-in thermal fuse at 230 volt (not at 24 volt)
- Shaft seal: carbon ceramic mechanical seal and NBR
- Material impeller: Noryl
- Material pump housing: Stainless steel 304
- Material pump shaft: Stainless steel 316
- Liquids: clean water, max 40 °C
- 12-volt version available on request
- Suction height: 8.0 meters using foot valve
- Cut-in pressure: 2.0 bar (3,300 L/h standard setup)
- Cut-out pressure: 3.0 bar
- Dimensions (LxWxH): 430 x 160 x 331 mm (without boiler)
- Weight: 7.0 kg (without boiler)
- Insulation class: IP23
- Motor type: permanent magnet motor
- Amperage: 16.0 A
- Shaft power: 0.4 kW, 0.5 hp, 2,600 rpm
- Product code: 97.34.024
- Number of tapping points: geyser and 3 tapping points
- Pipe diameter pressure and suction: 1"
- Model: no container
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max.: 28.0 m
- Voltage: 24 V
- Current: DC
- Protection class: IP23
- Free flow: 3300 L/hour
- Capacity at 5 meter: 3300 L/hour
-
