The CEM Elettromeccanica J-Mini 24/20X is a compact pressurized water system operating on 24V DC. It features a quiet self-priming centrifugal pump with a permanent magnet motor, delivering 3,300 L/h at 2.0-3.0 bar pressure. The system includes a 20-litre stainless steel pressure vessel and is ideal for small spaces with its space-saving design and automatic operation.
- Description
- Ask a Question
-

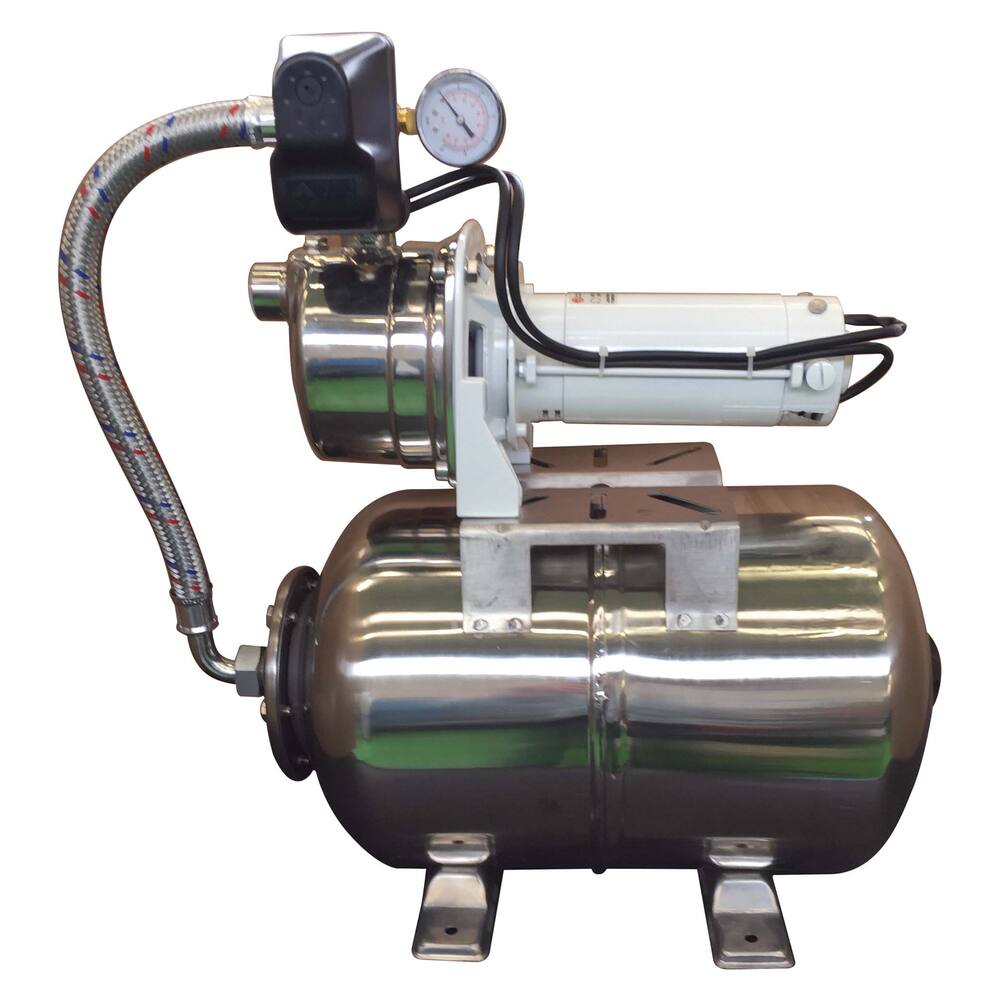

CEM Elettromeccanica Pressurized Water System J-Mini 24/20X 24V
This compact and modern water pressure system offers quiet operation and is ideal for small spaces due to its lack of a large pressure vessel. It can be equipped with either a 2 or 20 litre stainless steel pressure vessel. The pump automatically activates when the tap opens and stops when it closes, including a non-return valve for added reliability.
- Type: J-Mini
- Colour: blue, white and stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Fuse: built-in thermal fuse at 230 volt, not at 24 volt
- Shaft seal: carbon ceramic mechanical seal and NBR
- Material impeller: Noryl
- Material pump housing: Stainless steel 304
- Material pump shaft: Stainless steel 316
- Liquids: clean water, maximum 40 °C
- 12-volt version available on request
- Suction height: 8.0 metre using foot valve
- Cut-in pressure: 2.0 bar; 3,300 L/h (standard setup)
- Cut-out pressure: 3.0 bar
- Dimensions (l x w x h): 430 x 160 x 331 mm (without boiler)
- Weight: 7.0 kg (without boiler)
- Insulation class: IP23
- Motor type: permanent magnet motor
- Amperage: 16.0 A
- Shaft power: 0.4 kW, 0.5 hp, 2,600 tpm
- Product code: 97.34.026
- Number of tapping points: Geyser and 3 tapping points
- Suction head: 8.0 m
- Pipe diameter (pressure and suction): 1"
- Model: 20 Litre stainless steel container
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head max.: 28.0 m
- Voltage: 24 V DC
- Protection class: IP23
- ATEX: No
- Free flow: 3300 L/hour
- Capacity at 5 meter: 3300 L/hour
-
