The CEM J-Mini 24/2X includes a 2-liter stainless steel pressure vessel for enhanced water supply stability. Operating identically to the EPC version at 3,300 L/h with 24V DC power, it provides the same quiet operation and automatic pressure control between 2.0-3.0 bar with integrated non-return valve safety features.
- Description
- Ask a Question
-

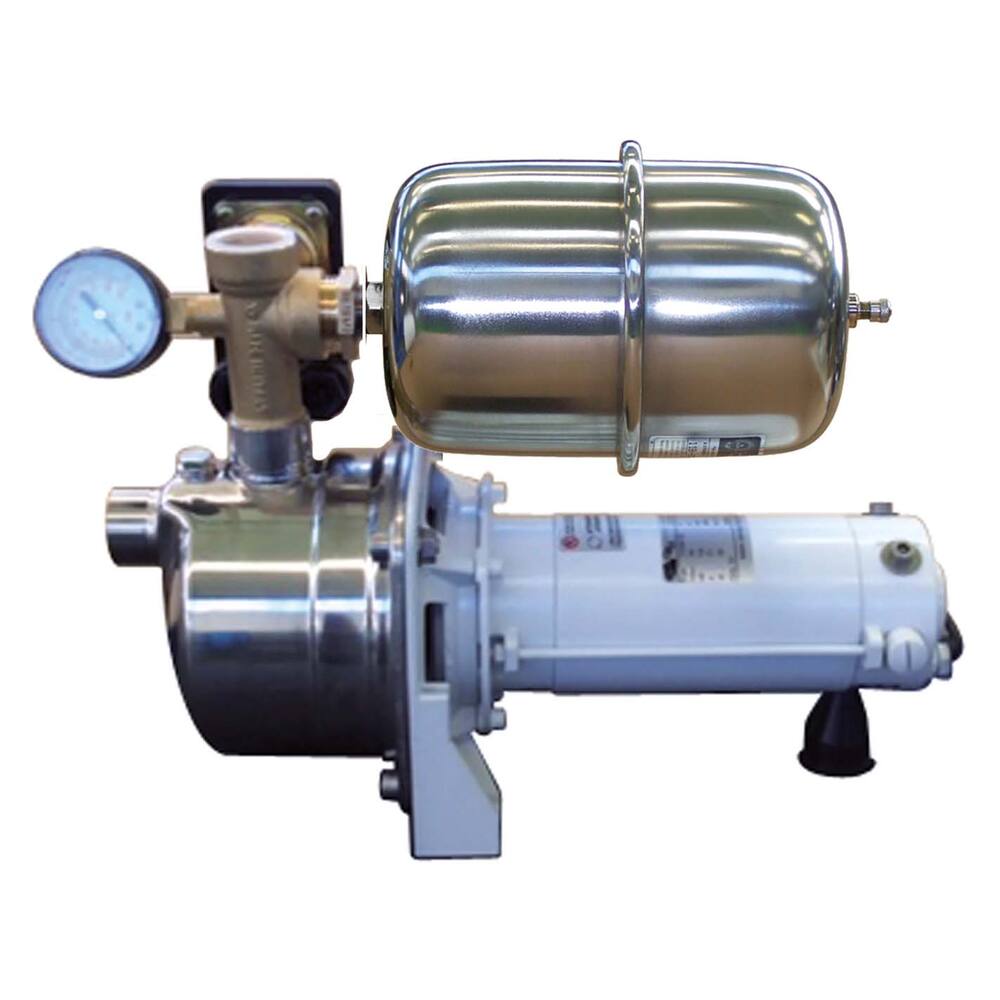

CEM Elettromeccanica Pressurized Water System J-Mini 24/2X 24V
This modern water pressure system is designed for quiet operation in drinking water applications and is perfect for small spaces due to the lack of a large pressure vessel. It comes with a 2 litre stainless steel pressure vessel and includes a non-return valve. The pump starts when the tap opens and stops when it closes.
- Type: J-Mini
- Colour: blue, white and stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Fuse: built-in thermal fuse at 230 volt (not at 24 volt)
- Shaft seal: carbon ceramic mechanical seal and NBR
- Material impeller: Noryl
- Material pump housing: Stainless steel 304
- Material pump shaft: Stainless steel 316
- Liquids: clean water, max 40 °C
- 12-volt version available on request
- Suction height: 8.0 meters using foot valve
- Cut-in pressure: 2.0 bar (3,300 L/h standard setup)
- Cut-out pressure: 3.0 bar
- Dimensions (LxWxH): 430 x 160 x 331 mm (without boiler)
- Weight: 7.0 kg (without boiler)
- Insulation class: IP23
- Motor type: permanent magnet motor
- Amperage: 16.0 A
- Shaft power: 0.4 kW, 0.5 hp, 2,600 rpm
- Product code: 97.34.025
- Number of tapping points: geyser and 3 tapping points
- Pipe diameter pressure and suction: 1"
- Model: 2 litre stainless steel container
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max.: 28.0 m
- Voltage: 24 V
- Current: DC
- Protection class: IP23
- Free flow: 3300 L/hour
- Capacity at 5 meter: 3300 L/hour
-
