The CEM Elettromeccanica J-Mini 230M/2X is a modern pressurized water system running on 230V AC. It features a compact design without a large pressure vessel, equipped with a 2-litre stainless steel container. The brushless motor delivers 3,300 L/h with 2.0-3.0 bar pressure control and includes automatic operation with non-return valve protection.
- Description
- Ask a Question
-

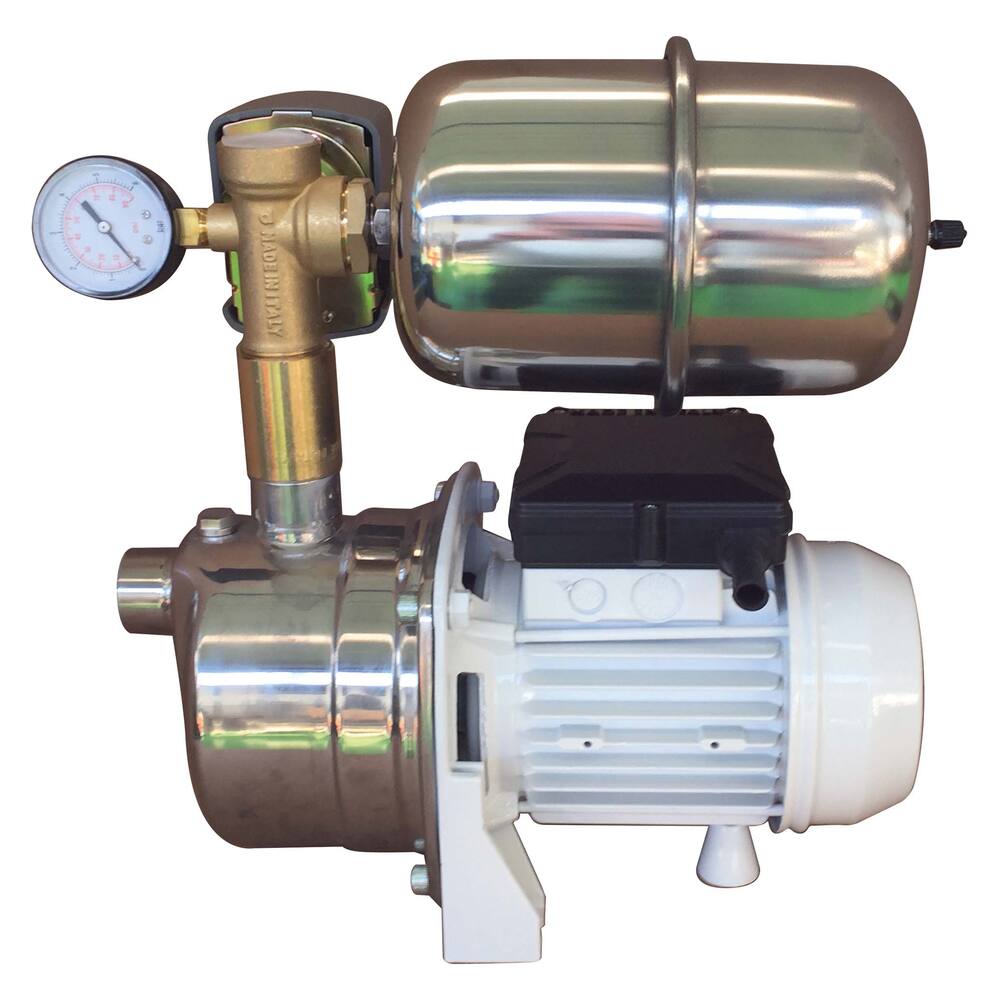

CEM Elettromeccanica Pressurized Water System J-Mini 230M/2X 230V
This modern pressurized water system combines efficient, quiet pumping with a compact design that saves space by omitting a large pressure vessel. It is available with a 2 litre stainless steel pressure vessel and includes a non-return valve. The pump operates only during water demand, stopping promptly when the tap closes.
- Type: J-Mini
- Colour: blue, white and stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Fuse: built-in thermal fuse at 230 volt, not at 24 volt
- Shaft seal: carbon ceramic mechanical seal and NBR
- Material impeller: Noryl
- Material pump housing: Stainless steel 304
- Material pump shaft: Stainless steel 316
- Liquids: clean water, maximum 40 °C
- 12-volt version available on request
- Suction height: 8.0 metre using foot valve
- Cut-in pressure: 2.0 bar; 3,300 L/h (standard setup)
- Cut-out pressure: 3.0 bar
- Dimensions (l x w x h): 380 x 160 x 331 mm (without boiler)
- Weight: 8.5 kg (without boiler)
- Insulation class: IP55
- Motor type: brushless motor
- Amperage: 3.6 A
- Shaft power: 0.55 kW, 0.75 hp, 2,800 tpm
- Product code: 97.34.232
- Number of tapping points: Geyser and 3 tapping points
- Suction head: 8.0 m
- Pipe diameter (pressure and suction): 1"
- Model: 2 Litre stainless steel container
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head max.: 35.0 m
- Voltage: 230 V AC
- Frequency: 50 Hz
- Protection class: IP55
- ATEX: No
- Free flow: 3300 L/hour
- Capacity at 5 meter: 3300 L/hour
-
