ID
1315022
$ 2,822.01
1-2 weeks delivery time
-
+
The CEM Elettromeccanica Gearwheel Pump Gear 3000/50L-10BT efficiently transports low viscosity lubricating liquids free of solids or abrasives, such as diesel and light lubricating oils. It includes a blue gearwheel pump with a built-in, non-adjustable overflow valve (max 10 bar), limited self-priming, and a 400 V short circuit motor. The pump uses steel gearwheels, cast steel housing, and toughened steel shaft, handles liquids up to 140°C, and delivers a free flow rate of 3000 L/hour with a suction head of 4.0 m. It weighs 24 kg and operates at 1.5 kW power and 1400 rpm.
- Description
- Ask a Question
-

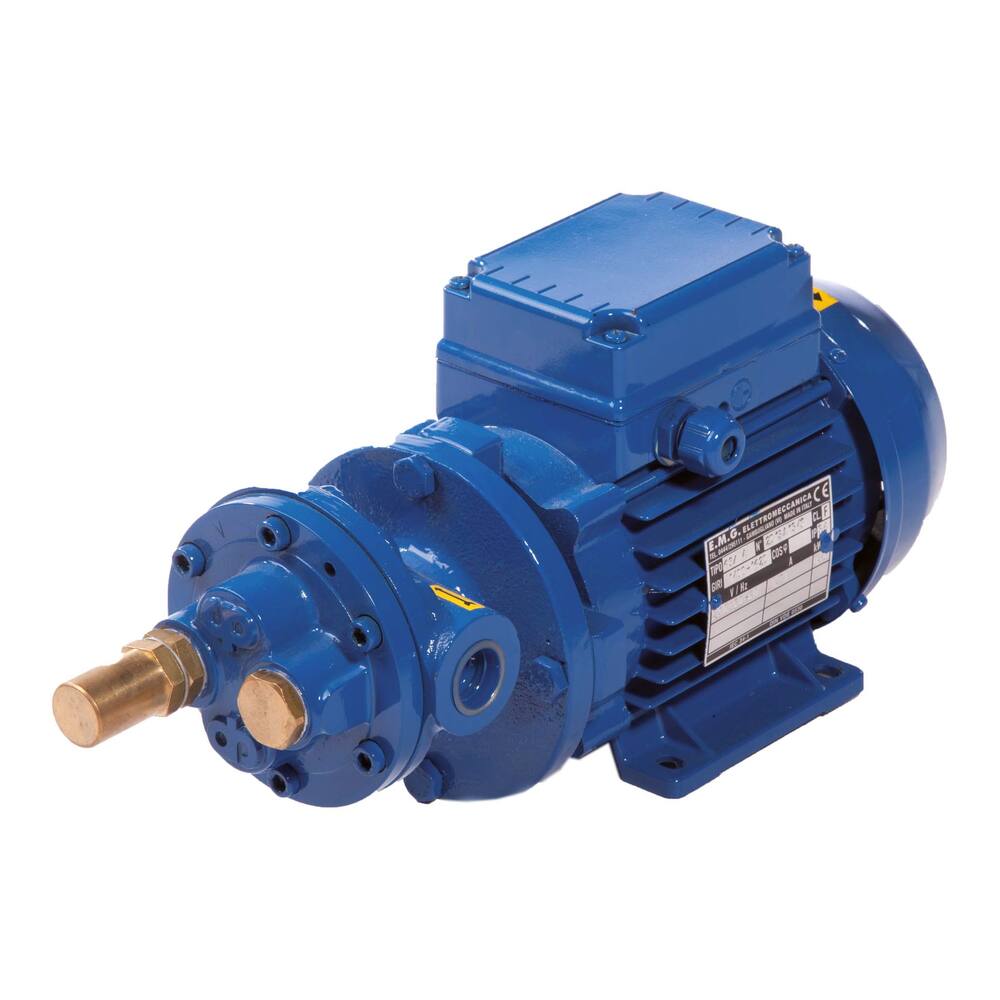

CEM Elettromeccanica Gearwheel Pump Gear 3000/50L-10BT
This gearwheel pump efficiently transports low viscosity lubricating liquids without solids or abrasive components, like diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil. It is equipped with a non-adjusted built-in overflow valve (max 10 bar) and a limited self-priming gearwheel impeller system. The motor is a 400 volt short circuit type with normalized flange.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), NOT ADJUSTED
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 400 volt short circuit motor (normalized flange motors)
- Fuse: NOT inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (also available in bronze or stainless steel for food industry)
- Material pump housing: cast steel* (also available in bronze or stainless steel for food industry)
- Material pump shaft: toughened steel* (also available in bronze or stainless steel for food industry)
- Liquids handled: clean lubricating oil and neutral low viscosity liquids up to 140°C
- Viscosity: max 20 Engler, greatly affects capacity
- Capacities measured with water
- Suction head: depends on viscosity
- Particle size: zero
- Dimensions (LxWxH): 525 x 200 x 260 mm
- Weight: 24 kg
- Amperage: 400 V, 3.6 A
- Shaft power: 1.5 kW, 2 hp, 1400 rpm
- Product code: 93.90.551
- Suction head: 4.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Toothed wheel pump
- Medium: Lubricating oil
- Particle size: 2 mm
- Max discharge head: 100.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 3000 L/hour
- Capacity at 5 meters: 3000 L/hour
-
