ID
1315019
$ 2,458.78
1-2 weeks delivery time
-
+
The CEM Elettromeccanica Gearwheel Pump Gear 2400/40L-10BM is specially built for moving low viscosity lubricating liquids free of solids or abrasives, including diesel and light lubricating oils. This blue gearwheel pump features an inbuilt overflow valve (max 10 bar), limited self-priming, and a 230 V induction motor. It uses steel gearwheels and cast steel housing, supports liquids up to 140°C, and delivers a free flow rate of 2000 L/hour with a suction head of 3.5 m. The pump weighs 21 kg and has a shaft power of 1.1 kW at 1400 rpm.
- Description
- Ask a Question
-

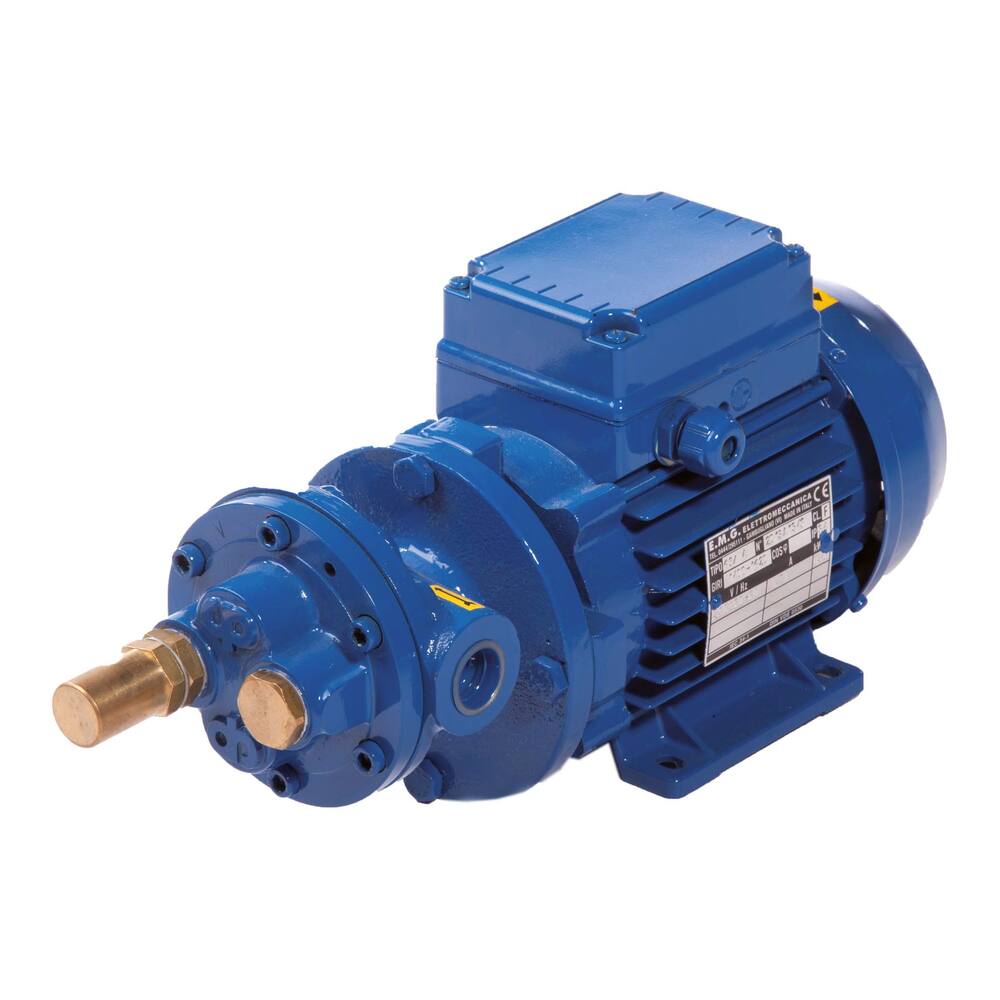

CEM Elettromeccanica Gearwheel Pump Gear 2400/40L-10BM
Specially built for moving low viscosity lubricating liquids without solids or abrasive elements, this pump suits diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), NOT ADJUSTED
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 230 volt induction motor
- Fuse: NOT inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (* Available in bronze or stainless steel for the foodstuffs industry)
- Material pump housing: cast steel*
- Material pump shaft: toughened steel*
- Liquids: clean lubricating oil and neutral low viscosity liquids with lubricating properties, max 140°C
- Viscosity: max 20 Engler; viscosity strongly affects capacity
- Capacities measured with water
- No head flow rate: 2,000 litres per hour (33 litres per minute)
- Suction head depends on viscosity
- Particle size: zero
- Dimensions (L×W×H): 465 × 200 × 260 mm
- Weight: 21 kg
- Amperage: 230 V, 9.3 A
- Shaft power: 1.1 kW, 1.5 hp, 1400 rpm
- Product code: 93.90.540
- Suction head: 3.5 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type detail: Toothed wheel pump
- Medium: Lubricating oil
- Particle size capacity: 2 mm
- Max discharge head: 100.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 2000 L/hour
- Capacity at 5 meter: 2000 L/hour
-
