The CEM Elettromeccanica Bronze Pump AM 65-15T 690V is a robust self-priming centrifugal pump with an open impeller and bronze construction, designed for commercial shipping, coastal vessels, and large pleasure crafts, also suitable for fire extinguishing and cooling medium roles. It handles slightly contaminated and sea water up to 70°C, operates at 400/690 volts, delivers 81,000 liters per hour at 25 meters head, with a maximum discharge head of 48 meters, and weighs 170 kg.
- Description
- Ask a Question
-

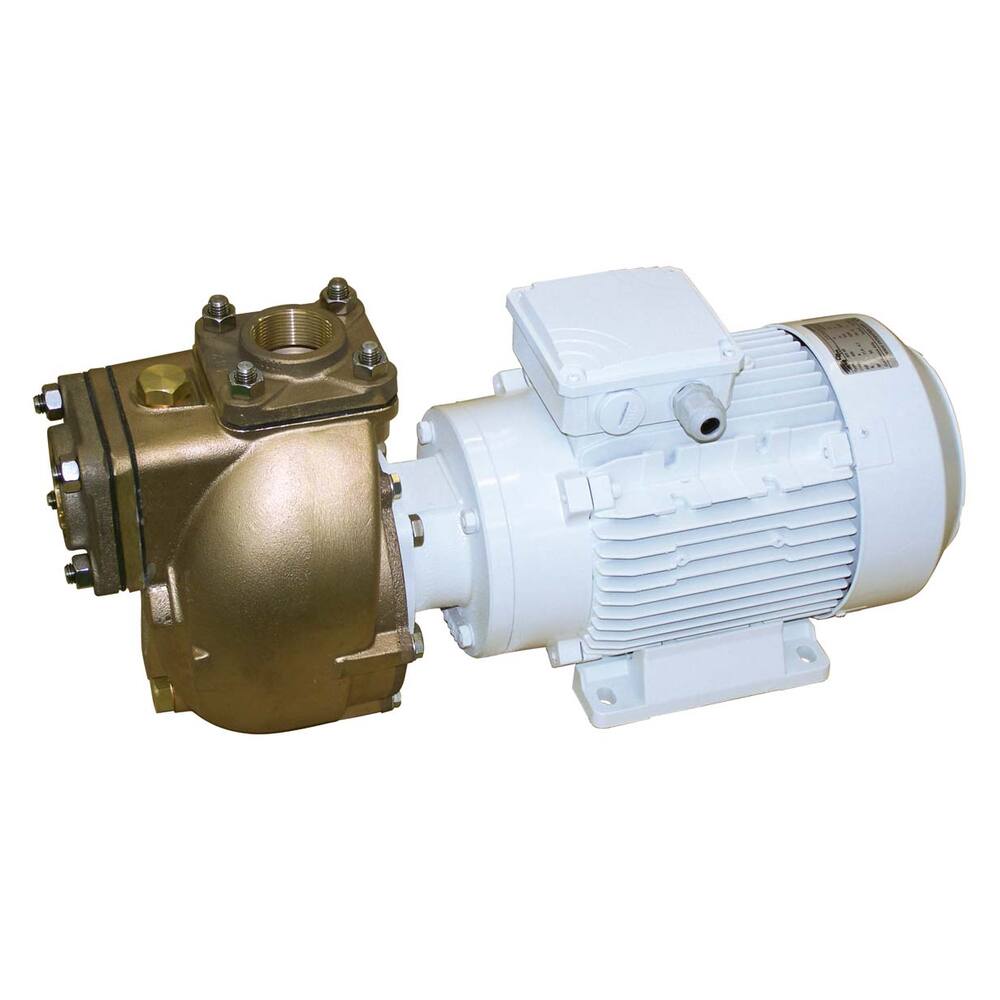

CEM Elettromeccanica Bronze Pump AM 65-15T 690V
Built for commercial shipping, coastal vessels, and large pleasure crafts, this robust pump also fits fire extinguishing and cooling medium roles aboard seagoing vessels.
- Type: AM
- Colour: bronze and white
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT built-in
- Shaft seal: ceramic on carbon mechanical seal with NBR elastomers
- Material impeller: bronze
- Material pump housing: bronze
- Material pump shaft: stainless steel AISI 316
- Liquids handled: slightly contaminated water, sea water, etc., max temperature 70°C
- Insulation class: IP55
- Flow rates by head:
- 25 m: 81,000 L/h
- 30 m: 66,000 L/h
- 35 m: 54,000 L/h
- 40 m: 40,000 L/h
- 45 m: 22,500 L/h
- Connection discharge: DN65 flange with 2.1/2" internal thread
- Connection suction: DN80 flange with 3" internal thread
- Dimensions (L×W×H): 892 × 350 × 382 mm
- Weight: 170 kg
- Amperage 400 V: 21.0 A
- Amperage 690 V: 12.1 A
- Shaft power: 11.0 kW, 15.0 hp, 2800 rpm
- Product code: 92.15.150
- Suction head: 7.5 m
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: 3"
- Model: Bronze pump housing
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 11 mm
- Max discharge head: 48.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 84,000 L/h
- Capacity at 5 m: 84,000 L/h
-
