The CEM Elettromeccanica Bronze Pump AM 40-4T 400V is a self-priming centrifugal pump with an open impeller and bronze construction, designed for deck wash, bilge, fire extinguishing, and cooling medium duties on commercial vessels, large pleasure crafts, and coastal ships. It handles slightly contaminated and sea water up to 70°C, operates at 400 volts, delivers 22,800 liters per hour at 10 meters head, with a maximum discharge head of 28 meters, and weighs 40 kg.
- Description
- Ask a Question
-

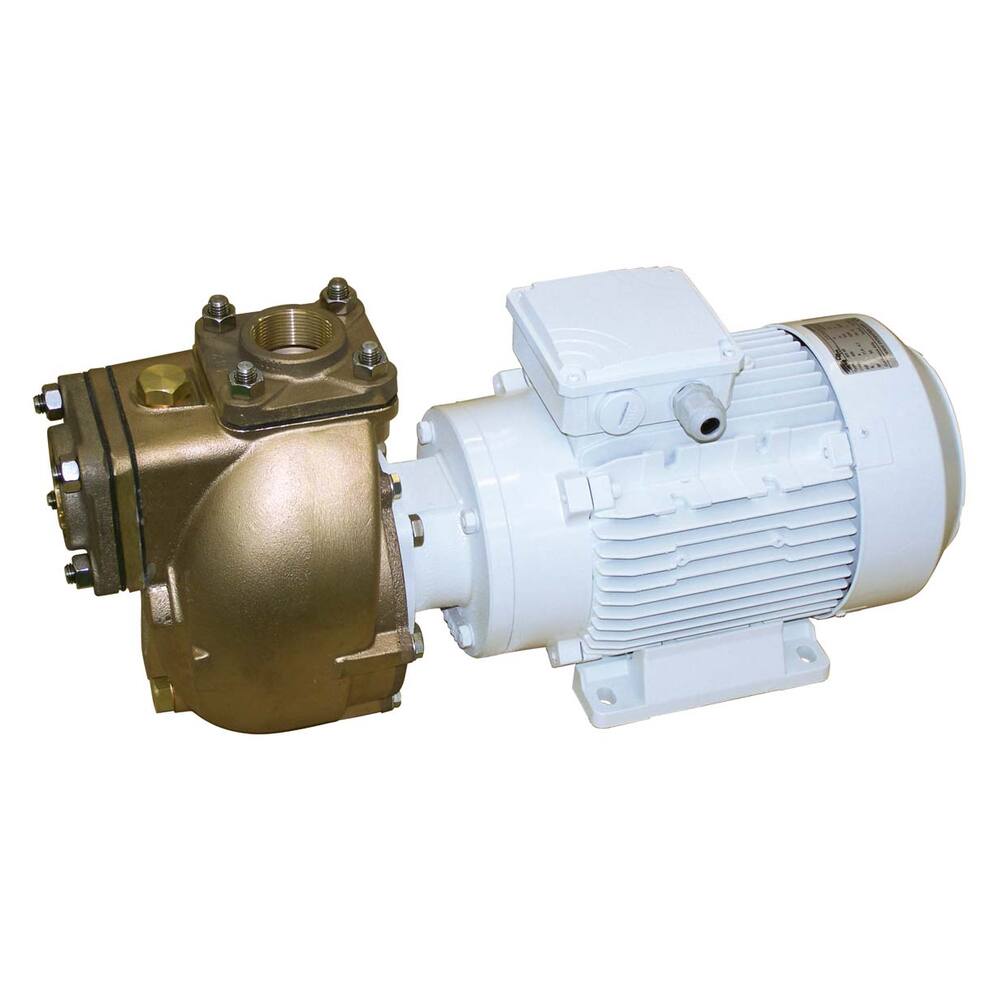

CEM Elettromeccanica Bronze Pump AM 40-4T 400V
Designed for deck wash and bilge tasks on commercial vessels, large pleasure crafts, and coastal ships, this pump also serves well as a fire extinguishing and cooling medium pump for seagoing ships.
- Type: AM
- Colour: bronze and white
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT built-in
- Insulation class: IP55
- Shaft seal: ceramic on carbon mechanical seal with NBR elastomers
- Material impeller: bronze
- Material pump housing: bronze
- Material pump shaft: stainless steel AISI 316
- Liquids handled: slightly contaminated water, sea water, etc., max temperature 70°C
- Flow rates by head:
- 10 m: 22,800 L/h
- 15 m: 18,000 L/h
- 20 m: 13,800 L/h
- 25 m: 6,000 L/h
- Connection discharge: DN40 flange with 1.1/2" internal thread
- Connection suction: DN50 flange with 2" internal thread
- Dimensions (L×W×H): 523 × 206 × 240 mm
- Weight: 40 kg
- Amperage: 6.7 A
- Shaft power: 3.0 kW, 4.0 hp, 2800 rpm
- Product code: 92.15.044
- Suction head: 4.5 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 2"
- Model: Bronze pump housing
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 5 mm
- Max discharge head: 28.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 27,000 L/h
- Capacity at 5 m: 27,000 L/h
-
