ID
1315008
$ 6,363.49
1-2 weeks delivery time
-
+
The CEM Elettromeccanica Bronze Pump AM 50-7,5T 400V is a self-priming centrifugal pump with an open impeller and bronze housing, intended for deck wash, bilge, fire extinguishing, and cooling duties on commercial, coastal, and pleasure vessels. It handles slightly contaminated and sea water up to 70°C, operates at 400 volts, delivers 48,000 liters per hour at 15 meters head, with a maximum discharge head of 36 meters, and weighs 63 kg.
- Description
- Ask a Question
-

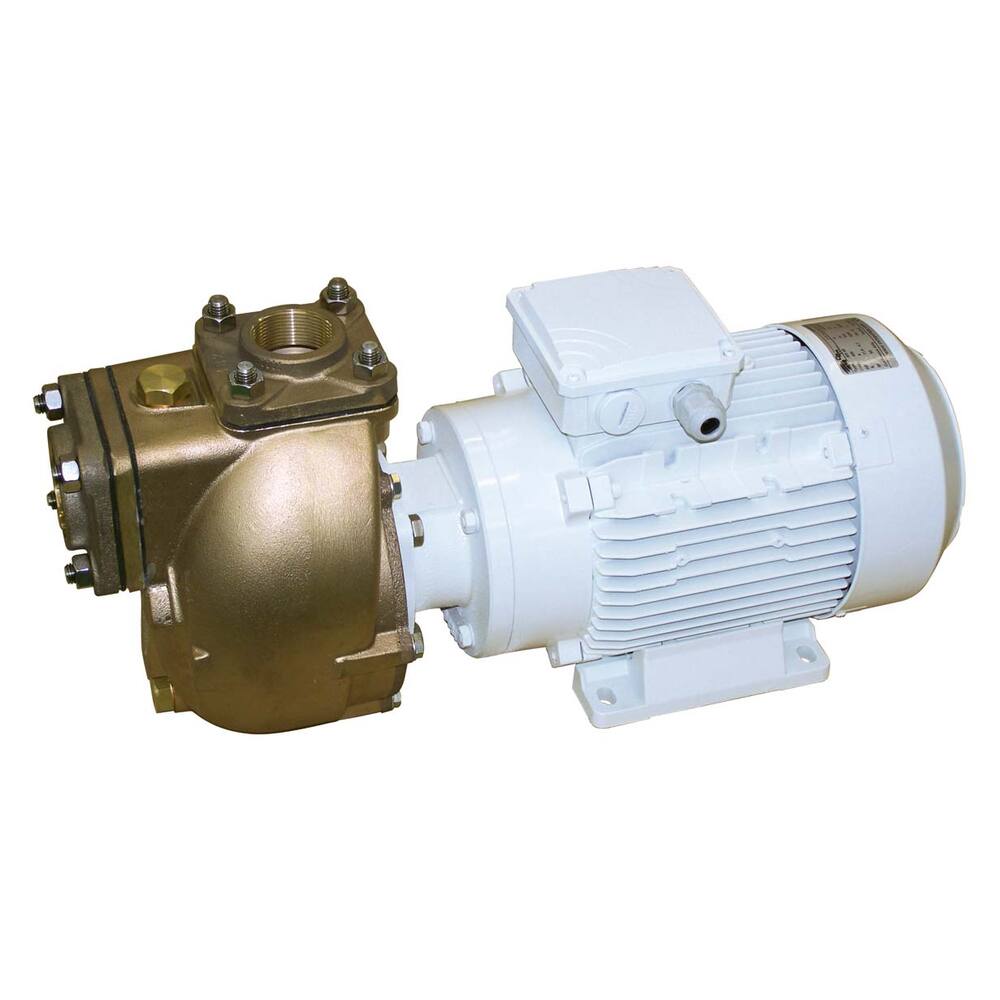

CEM Elettromeccanica Bronze Pump AM 50-7,5T 400V
This pump is intended for deck wash and bilge operations on commercial and coastal vessels, as well as large pleasure crafts. It is also suitable for fire extinguishing and cooling duties on seagoing ships.
- Type: AM
- Colour: bronze and white
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT built-in
- Shaft seal: ceramic on carbon mechanical seal with NBR elastomers
- Material impeller: bronze
- Material pump housing: bronze
- Material pump shaft: stainless steel AISI 316
- Liquids handled: slightly contaminated water, sea water, etc., max temperature 70°C
- Insulation class: IP55
- Flow rates by head:
- 15 m: 48,000 L/h
- 20 m: 42,000 L/h
- 25 m: 33,000 L/h
- 30 m: 27,000 L/h
- 35 m: 15,000 L/h
- Connection discharge: DN50 flange with 2" internal thread
- Connection suction: DN65 flange with 2.1/2" internal thread
- Dimensions (L×W×H): 567 × 236 × 288 mm
- Weight: 63 kg
- Amperage: 12.3 A
- Shaft power: 5.5 kW, 7.5 hp, 2800 rpm
- Product code: 92.15.075
- Suction head: 5.5 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2.1/2"
- Model: Bronze pump housing
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 8 mm
- Max discharge head: 36.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 48,000 L/h
- Capacity at 5 m: 48,000 L/h
-
