The CEM Elettromeccanica Gearwheel Pump Gear 300/5L-10BM is a blue gearwheel pump designed for transporting low viscosity lubricating liquids like diesel and light oils up to 140°C. It includes an inbuilt overflow valve (max 10 bar), a 230 V induction motor, and a carbon on hard metal mechanical shaft seal. The pump has a cast steel housing, steel gearwheels, and delivers 300 litres per hour at 5 metres head, weighing 11 kg.
- Description
- Ask a Question
-

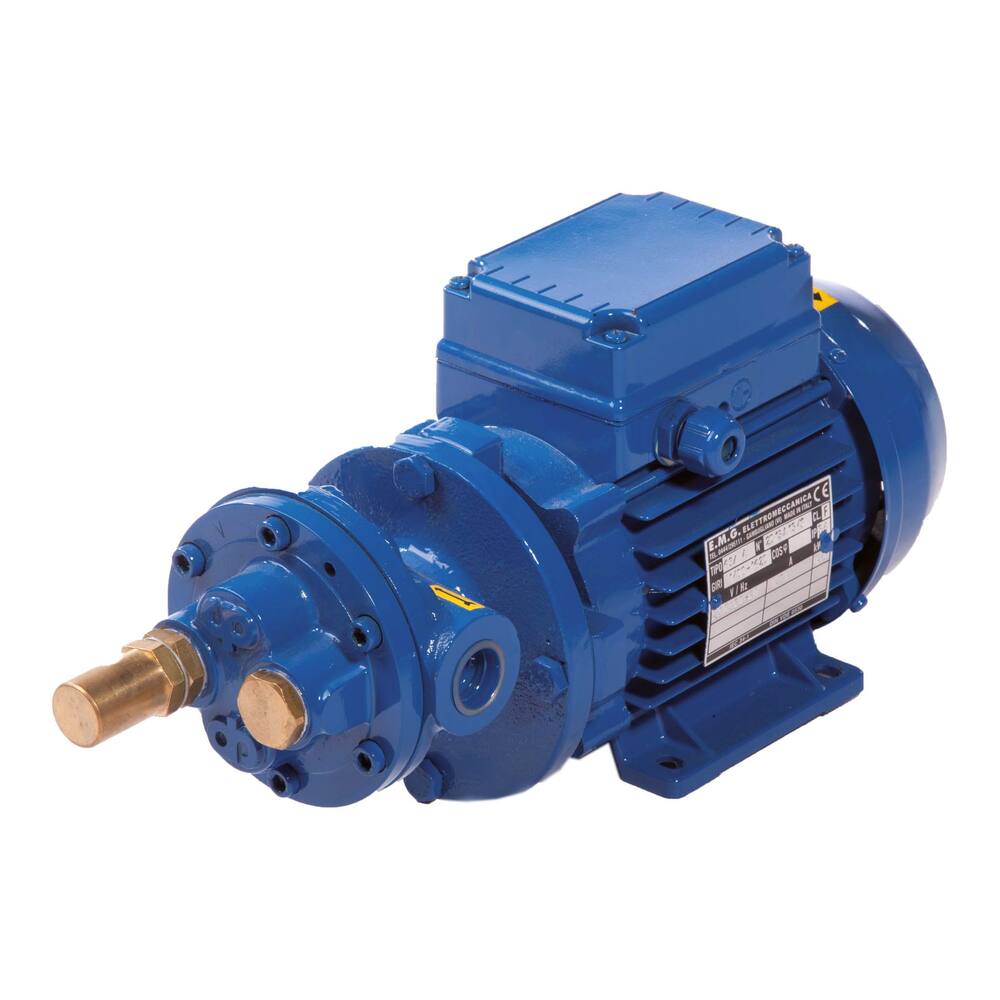

CEM Elettromeccanica Gearwheel Pump Gear 300/5L-10BM
This pump is designed for transporting low viscosity lubricating liquids free of solids or abrasive particles. Ideal for diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil, it offers reliable performance for clean, lubricating fluids up to 140°C.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), not adjusted
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 230 volt induction motor
- Fuse: not inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (available in bronze or stainless steel for food industry)
- Material pump housing: cast steel* (available in bronze or stainless steel for food industry)
- Material pump shaft: toughened steel* (available in bronze or stainless steel for food industry)
- Liquids: clean lubricating oil and neutral low viscosity liquids with lubricating properties
- Maximum temperature: 140°C
- Viscosity: maximum 20 Engler (strong effect on capacity)
- Capacities measured with water
- Suction head: depends on viscosity
- Particle size allowed: zero
- Dimensions (LxWxH): 390 x 150 x 226 mm
- Weight: 11 kg
- Amperage: 230 V, 2.4 A
- Shaft power: 0.25 kW, 0.35 hp, 1400 rpm
- Product code: 93.90.505
- Suction head: 1.0 m
- Pipe diameter pressure: 1/2"
- Pipe diameter suction: 1/2"
- Pump type: toothed wheel pump
- Medium: lubricating oil
- Particle size: 2 mm
- Max discharge head: 100.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 300 L/hour
- Capacity at 5 meter: 300 L/hour
-
