ID
1315013
$ 1,767.71
1-2 weeks delivery time
-
+
The CEM Elettromeccanica Gearwheel Pump Gear 600/10L-10BM is a blue gearwheel pump suitable for low viscosity lubricating liquids such as diesel and light oils, equipped with a 230 V induction motor and an inbuilt overflow valve (max 10 bar). It has a cast steel housing, steel gearwheels, and a carbon on hard metal mechanical shaft seal. The pump delivers 600 litres per hour at 5 metres head, weighs 14 kg, and operates reliably under demanding conditions.
- Description
- Ask a Question
-

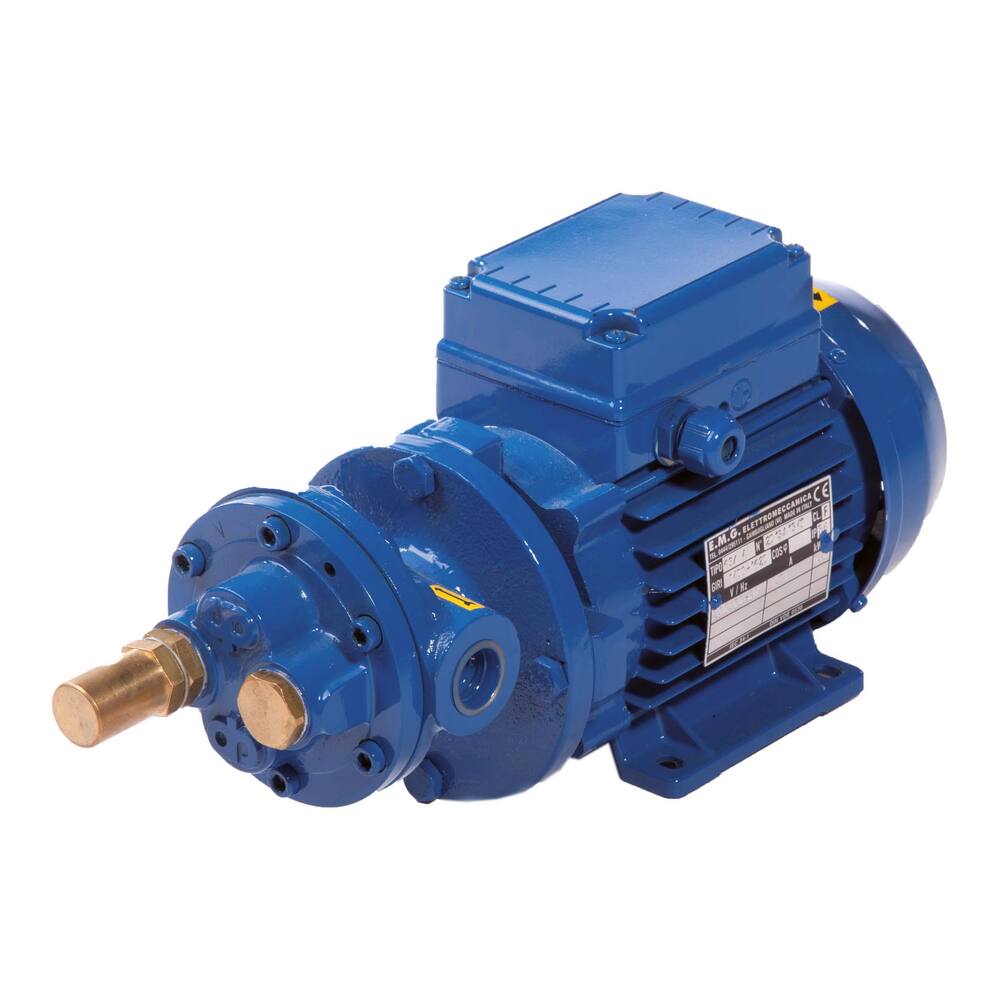

CEM Elettromeccanica Gearwheel Pump Gear 600/10L-10BM
This pump is suitable for transporting low viscosity lubricating liquids without solids or abrasive materials such as diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil. It is equipped with a 230 volt induction motor and designed for reliable operation under demanding conditions.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), not adjusted
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 230 volt induction motor
- Fuse: not inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (bronze or stainless steel optional for food industry)
- Material pump housing: cast steel* (bronze or stainless steel optional for food industry)
- Material pump shaft: toughened steel* (bronze or stainless steel optional for food industry)
- Liquids: clean lubricating oil and neutral low viscosity liquids with lubricating properties
- Maximum temperature: 140°C
- Viscosity: maximum 20 Engler (strong effect on capacity)
- Capacities measured with water
- Suction head: depends on viscosity
- Particle size allowed: zero
- Dimensions (LxWxH): 410 x 155 x 226 mm
- Weight: 14 kg
- Amperage: 230 V, 2.9 A
- Shaft power: 0.37 kW, 0.5 hp, 1400 rpm
- Product code: 93.90.510
- Suction head: 2.0 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 3/4"
- Pump type: toothed wheel pump
- Medium: lubricating oil
- Particle size: 2 mm
- Max discharge head: 100.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 600 L/hour
- Capacity at 5 meter: 600 L/hour
-
