ID
1315015
$ 1,905.56
1-2 weeks delivery time
-
+
The CEM Elettromeccanica Gearwheel Pump Gear 900/15L-10BM is suitable for moving low viscosity lubricating liquids without solids or abrasives, including diesel and spindle oils. This blue gearwheel pump includes an inbuilt overflow valve (max 10 bar), limited self-priming, and a 230 V induction motor. It has steel gearwheels and cast steel housing, supports liquids up to 140°C, and delivers a free flow rate of 1000 L/hour with a suction head of 2.5 m. The pump weighs 15 kg and has a shaft power of 0.55 kW at 1400 rpm.
- Description
- Ask a Question
-

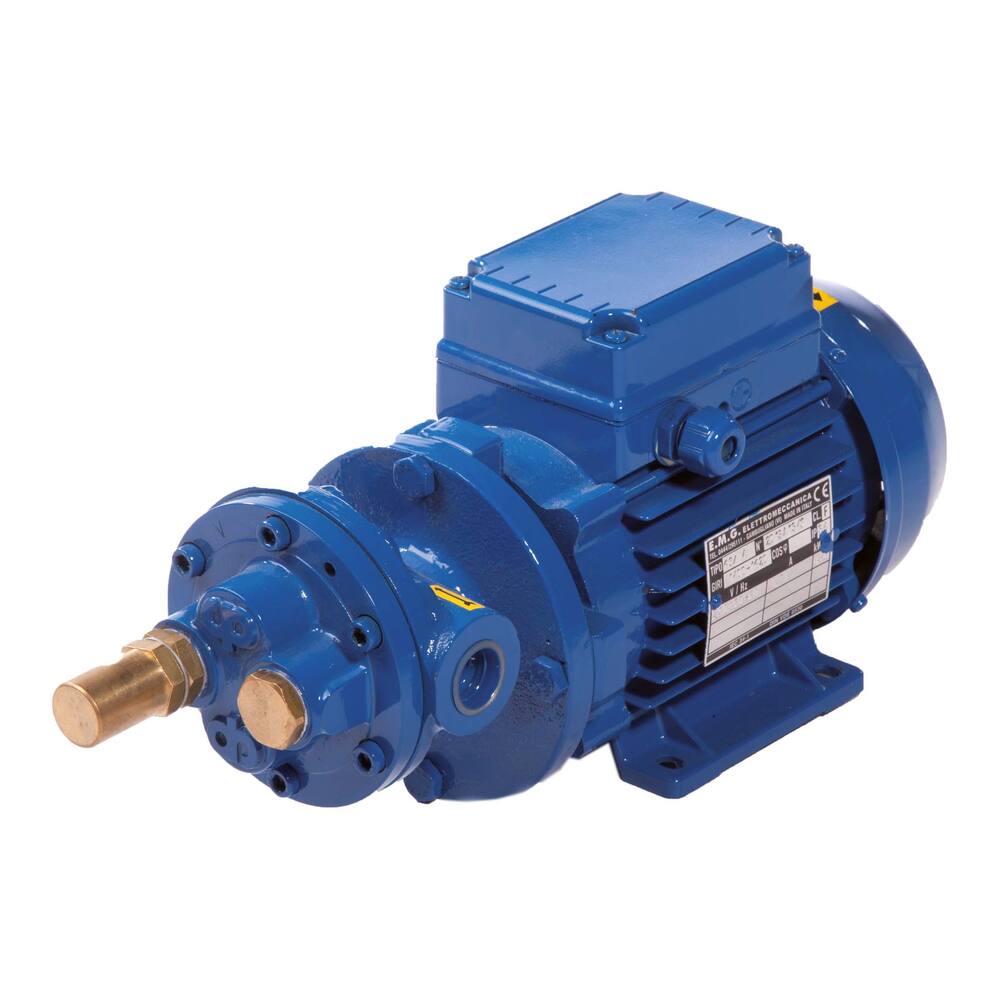

CEM Elettromeccanica Gearwheel Pump Gear 900/15L-10BM
This pump is suitable for moving low viscosity and lubricating liquids that contain no solids or abrasive materials, such as diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), NOT ADJUSTED
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 230 volt induction motor
- Fuse: NOT inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (also available in bronze or stainless steel for foodstuffs industry)
- Material pump housing: cast steel* (also available in bronze or stainless steel for foodstuffs industry)
- Material pump shaft: toughened steel*
- Liquids handled: clean lubricating oil and neutral low viscosity liquids with lubricating properties, max 140°C
- Viscosity: maximum 20 Engler, significantly affecting capacity
- Capacities measured with water
- Suction head depends on viscosity
- Particle size: zero
- Dimensions (LxWxH): 450 x 155 x 226 mm
- Weight: 15 kg
- Amperage: 230 V, 4.5 A
- Shaft power: 0.55 kW, 0.75 hp, 1400 rpm
- Product code: 93.90.515
- Suction head: 2.5 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 3/4"
- Pump type: Toothed wheel pump
- Medium: Lubricating oil
- Particle size allowed: 2 mm
- Max discharge head: 100.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: not included
- Free flow rate: 1000 L/hour
- Capacity at 5 meter head: 1000 L/hour
-
